Product Details
|
|
| |
Item No | 9110A50-01 | 9110B100-01 | 9110C150-01 |
Power | 50W | 100W | 150W |
Lamp Size | 485*195*165mm | 695*265*165mm | 860*300*165mm |
Lamp efficiency | 100-110lm/w | ||
Light source | Bridgelux Chip | ||
Light degradation rate | 25000h ≤ 30% | ||
Color rendering index | Ra>85 | ||
| Beam angle | 120° | ||
PF | PF≥0.93 | ||
| Rated life | 50000h | ||
| Color temperature | 3000-7000K | ||
| Working temperature | -20~+50°C | ||
| Input Voltage | AC90-260V 12/24v | ||
| IP code | IP65 | ||
Warranty | 3yesrs | ||
product description

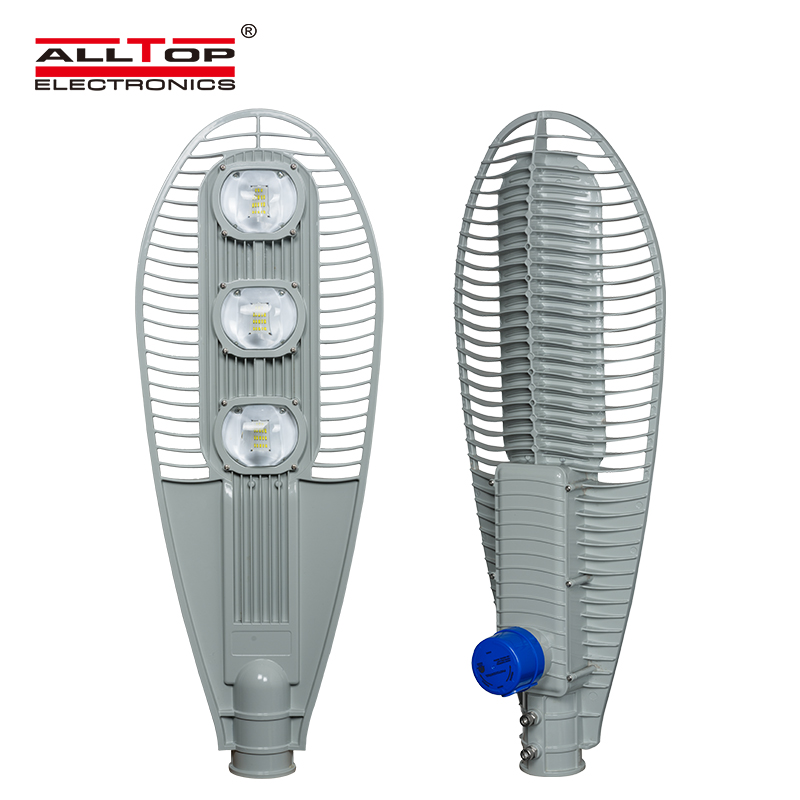

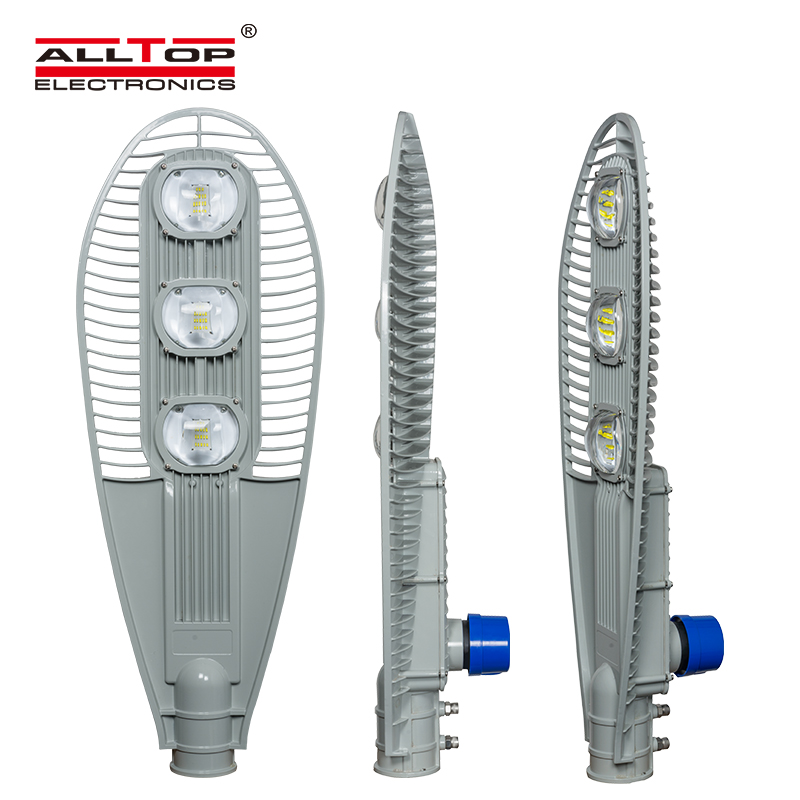

LED street light
High lumen, high quality, High brightness, low consumption, green for environment. apply to the square,amusement park,general road lighting,residential area, yard park, Industrial area, petrol station, parking Lot.etc..
High Efficacy LED Source
LED Street Light are using Bridgelux COB source, providing high lumen efficiency, long-lasting stability and splendid sight.
High-Efficiency Heat Dissipation
Offers high-efficiency heat dissipation
Airon exchange in the body
Reduce the LED and drive operating temperature.
Built-in LED driver with IC ensure stability of light that it can work efficiently under .
High-quality ALLTOP Series waterproof LED driver
Optimal stability performance and lifespan.
Airon exchange in the body
Reduce the LED and drive operating temperature.
Built-in LED driver with IC ensure stability of light that it can work efficiently under .
High-quality ALLTOP Series waterproof LED driver
Optimal stability performance and lifespan.
High Quality Aluminum Alloy Design
High Quality Aluminum Alloy Design has an IP65 Waterproof rating
Light body is made of good quality aluminum alloy with painting or on surface, ambiguity and unique design,excellent heat dissipation.
Light body is made of good quality aluminum alloy with painting or on surface, ambiguity and unique design,excellent heat dissipation.
Photo Sensor
High Quality Aluminum Alloy Design has an IP65 Waterproof rating
◪1.Using high quality aluminum for production,fine workmanship,elegant appearance
◪2.Low power consumption , high luminous efficiency and energy saving
◪6.High heat conductivity, low luminous decay, pure light color and no ghosting.
◪7.Integrative design for heat sink and housing; The LED is closely connected to the surface.
◪8.The heat From the LED is removed through the heat dissipation wing and also by air ventilation.
◪9.The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.
Packing Adventages
Attached installation manual
Match installation screw
We use K=K strong yellow carton outer package
Printing the product pictures on the boxes
Match installation screw
We use K=K strong yellow carton outer package
Printing the product pictures on the boxes
Applications
LED street lighting, Private Road Lighting, Farm & Ranch Lighting, Wildlife Area Lighting, Perimeter Security Lighting, Park Lighting, Gate Lighting, Yard Lighting, Fence Lighting, Campus Lighting, Boat Dock Lighting, Remote Area Lighting, Military Base Lighting, Jogging and Bike Path Lighting.
