Product Details

Overview

Quick Details

Type:: Pressure Steam Sterilization Equipments

Brand Name:: BIOBASE

Model Number:: BKM-Z16B

Place of Origin:: Shandong, China

Instrument classification:: Class I

Product name:: autoclave Pressure Steam Sterilization Equipments

Certificates:: CE/ISO13485/ISO9001

Capacity:: 16L

Sterilization Temp.:: 121℃,134℃

Special Program:: HIV, HBV long-sterilization program

Drying System:: Vacuum drying system

Display:: LED display

Water tank capacity:: 4L

Water Consumption:: 0.16L~0.18L in one cycle

Tray Holder:: 3 pcs SS trays on SS shelf

Supply Ability

Supply Ability:: 200000 Set/Sets per Month

Packaging & Delivery

Packaging Details: carton package

Port: qingdao

China best supplier

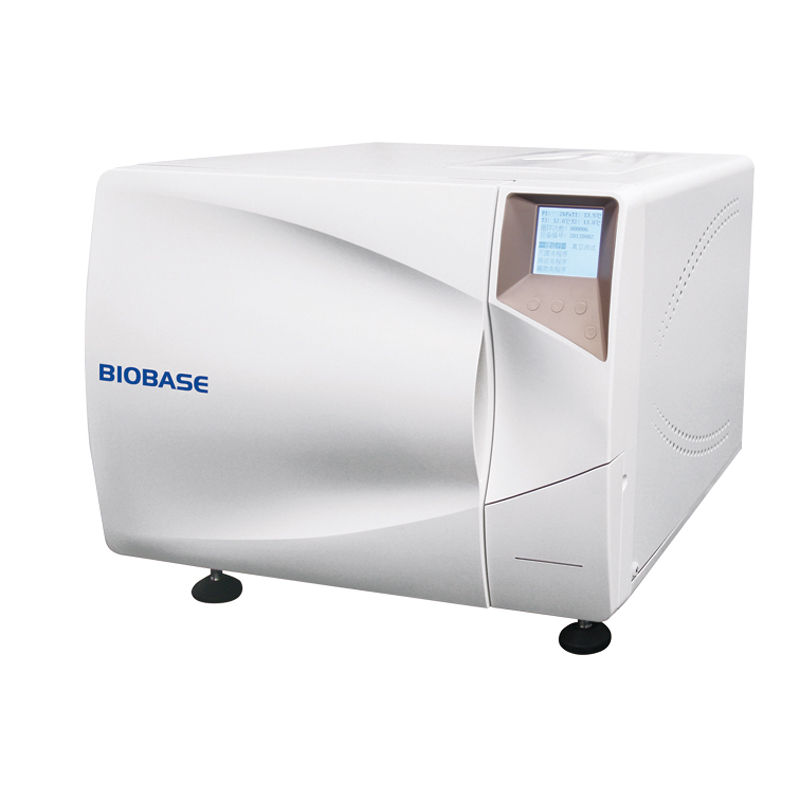

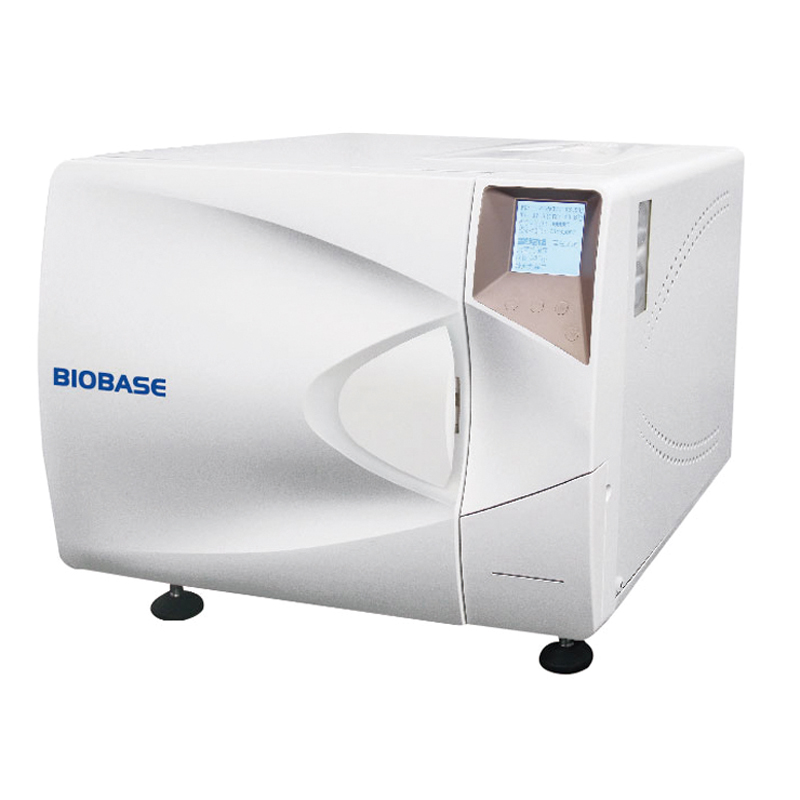

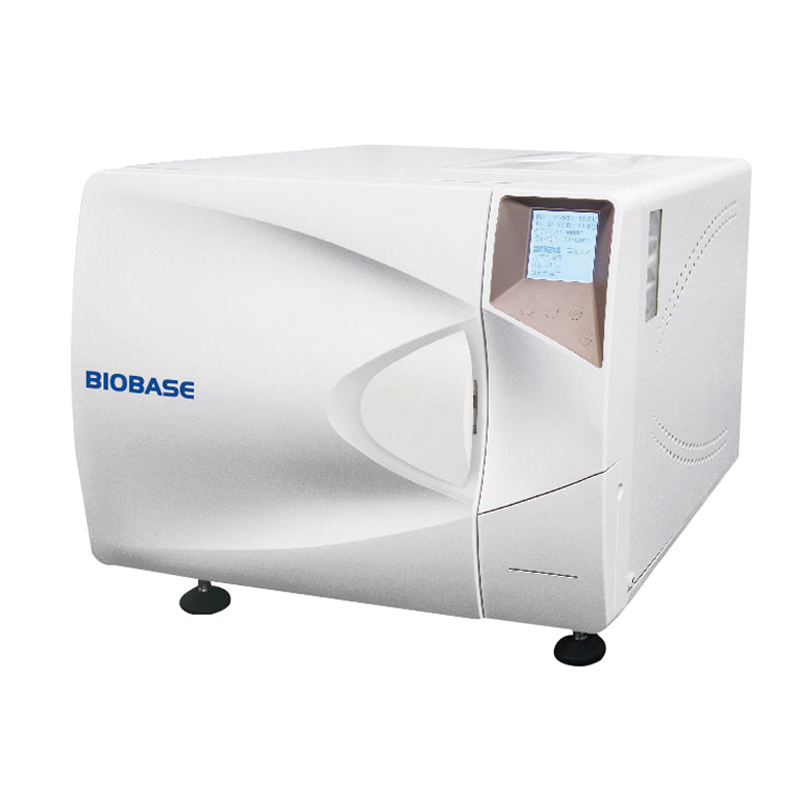

8L /16L/18L/24L bench top dental small autoclave Pressure Steam Sterilization Equipments class B series

Introduction of autoclave Pressure Steam Sterilization

Features:

1. Build-in open type water tank

The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected

with water.

2. High-efficiency ultimate vacuum

The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.

3. Large LCD display for BKM-Z18/24B
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.

It is convenient for customers to observe the sterilizer running status.

4. Multiple program types

The system has various programs that include: packed items, unpacked items, custom program, rapid program,

BD testing program, vacuum testing program, preheat program and drying program.

5. Standard USB port for BKM-Z18/24B

Users can store the sterilization data with USB disk.

6. Optional mini printer can be attached to record the process of sterilization.

Parameter of autoclave Pressure Steam Sterilization

Model	BKM-Z16B	BKM-Z18B	BKM-Z24B
Capacity	16L	18L	24L
Sterilization Class	Class B (according to EN 13060 standard)
Sterilization Temp.	121℃,134℃
Special Program	HIV, HBV long-sterilization program
Drying System	Vacuum drying system
Display	LED display	LCD display
Testing System	B&D Test Vacuum Test Helix Test
Control Precision	Temperature: 1℃ Pressure: 0.1bar
Sterilization Data	Optional Mini printer Standard USB port for BKM-Z18/24B
Safety System	Hand lock door Pressure lock system Relief valve in case of over pressure Pressure or temperature over load protection Alarm for system failure, finish reminding, water level warning
Water Supply System	Build-in water tank, easy to clean
Water tank capacity	4L
Water Consumption	0.16L~0.18L in one cycle
Tray Holder	3 pcs SS trays on SS shelf
Chamber	Medical stainless steel 304 unibody structure Max working pressure:2.3bar Min working pressure: -0.9bar Max temperature: 145℃
Ambient Temp.	5~40℃
Noise	<50dB
Power Supply	110/220V±10%, 60/50Hz
Power Consumption	1800W	1750W	1850W
Chamber Size(mm)	φ240*360	φ247*360	φ247*470
External Size(mm)	445450395	600495410	700495410
Packing Size(mm)	670550500	720550560	760550560
Gross Weight(kg)	52	5	60
