Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-24-302

Protection Level:: IP40

Max. Current:: 3A

Max. Voltage:: 250VAC

Item number:: Guitar Foot Pedal Switch

Function:: Latching

Body Color:: Blue, Green, Black, Brown, Red

Button Color:: Metal

Insulation Resistance:: 100MΩ Min

Contact Resistance:: 100mΩ Max

Electric Life:: 50,000 cycles

Operation Force:: 0.25N Max

Operation Position:: 14.6±0.5mm

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X10 cm

Gross weight per batch:: 1.5 kg

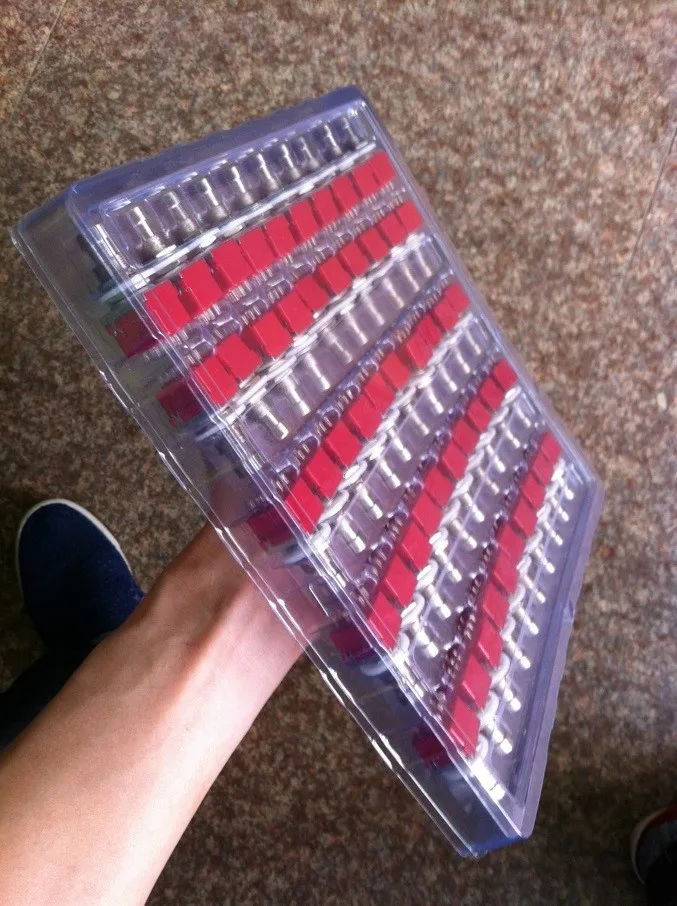

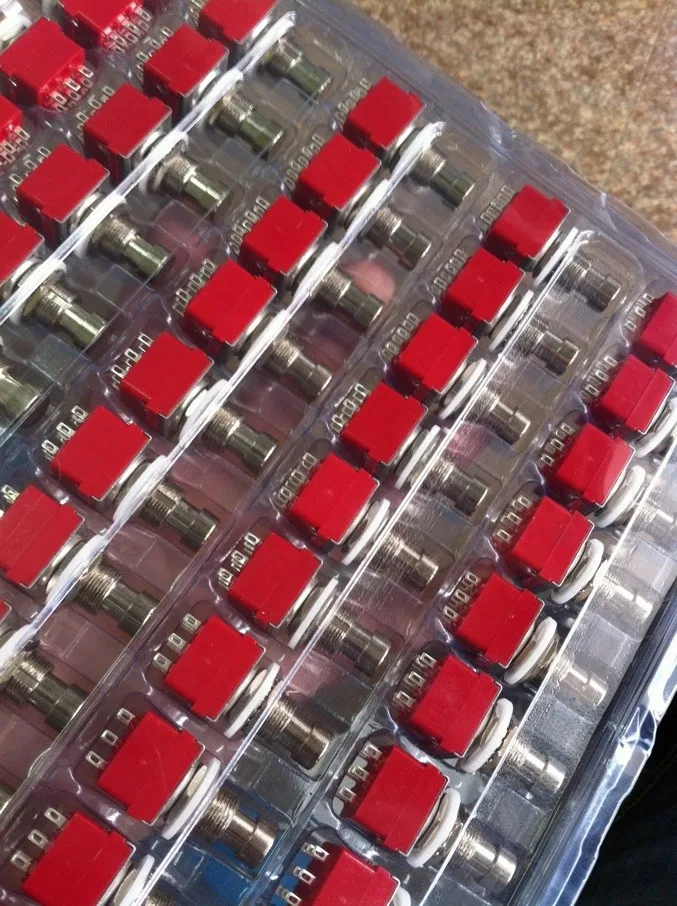

Package Type:: 9PIN Latching Soldering type ON-ON Guitar Pedal Switches is 50pcs/box.

Picture Example:

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	9PIN Latching Soldering type ON-ON Guitar Pedal Switches
Rating	3A 250VACGuitar Pedal Switches
IP Class	IP40
Function	Latching
Button Color	Metal
Contact Resistance	100 mΩ max
Insulation Resistance	≥100MΩ
