Product Details
Packaging & Delivery
Packaging Details: paper carton 1 piece/box
3-15 days
Delivery Detail: Shipped in 15 days after payment
Specification

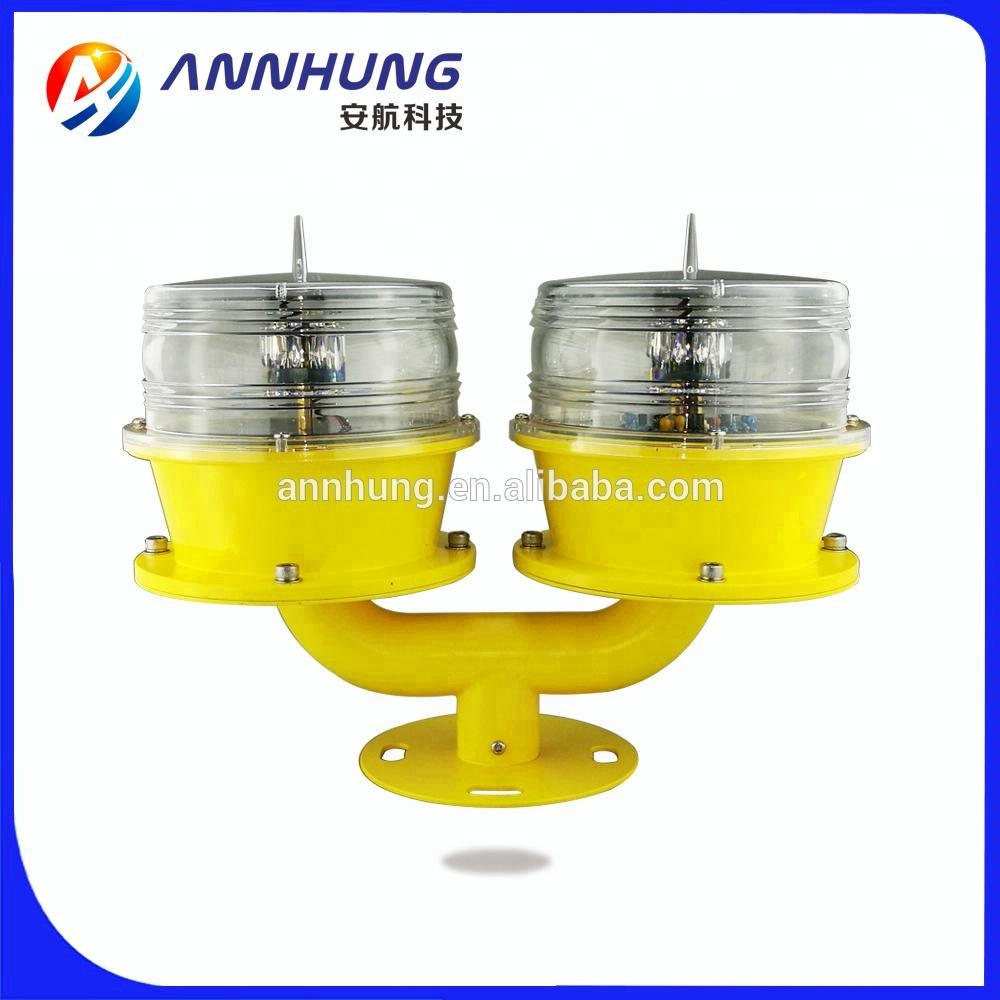

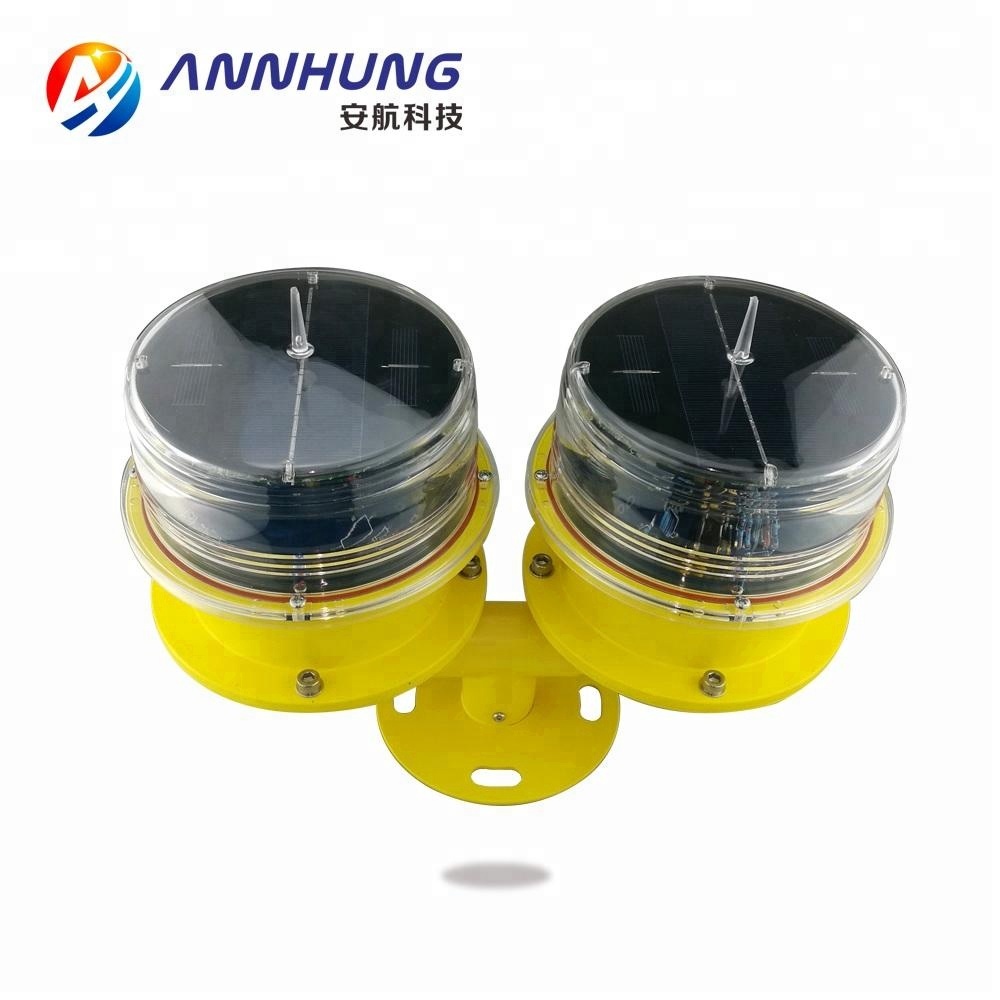

AH-LS-LD Low Intensity Solar Powered Double Aviation Obstruction Light / Aircraft Warning Light
Aviation Obstruction Light
Aviation Double Light
Obstruction Light
Aviation Warning Light
compliant with ICAO,FAA,CAAC
Applications
Scope of Application
AH-LS-LD Low-intensity Double Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Main Parameter
| Description | Parameter |
| Mode | AH-LS-LD |
| Light intensity | ≥ 10cd(Steady-burning); ≥32.5cd(Flashing mode) |
| Working mode | Steady-burning mode or Flashing mode(20-60times/minute) |
| Light source | LED,100,000hours service life |
| Working way of two lights | Two light flashing by Main-standby way, two lights flashing at the same or two lights flashing 1.5 second interval. (Flash mode, three ways) Two light working by Main-standby way, two lights working at the same time. (Steady-burning way, two ways) |
| Operating voltage | DC 6.4V (Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Material | |
| Housing | PC |
| Base | SUS304 stainless steel |
| Autonomy(without sunlight) | at least 5 days(Option 15days) |
| Power Consumption | 3W |
| Overall Size(mm) | 330 by 158 by 340 |
| Installation Size(mm) | 3/4inch or 100 by 100 by 12 |
| Weight | 3Kg |
| Emitting Color | Red |
| Ambient Temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection Standard | IP65 |
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
