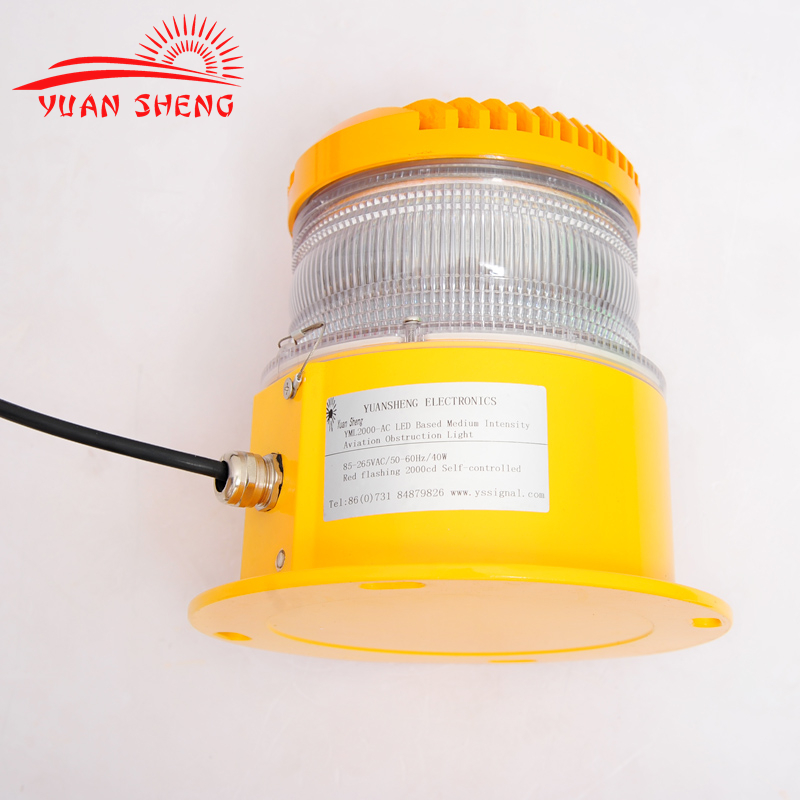

Automatically medium intensity/L864/L866 with photocell fix /steady Aviation,Obstruction,aircraft,obstacle light/lamp/bulbs

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-10-17 06:20

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Type:

Array

Product Details

Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC110V ~ AC240V /DC24V~DC60V
Lamp Power(W):
34
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
100
Color Temperature(CCT):
Red
Beam Angle(°):
360 Horizontal Beam Angle
IP Rating:
IP67
Certification:
CE, EMC, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
LED
Light Source:
LED
Place of Origin:
Hunan, China
Brand Name:
YUANSHENG
International standard:
ICAO: Meduim Intensity Light Type B,Meduim Intensity Light Type C
Vertical degree:
Color:
Red, Amber, Green, Blue, White
Material:
Base:Aluminum Alloy Housing:PC
Applications:
gsm towers,chimneys...
Lens color:
NO
N.W.:
4.5Kg
G.W.:
5.5Kg
G.D.:
27.3*25.8*27.5 cm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons, wooden cases
Port
Shenzhen/ Shanghai port

Company Information

Hunan Yuansheng Electronic Co., Ltd is located in Changsha, Hunan Province. The Company was started by a group of ambitious young men who mainly specialize in the sales and manufacturing of signal lighting. We pull together to do an in-depth research on the development of the very products, hoping to grasp the state-of-the-art technology in this area and to fully satisfy the market demand. We offer a variety of alternatives, such as single obstruction light, double obstruction light, intensity obstruction light, obstruction control box and solar obstruction light. The ultimate goal for us is to draw in consumers as many as possible with our safety-guaranteed merchandises. Hope you will be one of them! Our company will continue to pursue the aim of" credibility win customers, support enterprise quality" corporate purposes.



 Specifications

Description

Parameter

International standard

   ICAO medium intensity type B & type C

 FAA AC No. 150/5345-43F,2006

   FAA-L864

Light source

LED

Supply voltage

AC110V ~ AC240V /DC24V~DC60V

Color

Red / White

Power consumption

34W ( steady burning )

Intensity

2000cd±25%

Vertical degree

Horizontal degree

360°

Flashing rate

30FPM(20/60FPM/steady burning can be customized

Flashing duration

150±10ms

LED life

≥100,000h

On/Off level

50lux

Customized

GPS/ photocell

Ambient temperature

-40℃ ~ +60℃

Humidity

10% ~ 95% (no coagulation)

IP Protection

IP67

Material

Base:Aluminum alloy  Housing:PC

Warranty

5years
