Aviation Obstruction Light Medium-intensity Dual LED ICAO Certified CS-86/R

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Guangzhou

  • Categories:LED Professional Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:46

Other Products
Low-intensity Type A Solar Aviation Obstruction Light CS-810/S
¥Negotiable 24Views

Low-intensity Type A Solar A

Recommend
Solar Aviation Obstruction Light Low-intensity Type B LED ICAO Certified CS-810/S
¥Negotiable 19Views

Solar Aviation Obstruction L

Recommend
Low-intensity Type A Double Solar Aviation Obstruction Light CS-810/T
¥Negotiable 22Views

Low-intensity Type A Double

Recommend
Solar Aviation Obstruction Light Low-intensity Type B Double LED ICAO Certified CS-810/T
¥Negotiable 19Views

Solar Aviation Obstruction L

Recommend
Medium-intensity Type B Solar Aviation Obstruction Light CS-864/S
¥Negotiable 20Views

Medium-intensity Type B Sola

Recommend
You may like
¥Negotiable 14Views

10W Ultraviolet Germicidal Tube 15mm GPH212T5L

Recommend
¥Negotiable 14Views

Hospital Air Sterilizing Lamp UVC-36W

Recommend
¥Negotiable 10Views

Bio Filter System Fish Tank MTF6-20

Recommend
¥Negotiable 16Views

10W Ultraviolet Germicidal Tube 15mm GPH212T5L

Recommend
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Guangzhou

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details


CS-864/D Medium-intensity aviation light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 45m and 150m to air traffic with a flashing red and white safety light. Flashing red light in night mode and flashing white light in day mode to present a hazard. Optional multi lamp flashing using GPS synchronization or control panel.



Product Specifications



Light intensity2,000cd(Night) to 20,000cd(Day)
Operation modeFlashing 20fpm(Night), 40fpm(Day)
Light sourceLED
Service life of LED≥100,000hours
Operating voltageAC110V-240V, DC12V-48V, 50-60Hz
Power consumption60W
Overall size(mm)213 by 213 by 225
Mounting size115 by 115 by M10
Vertical beam spread3° minimum
Horizontal degree360°
MaterialHousing: PC, Base: die casting aluminum
Weight3Kg
Emitting colorRed (Night), White (Day)
Ambient temperature-40℃~+70℃
Wind load80m/s
Protection standardIP65
GPS sync flashing (optional)Supports multi lamp flashing using GPS synchronization
Synchronized flashing (optional)Supports multi lamp flashing with control panel


Features & Application



Features

  •  ICAO Certified.

  •  IP65 waterproof rating.

  •  Long life LED light source.

  •  Integrated design with built-in photocell.

  •  Free maintenance and aluminum alloy material.

  •  Major maintenance cost saving, Surge protection device inside light.

  •  Corrosion resistance, Shock and Vibrations protection and UV protection.

  •  LED aviation lens with 360° Omnidirectional LED Reflector.

  •  Built-in circuit protect LED, extremely reliable and cost saving.

  •  Supports multi lamp flashing using GPS synchronization or control panel (optional).

Application

  •  High-rise Buildings.

  •  Tower Crane.

  •  Wind Turbine.

  •  High Mast.

  •  Metallurgies.

  •  Towers(Telecom, GSM, Electric).

  •  Smokestacks.

  •  Any other potentially hazardous obstructions between 45-150 meters.


Product Dimension




Production Process

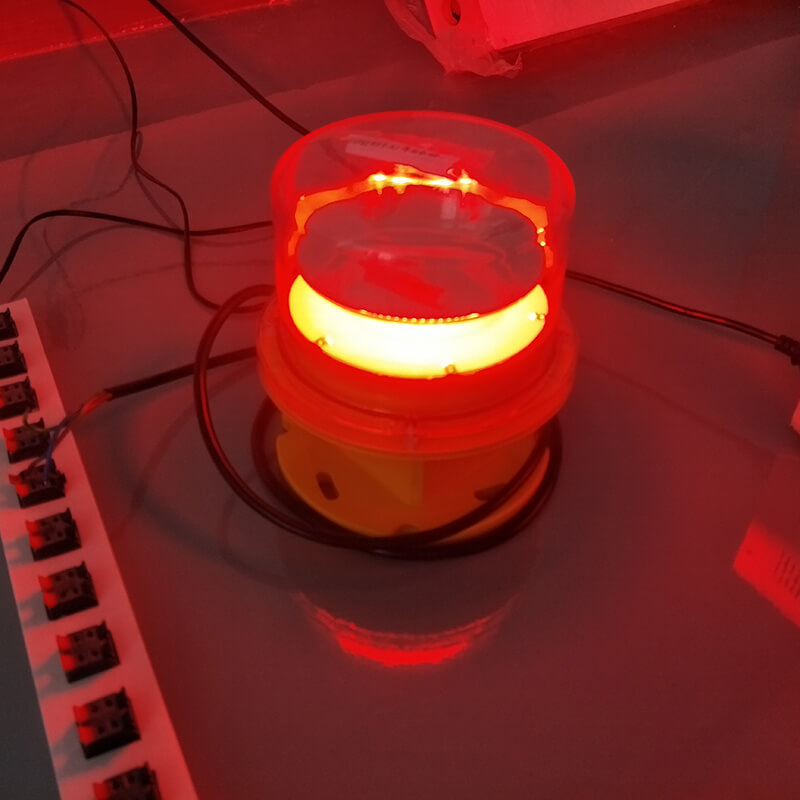

Electrical Test
Electrical Test of medium intensity dual aviation light



Aging Test
Aging Test of medium intensity obstruction light, white in day, red in night



Case

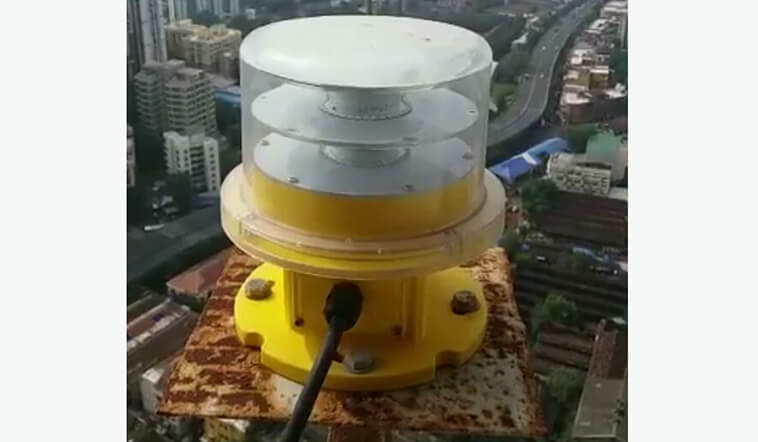

Medium intensity Double Aviation Light for Dubai High-rise Building


Medium intensity Double Aviation Light CS-86/R are designed to outline hazardous obstructions between 45-105 meters to air traffic with a flashing red safety light. Aluminum alloy material keeps it a long service light.

Medium intensity Aircraft Warning Light for Philippines Power Plant


CS-86/R Medium intensity Double Aircraft Warning Light are designed for marking hazardous obstructions between 45-105 meters to air traffic with a flashing red safety light. It is equipped with LED aviation lens with 360° Omnidirectional LED Reflector.
