  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Guangzhou

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

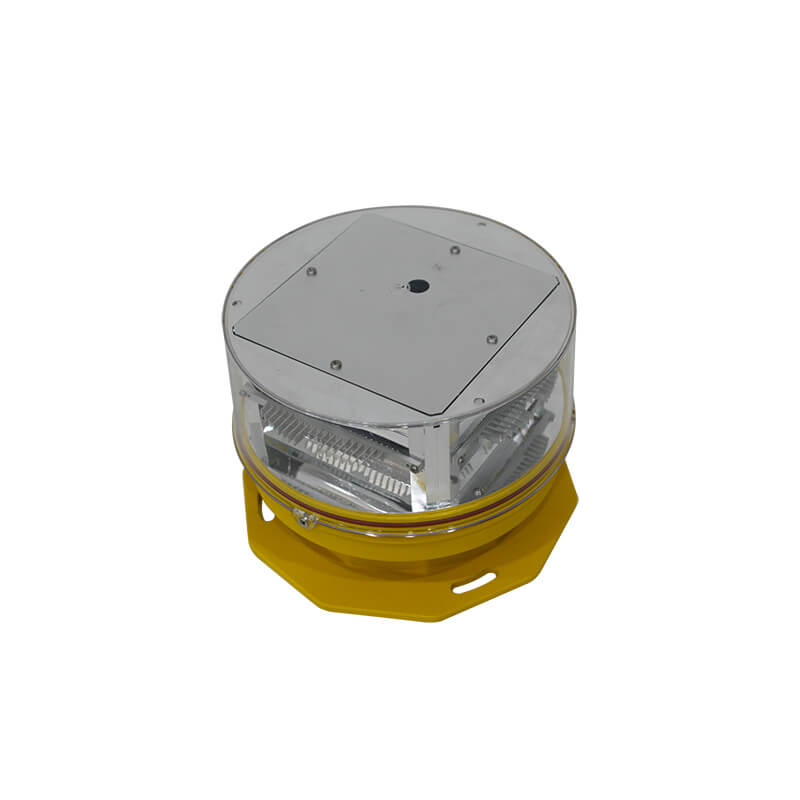

XH-MB(L) Medium-intensity aviation light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 45m and 105m to air traffic with a flashing red safety light. Optional multi lamp flashing using GPS synchronization or control pane.



Product Specifications



Light intensity2,000cd ±25%
Operation modeFlashing 20-60fpm
Light sourceLED
Service life of LED≥100,000hours
Operating voltageAC110V-240V, DC12V-48V, 50-60Hz
Power consumption20W
Overall size(mm)φ228 by 186
Mounting size160 by 160 by 193
Vertical Beam Spread3° minimum
Horizontal degree360°
MaterialHousing: PC, Base: die casting aluminum
Weight3Kg
Emitting colorAviation Red
Ambient temperature-40℃~+70℃
Wind load80m/s
Protection standardIP65


Product Features


  •  ICAO Certified.

  •  IP65 waterproof rating.

  •  Long life LED light source.

  •  Free maintenance and aluminum alloy material.

  •  Major maintenance cost saving, Surge protection device inside light.

  •  Corrosion resistance, Shock and Vibrations protection and UV protection.

  •  LED aviation lens with 360° Omnidirectional LED Reflector.

  •  Built-in circuit protect LED, extremely reliable and cost saving.

  •  Integrated design with built-in photocell.

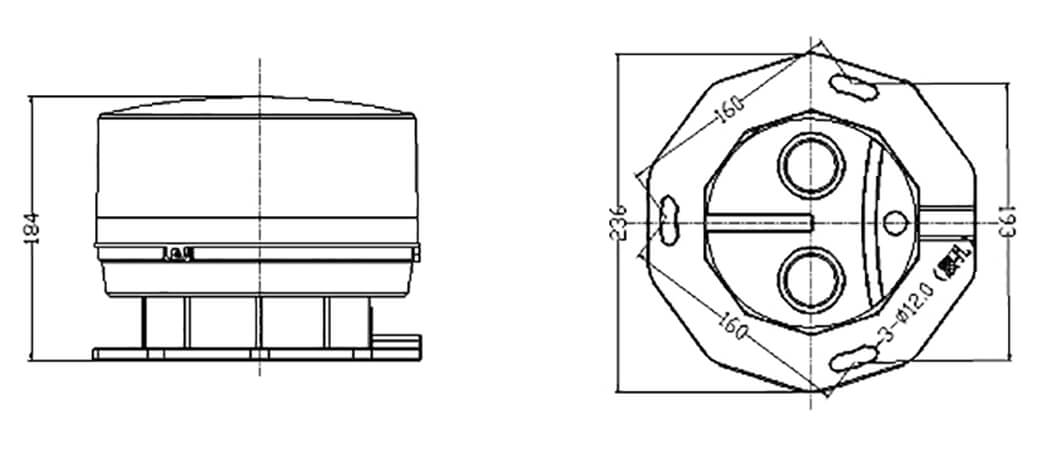

Product Dimension




Production Process

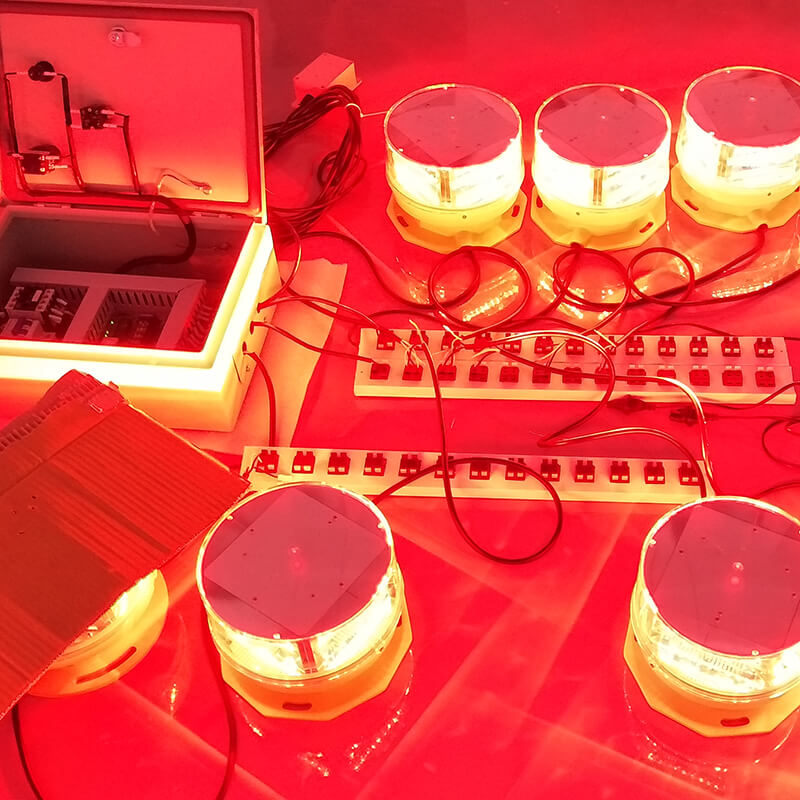

Aging Test
Aging Test of LED based medium intensity aviation light



Aging Test
Aging Test of medium intensity bacon light
