Aviation Obstruction Light Medium-intensity Type C LED ICAO Certified CS-864/C

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Guangzhou

  • Categories:LED Professional Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:46

Other Products
Low-intensity Type A Solar Aviation Obstruction Light CS-810/S
¥Negotiable 24Views

Low-intensity Type A Solar A

Recommend
Solar Aviation Obstruction Light Low-intensity Type B LED ICAO Certified CS-810/S
¥Negotiable 19Views

Solar Aviation Obstruction L

Recommend
Low-intensity Type A Double Solar Aviation Obstruction Light CS-810/T
¥Negotiable 22Views

Low-intensity Type A Double

Recommend
Solar Aviation Obstruction Light Low-intensity Type B Double LED ICAO Certified CS-810/T
¥Negotiable 19Views

Solar Aviation Obstruction L

Recommend
Medium-intensity Type B Solar Aviation Obstruction Light CS-864/S
¥Negotiable 20Views

Medium-intensity Type B Sola

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Guangzhou

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details


CS-864/C Medium-intensity aviation light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 45m and 105m to air traffic with a steady red safety light.



Product Specifications



Light intensity2,000cd ±25%
Operation modeSteady-burning mode
Light sourceLED
Service life of LED≥100,000hours
Operating voltageAC110V-240V, DC12V-48V, 50-60Hz
Power consumption30W
Overall size(mm)213 by 213 by 225
Mounting size115 by 115 by M10
Vertical Beam Spread3° minimum
Horizontal degree360°
MaterialHousing: PC, Base: die casting aluminum
Weight2.5Kg
Emitting colorAviation red
Ambient temperature-40℃~+70℃
Wind load80m/s
Protection standardIP65


Product Features


  •  ICAO Certified.

  •  IP65 waterproof rating.

  •  Long life LED light source.

  •  Free maintenance and aluminum alloy material.

  •  Major maintenance cost saving, Surge protection device inside light.

  •  Corrosion resistance, Shock and Vibrations protection and UV protection.

  •  LED aviation lens with 360° Omnidirectional LED Reflector.

  •  Built-in circuit protect LED, extremely reliable and cost saving.

  •  Integrated design with built-in photocell.

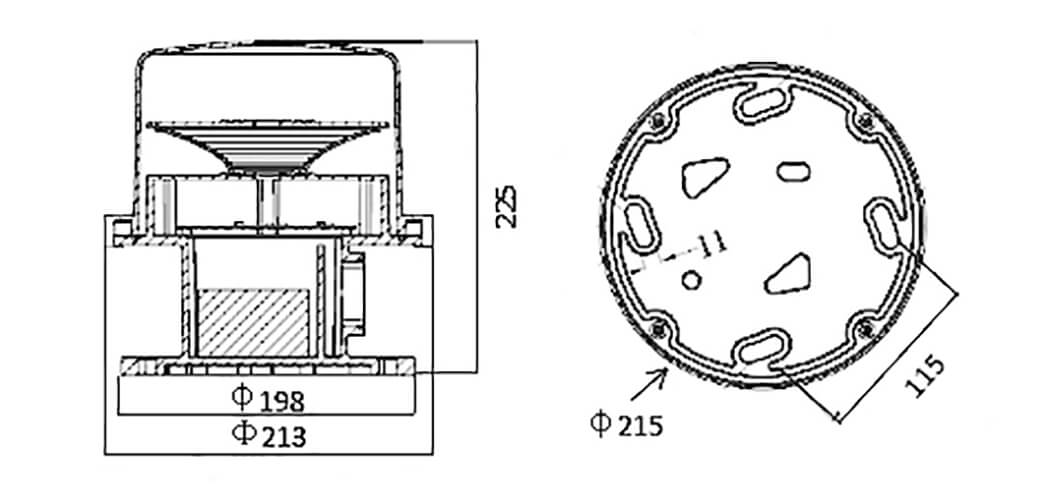

Product Dimension




Production Process

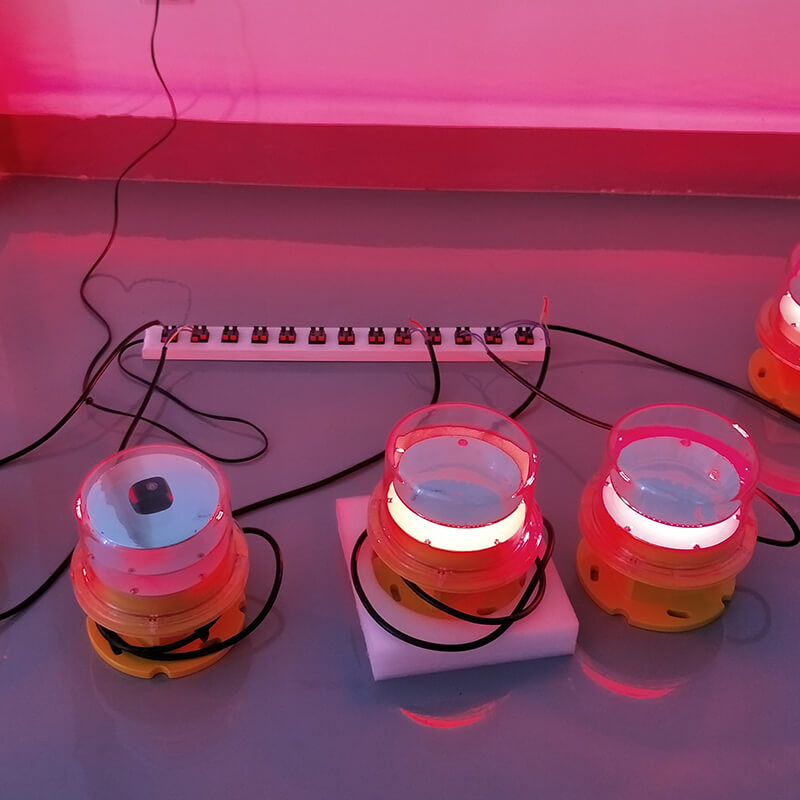

Electrical Test
Electrical Test of medium intensity aviation light

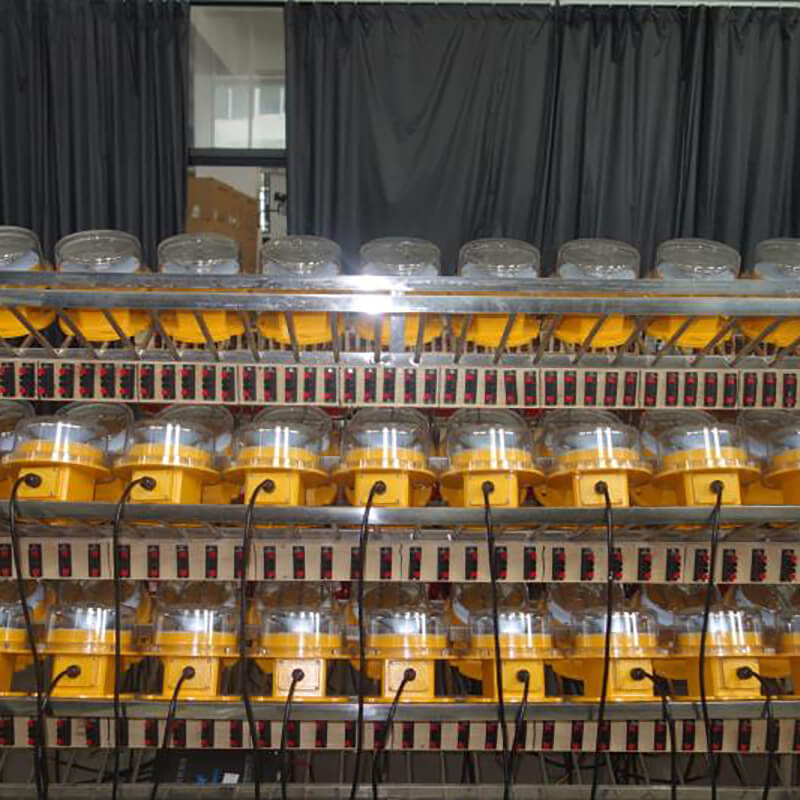

Aging Test
Aging Test of medium intensity red flash aircraft warning light


Case

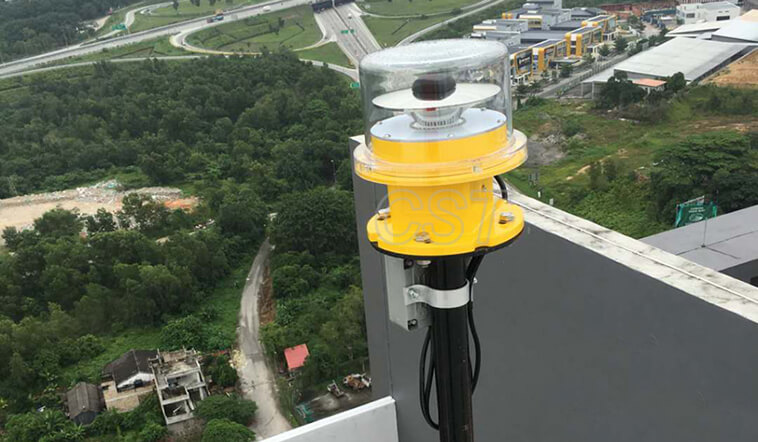

ICAO Medium intensity Aviation Light for Malaysia High-rise Building


ICAO Medium intensity Type B Aviation Light CS-864/B are designed to outline hazardous obstructions between 45-105 meters to air traffic with a flashing red safety light. Integrated design with built-in photocell, auto ON/OFF of lamps.

Medium intensity Aircraft Warning Light for Malaysia High-rise Building


Medium intensity Type B Aircraft Warning Light CS-864/B are designed for marking hazardous obstructions between 45-105 meters to air traffic with a flashing red safety light. 95% less power consumption than incandescent light.
