Product Details
CS-864/D Medium-intensity aviation light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 45m and 105m to air traffic with a flashing red safety light. Flashing red light in night mode to present the obstruction. Optional multi lamp flashing using GPS synchronization or control panel.
Product Specifications
| Light intensity | 2,000cd ±25% |
| Operation mode | Flashing 20-60 fpm |
| Light source | LED |
| Service life of LED | ≥100,000hours |
| Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
| Power consumption | 20W |
| Overall size(mm) | 215 by 215 by 225 |
| Mounting size | 115 by 115 by M10 |
| Vertical Beam Spread | 3° minimum |
| Horizontal degree | 360° |
| Material | Housing: PC, Base: die casting aluminum |
| Weight | 3Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
| Working way of two lights | Two lights flashing by main-standby way. Two lights flashing synchronously. |
Product Features
◆ ICAO Certified.
◆ IP65 waterproof rating.
◆ Long life LED light source.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV protection.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Built-in circuit protect LED, extremely reliable and cost saving.
◆ Integrated design with built-in photocell.

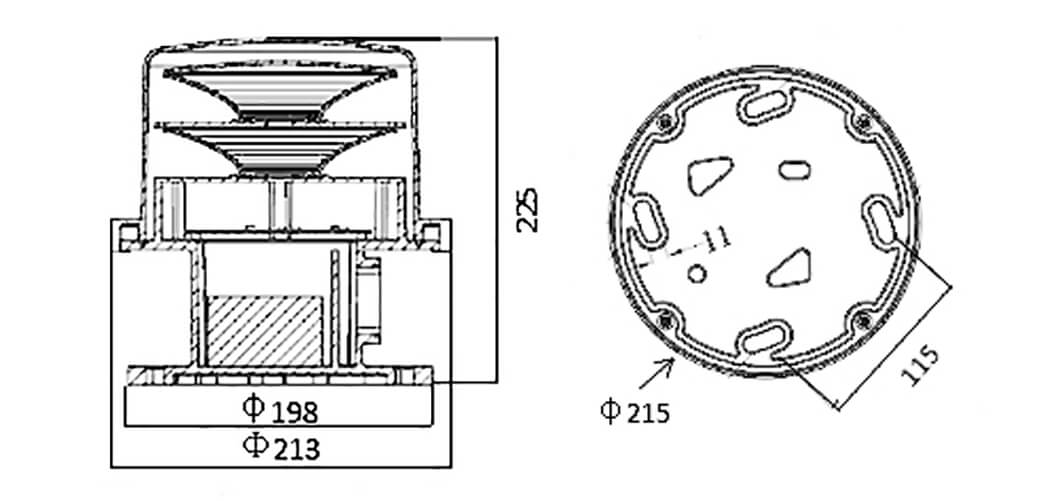

Product Dimension
Production Process
Electrical Test
Electrical Test of medium intensity double aviation light

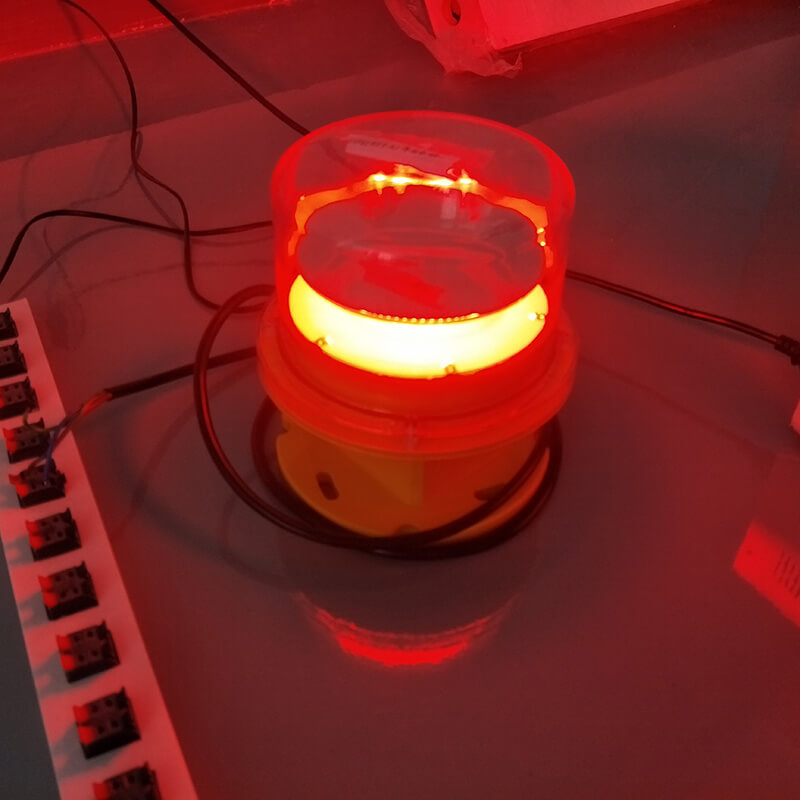

Aging Test
Aging Test of ICAO Certified medium intensity obstruction light
Case
Medium intensity Double Aviation Light for Dubai High-rise Building
Medium intensity Double Aviation Light CS-864/D are designed to outline hazardous obstructions between 45-105 meters to air traffic with a flashing red safety light. Aluminum alloy material keeps it a long service light.
Medium intensity Aircraft Warning Light for Philippines Power Plant
CS-864/D Medium intensity Double Aircraft Warning Light are designed for marking hazardous obstructions between 45-105 meters to air traffic with a flashing red safety light. It is equipped with LED aviation lens with 360° Omnidirectional LED Reflector.
