Product Overviews

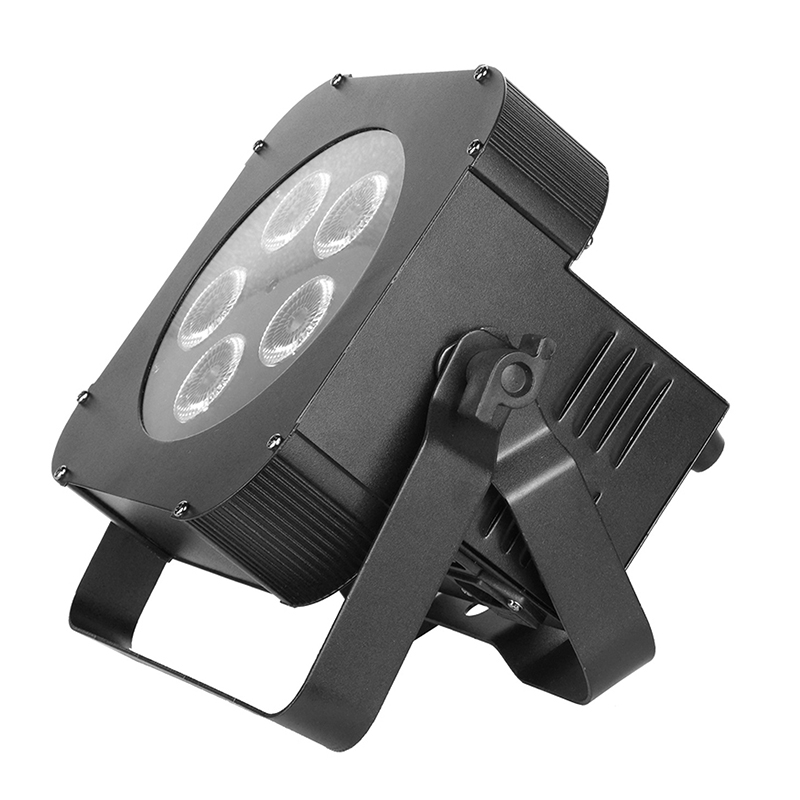

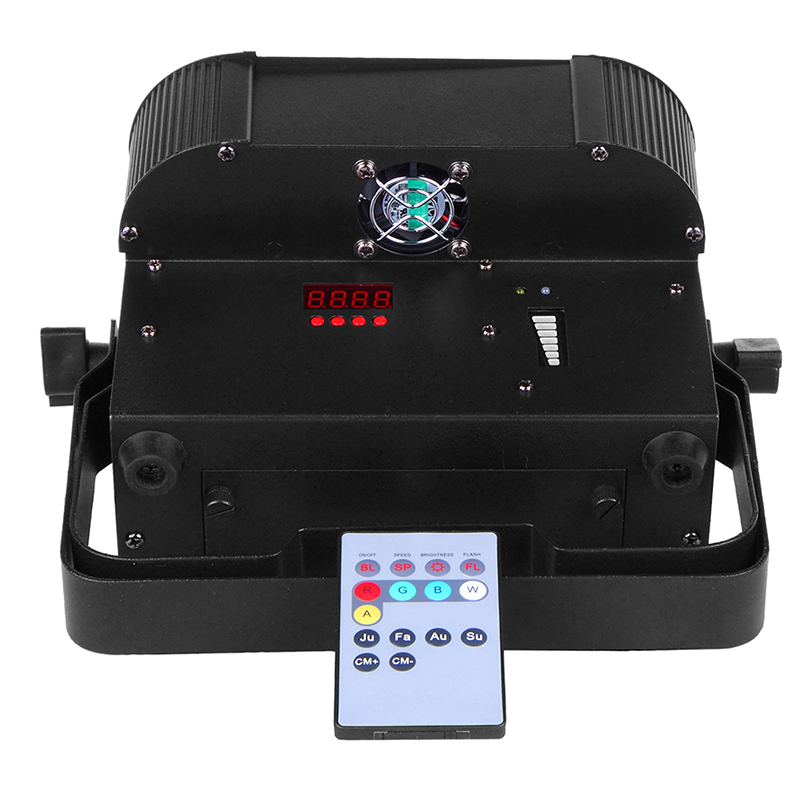

MS-CP54B 5×10W RGBW 4-in-1 color LED
◪MarsLite LED Par Light Series, With light source 5*10W quad color LEDs, the sharpy beam moving head provide super colorful beam dj effect.
◪Battery puwered(rechargeable), IR remote available
◪Built-in sound active, Auto run, DMX and master/slave,IR remote mode.
◪LED display, IR, easy to control.
Technical Data
Name: | Battery wireless LED par light, 5×10W RGBW 4-in-1 color LED |
Type: | MS-CP54B |
LIGHT SOURCE: | LEDs:5pcs multichips 10W,RGBW 4-in-1 |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption:Max.60W |
| Auto switching power supply unit | |
| Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
| Power In/Out: Powercon, daisy chain | |
BATTERY: | Charging time: continuously charging for 4 hours |
| Battery using time: 8-9 hours at single color | |
OPTICS: | Beam angle:24 degree |
| Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 9880LUX@1m, 2560LUX@2m, 417LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode:DMX,auto run,Master/Slave and Sound-active, IR remote |
DMX channels: 2CH, 3CH1, 4CH, 7CH optional | |
| Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro,fade in & out macro | |
Lens angle:18° | |
BODY: | Housing: Metals, black and white optional, baking finished |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
| Entire casing as heat sink for LED source | |
| Cooling: forced air convection, with one silent fan | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Environment temp: -20℃-40℃ | |
Light size:25.6*23.3*10.9cm | |
N.W.:2.5kg | |
Warranty: one year |
Technical Details
Effect diagram

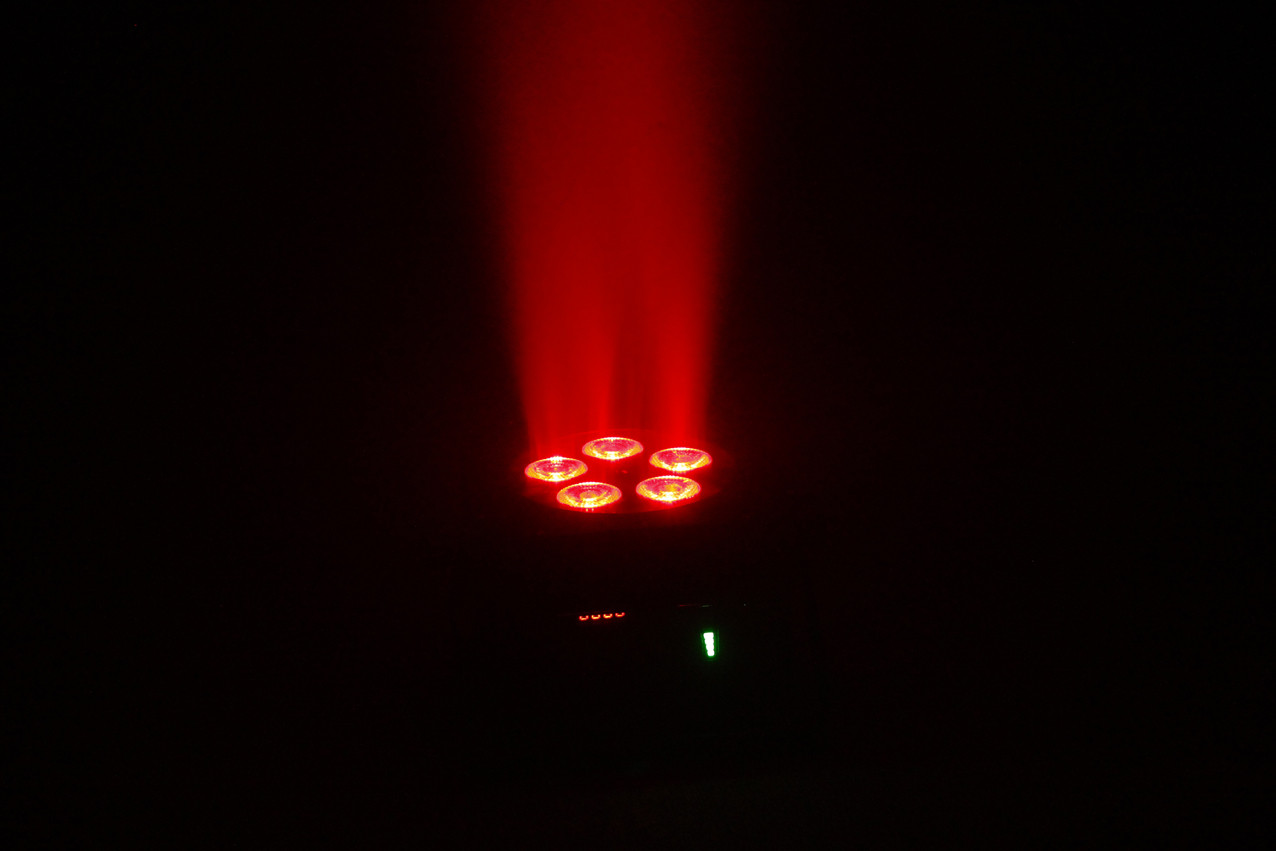

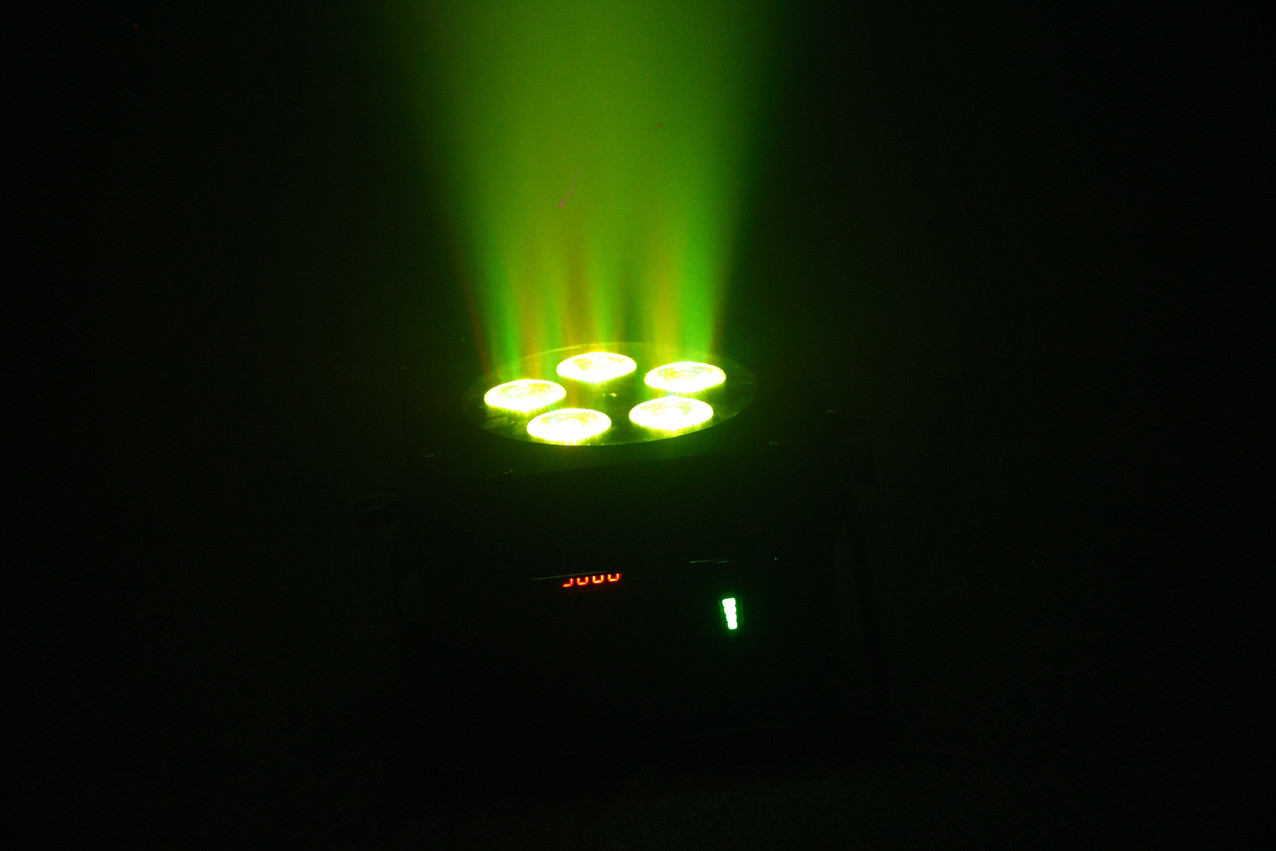

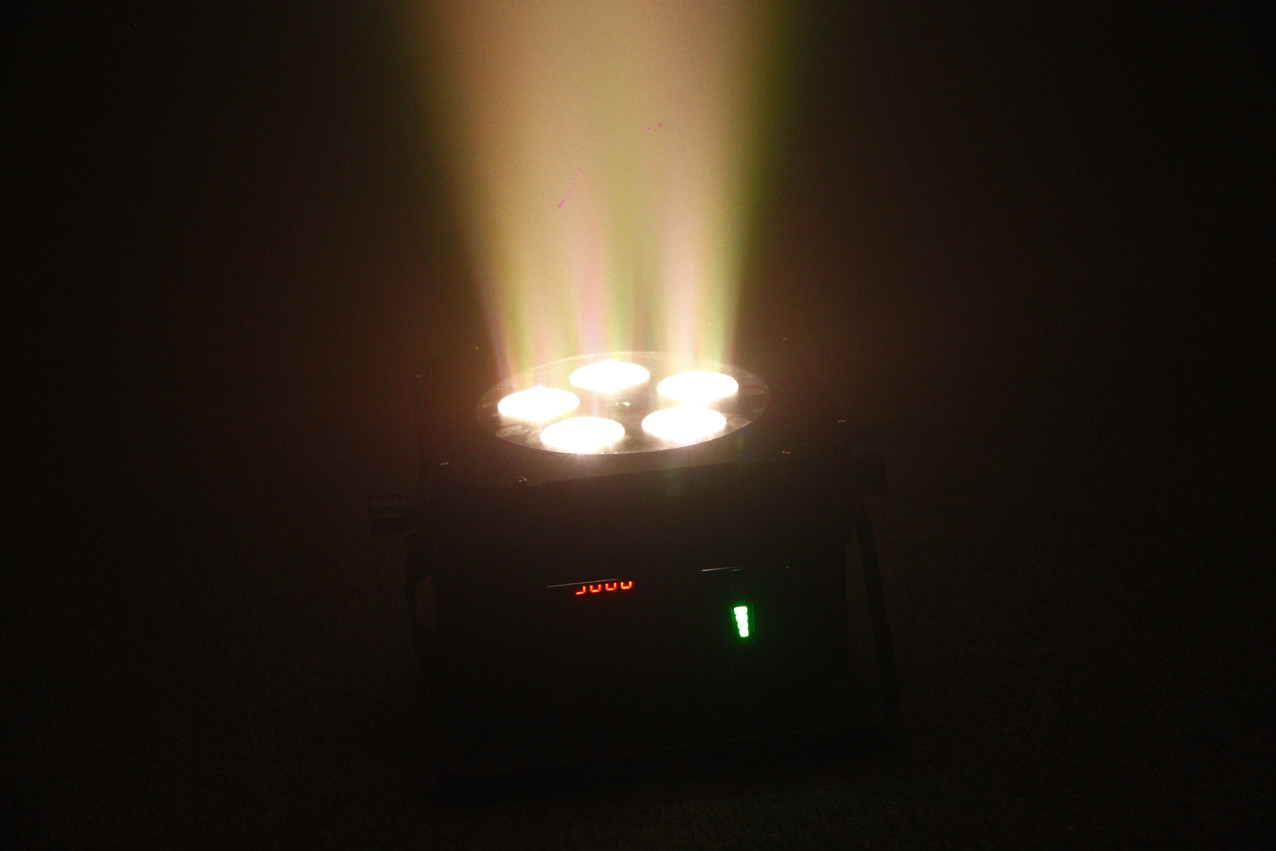

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Test chart

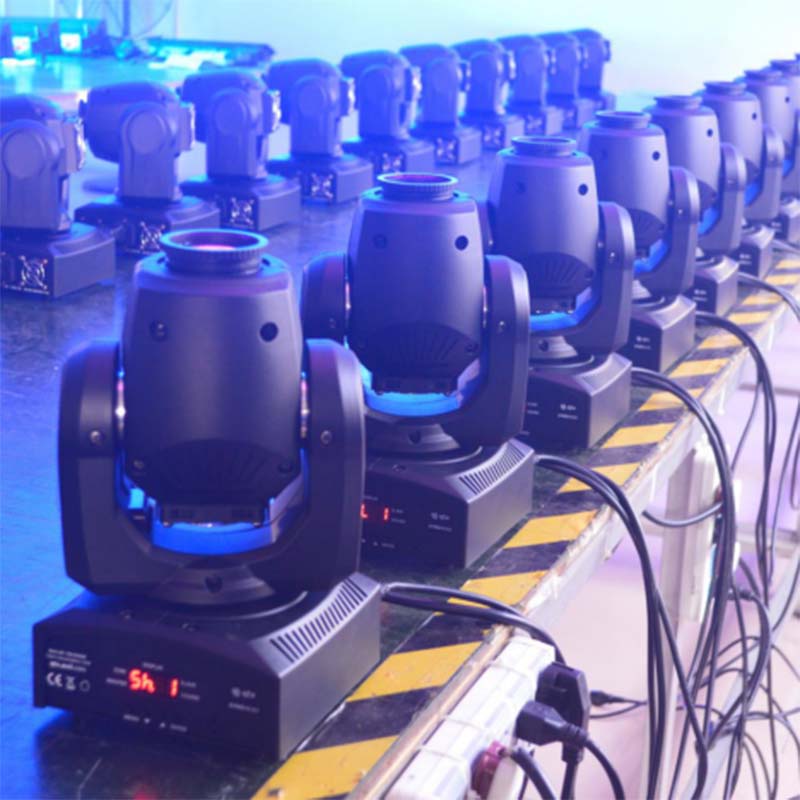

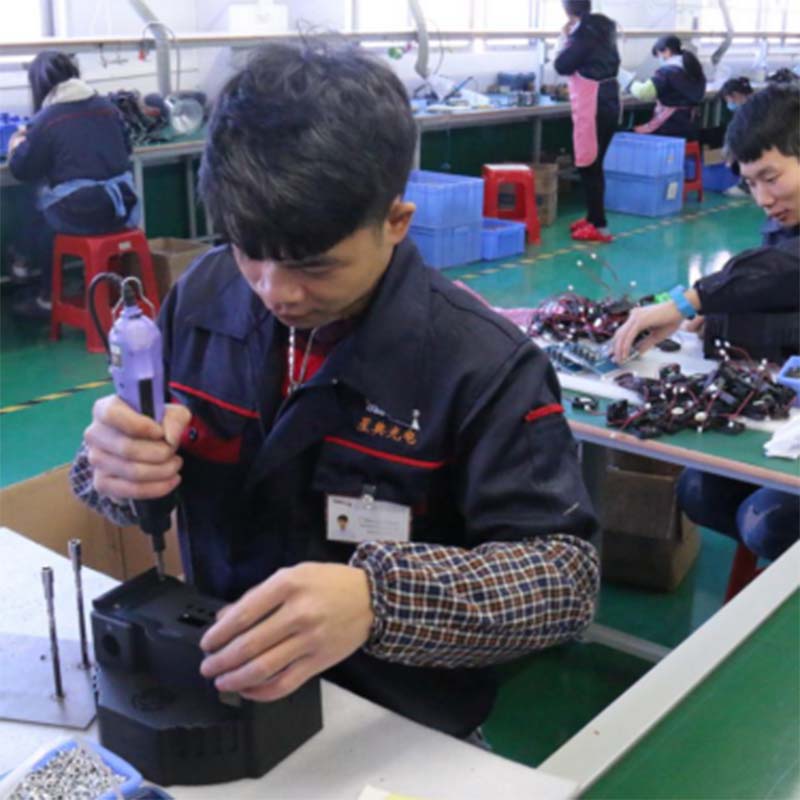

Production line
Packing
