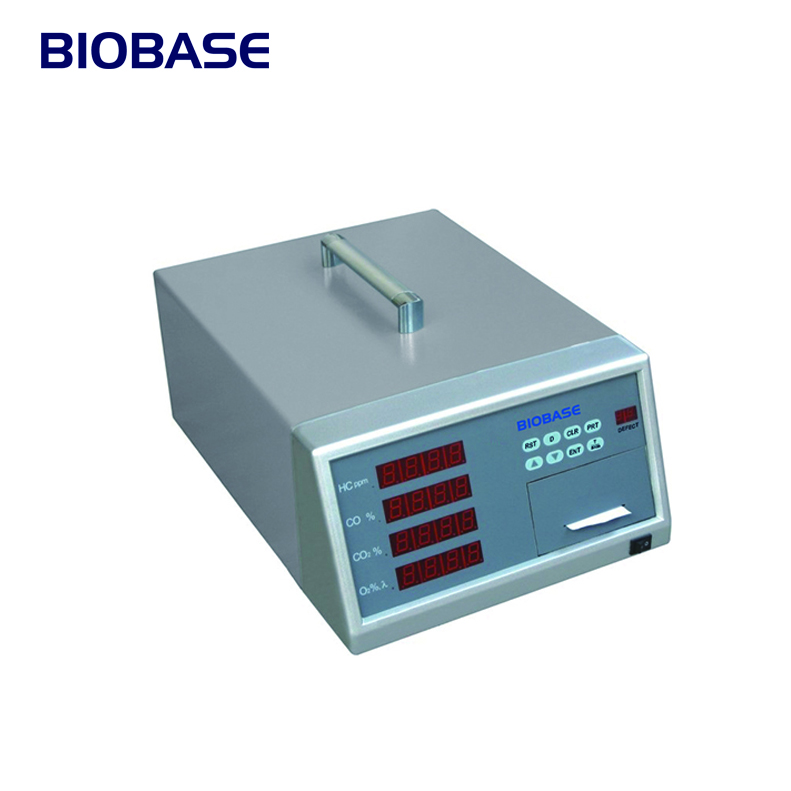

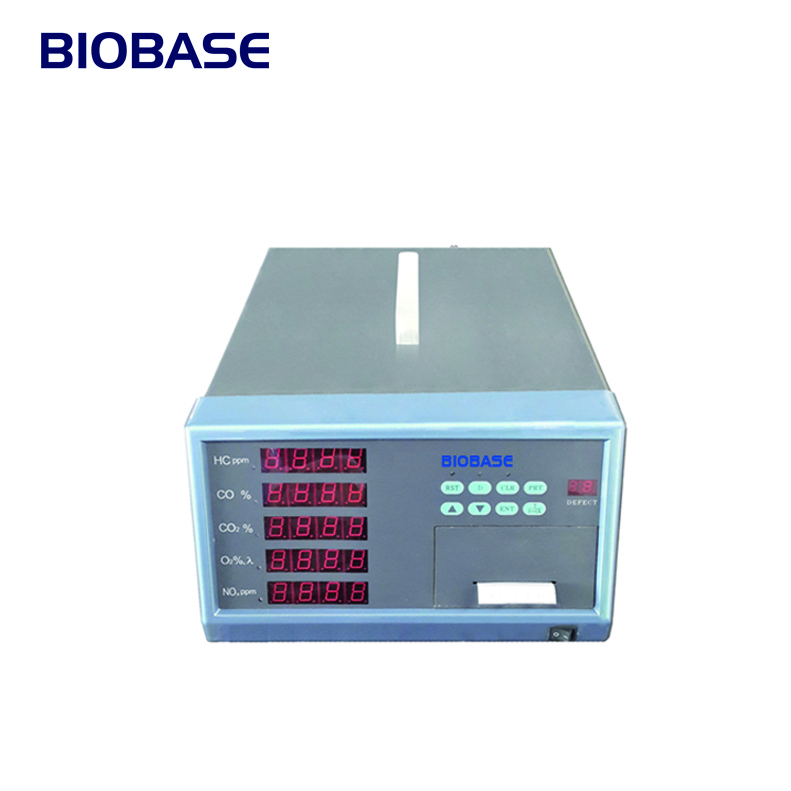

Biobase car automobile exhaust gas analyzer( 5 gases:HC,CO,CO2,O2,NOx)
Main Features of car automobile gas analyzer:
Used to measure vehicle emissions of HC, CO, CO2, O2 and NOx gas concentration, automatic calculation shows that air-fuel ratio λ, can be the engine combustion performance and emissions of pollution in a comprehensive test. Use of advanced foreign technology, import the key components assembled. With a high-brightness digital display, automatic zero, linear automatic data processing, auto-alarm when the gas line blocking, fault diagnosis where the unit automatically and print testing date, time functions, with built-in printer (or the analog output interface or RS -232A digital serial communication interface), can be freely idling and dual idling measure, Multi-mode measurement,with convenient operation, accurate measurement data, work stable and reliable characteristics.
Technical parameters of car automobile gas analyzer:
Model | BK-501 |
MeasuringRange: | HC 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~25×10-2(%)vol NOx: 0~5000×10-6(ppm)vol |
IndicatingError | HC±12×10-6(ppm)vol CO±0.06×10-2(%)vol CO2±0.5×10-2(%)vol O2±0.1×10-2(%)vol NOx±25×10-6 (ppm)vol |
Stability | Momentdrift≤±3% |
Repeatability | ≤±2% |
Response time | 95% response is not more than 10 seconds |
Preheating time | 8min ( preheating 3min emergency detection ) |
Power supply | AC 110/220V±10%,50/60Hz |
PackingSize | 680(L)×385(W)×265(H)mm |
GrossWeight | 12kg |
