BIOBASE BK-2950 /2850 Cryostat Microtome

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-12-03 18:45

Other Products
laboratory cheap prp kit, centrifugal separator, platelet rich plasma PRP centrifuge for sale
¥Negotiable 96Views

laboratory cheap prp kit, ce

Recommend
Biobase Handle UV Lamp
¥Negotiable 49Views

Biobase Handle UV Lamp

Recommend
BIOBASE Quick test cooking oil tester for lab use Temperature Waterproof
¥Negotiable 48Views

BIOBASE Quick test cooking o

Recommend
Competitive Price Peristaltic Pump with 42 stepper motor price
¥Negotiable 47Views

Competitive Price Peristalti

Recommend
2020 HOT SALE Economical Peristaltic Pump CPP-SP2
¥Negotiable 52Views

2020 HOT SALE Economical Per

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Classification:
Other
Brand Name:
BIOBASE
Model Number:
BK-2950
Place of Origin:
Shandong, China
Chamber Temperature:
-10℃ ~ -40℃
Specimen Head Temperature:
-10℃ ~ -40℃
Time to reach -40℃:
60 minutes
Running time of the Peltier Element:
15minutes
Maximum Specimen Size:
35mm*35mm
Specimen Vertical Stroke:
60mm
Specimen Horizontal Stroke:
20mm
Display:
LCD display
Supply Ability
Supply Ability:
1000 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
wooden package /carton package
Port
Qingdao/Shanghai/Dalian/Guangzhou
Lead Time:
one week

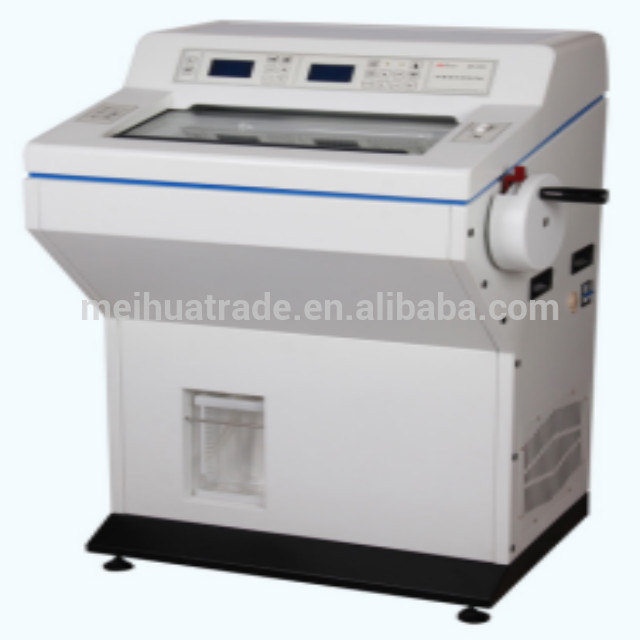

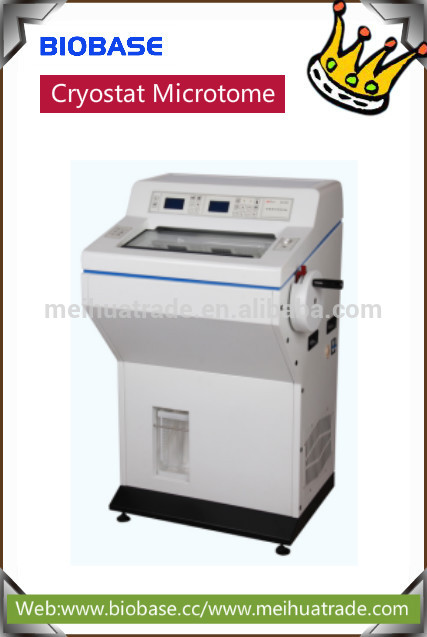

 BIOBASE  BK-2950 /2850 Cryostat Microtome

Product Description

Features:



*A specimen retraction function protects the specimen from blade damage

*A trim button allows easy switching between trim and section mode;

*Counting function for the number of sections and the total thickness;

*The desirable section temperature achieves within 20 minutes unser fast cooling mode

*Low-voltage DC shadowless lamp;

*Semiconductor cooling function can be turned on and off;

*Hearable and removable glass door;

*Two defrosting modes: time defrosting and manual defrosting;

*Microtome is outside of the refrigeration chamber to avoid the effect of heat-expansion and cold-contraction, thus minimizing the need for maintenance;

*User-friendly intelligent operational interface is easy to learn and operate;

*Auto sleep function results in longer compressor life

*Keyboard locking function to avoid accident misoperation;

*A mechanical hand-wheel lock ensure safe chamber access, 16 position for locking;

*The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade;

*A large-size quick-freezing shelf allows for the preparation of 17 specimens at the same time;

*Two holes for semiconductor refrigeration;

*Cleaning device can help customer to clean the unit easy;

*Self-detection function for the temperature senor, can help to warn the failure on temperature senor.



Technical Parameters:

Model

BK-2950

BK-2850

Chamber Temperature

-10℃ ~ -40℃

-10℃ ~ -40℃

Specimen Head Temperature

-10℃ ~ -40℃

-10℃ ~ -40℃

Time to reach -40℃ of the quick-freeze shelf

60 minutes

60 minutes

Lowest possible temperature of the Peltier element

-45℃

-45℃

Lowest possible temperature of the Peltier element together with quick-freeze shelf

≤ -60℃

≤ -60℃

Refrigeration Type

Forced cryogenic refrigeration system

Forced cryogenic refrigeration system

Refrigerant

R134a

CFC-Free

Specimen Orientation

 XY – 8°

XY – 8°

Specimen Clamp Rotation

At any angle within 360°

At any angle within 360°

Running time of the Peltier Element

15minutes

15minutes

Maximum Specimen Size

35mm*35mm

35mm×35mm

Specimen Vertical Stroke

60mm

60mm

Specimen Horizontal Stroke

20mm

20mm

Electric Coarse Feed

Rapid 0.7mm/s; Slow 0.35mm/s

Display

LCD display

Section Thickness Range

1~100μm

1μm - 20μm   increments 1μm

20μm -40μm   increments 2μm

40μm - 100μm  increments 5μm

1~100μm

1μm - 20μm   increments 1μm

20μm -40μm   increments 2μm

40μm - 100μm  increments 5μm

Section Thickness Feed

10~400μm

10μm - 50μm   increments 5μm

50μm - 100μm  increments 10μm

100μm - 400μm  increments 50μm

10~400μm

10μm - 50μmincrements 5μm

50μm - 100μmincrements 10μm

100μm - 400μm increments 50μm

Compressor

Double Compressor

Single Compressor

Specimen Retraction Distance

0 ~ 100μm,in 5μm increments

0 ~ 100μm,in 5μm increments

Consumption

850W

650W

Power supply

AC220V±10%50Hz (standard model);     AC110V±10%60Hz

AC220V±10%50Hz (standard model);     AC110V±10%60Hz

External Size(W*D*H)

660*640*1130mm

660×640×1130mm

Packing Size

790*790*1370mm

790*790*1370mm

Gross Weight

170kg

158kg







Our BIOBASE

BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.






Our Serives

Pre-sale service

  1. 24hours online to ensure quick response to customers" inquiry or online message;
  2. Guide customers to choose the best suitable machine model;
  3. Offer detailed specification and competitive prices;

Contract execution

  1. Machine production will be arranged strictly according to the contract;
  2. Machine photos will be sent to you for inspection during production;
  3. Update latest news after delivery and prepare customs clearance;

After-sale service

  1. Broken spare parts (except for wear parts) will be sent for free due to quality problems;
  2. In time response to customers technical problems;
  3. New products update for customers" reference.
Packaging & Shipping
Trade Terms : FOB ,CIF,EXW
Payment Terms : T/T ,LC at sight ,Western Union .
Delivery time : 7-20 days after deposit
Packing : EPE foam+plastic bubble film
Shipping :By sea ,by air and by express delivery



FAQ

Why choose us ?

1.Directly manufacturing factory with competitive price and quality control,we check all material when we start to bulk product  productions

2.Professional advice to help you purchase the products you wanted

3.Professional export service team servers in the deal

4.Customization service is available ,OEM business is appreciated

5.We will inspect and test all products material carefully to ensure no damage and lost

6.The success of our cooperation can be guaranteed for our company is a credible and honest partner.



How much will the shipping charges be ?

This is depends on the size of your shipment and the method of shipping .When inquire about the shipping charges , we hope that you let us know the detailed information such as the codes and the quantity .Your favorable method of shipping .( by sea or by air ) and your designated port or air port .We will be gradeful if you can spare us some minutes to help us since it will enable us to evaluate the cost based on the information provided .





Can I visit your factory ?

Sure ,We are a manufacturer of lab furniture in Guangzhou ,China .Please contact us in advance and will make an appointment with you .

 Welcome to visit our factory in Jinan .
