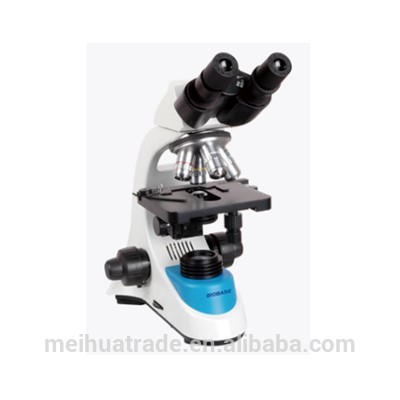

BIOBASE XS-208 Series Laboratory Biological Microscope
Specification | XS-208A | XS-208B | XS-208C | XS-208AP | XS-208BP | XS-208AB | |
Viewing Head | Sliding Binocular Head Inclined at 45? | √ |
|
|
|
|
|
Sliding Trinocular Head Inclined at 45? |
| √ |
|
|
|
| |
Compensation Free Binocular Head inclined at30? |
|
|
| √ |
| √ | |
Compensation Free Trinocular Head inclined at30? |
|
| √ |
| √ |
| |
Nosepiece | Ball Beating Quadruple Nosepiece | √ | √ | √ | √ | √ | √ |
Eyepiece | WF10X/18mm | √ | √ | √ | √ | √ | √ |
Objective | 4X,10X,40X(S)100X(S,Oil) | √ | √ |
|
| √ | √ |
InfinitePlanAchromatic 4X,10X,40X(S)100X(S,Oil) |
|
| √ | √ |
|
| |
Achromatic Stage | Double Layer Mechanical Stage 135*140mm | √ | √ | √ | √ | √ | √ |
Condenser | ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable | √ | √ | √ | √ | √ | √ |
Illumination | Build-in Illumination,Halogen lamp 6V/20W | √ | √ | √ | √ | √ | √ |
Accessories | Photo attachment, Videoattachment |
| √ | √ |
| √ |
|
Dark fieldcondenser,Polarization set ,Phase contrast kit | √ | √ | √ | √ | √ | √ |
Package size:250*360*460mm Gross weight:8KG
AC110/220V±10%,50/60Hz
Note:110V/220V for LED lamp ,220V only for Halogen lamp
Optional:2.0, 3.0 or 5.0 Megapixel, CMOS electronic eyepiece
