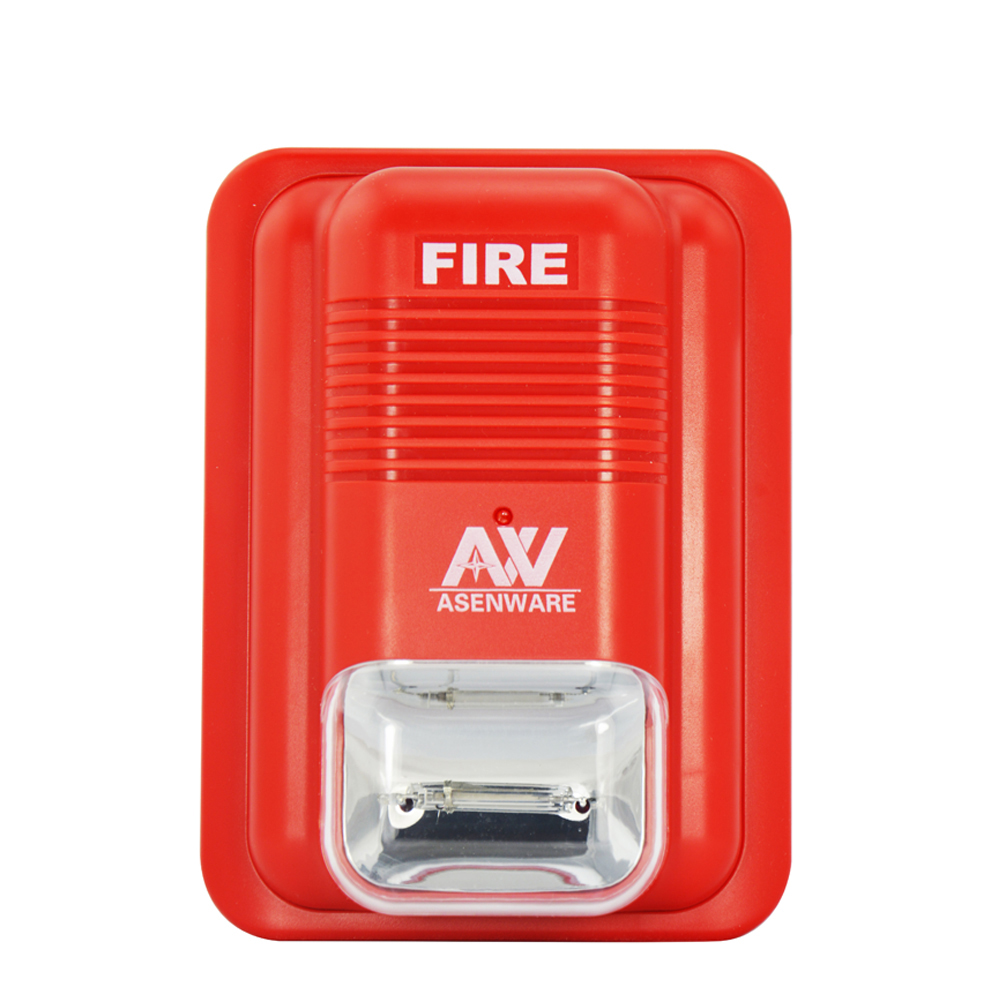

En54 Standards Wireless Addressable fire alarm control panel with GSM Function
¥Negotiable 22Views

En54 Standards Wireless Addr

Recommend

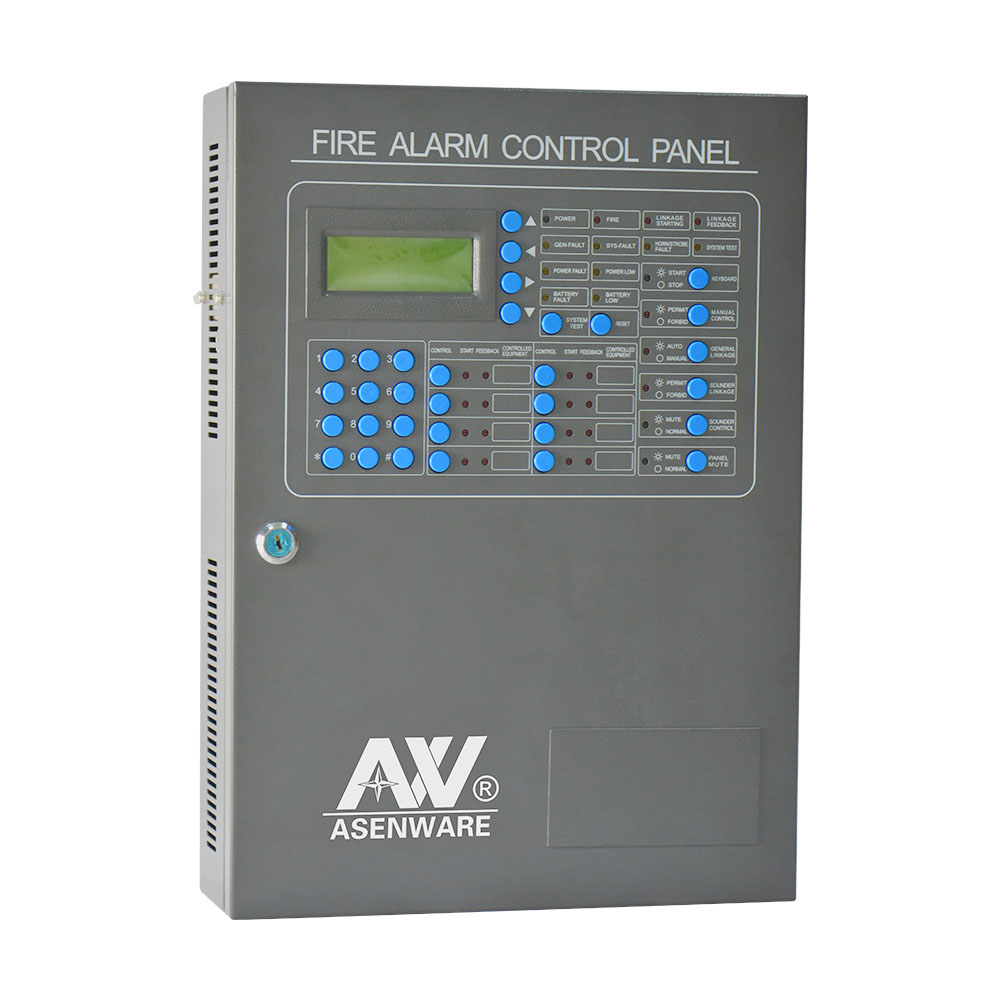

Addressable Fire Fighting Equipment,Gas Control Panel AW-AFP2188-200 with GSM Module ,3 Series
¥Negotiable 21Views

Addressable Fire Fighting Eq

Recommend

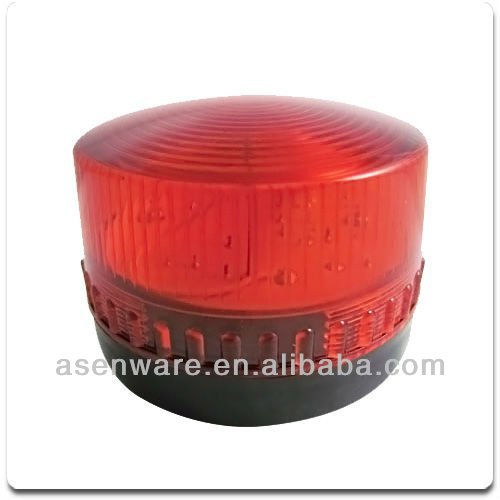

Conventional Fire Alarm Flash Light //Fire Suppression System
¥Negotiable 20Views

Conventional Fire Alarm Flas

Recommend

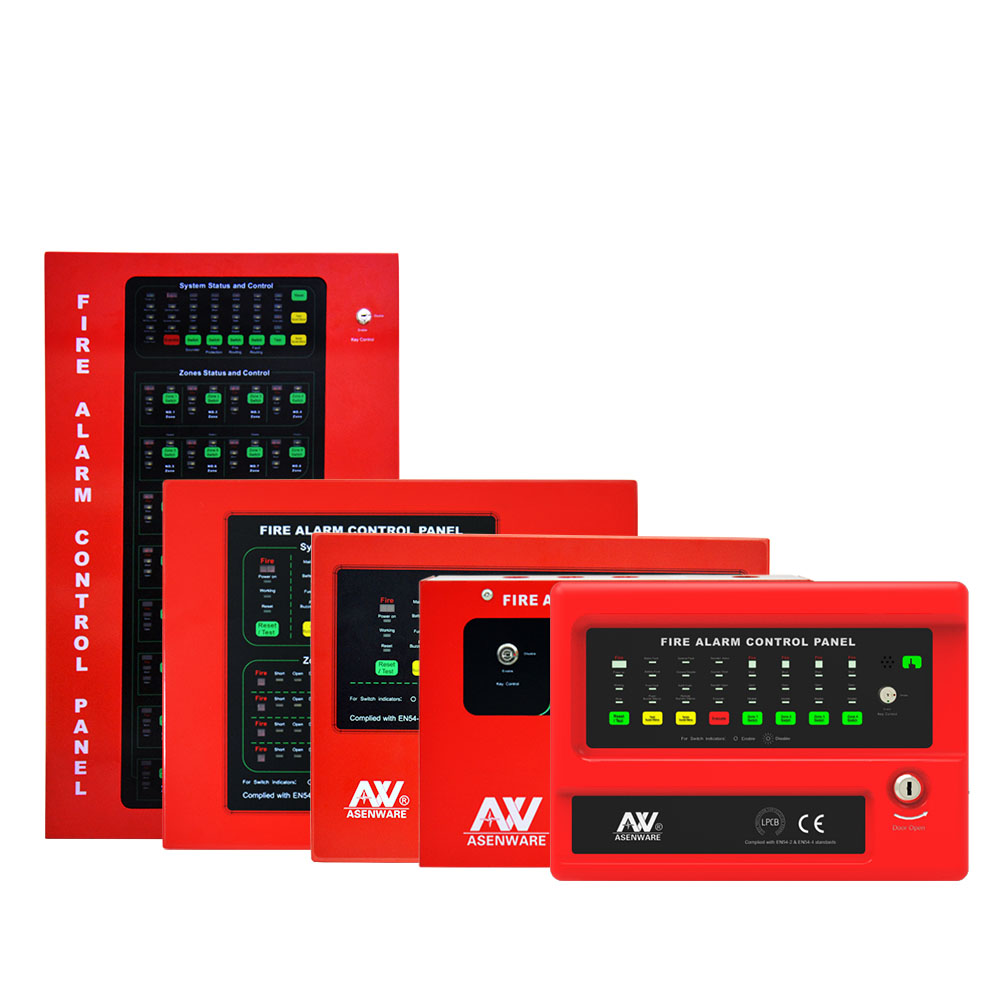

HOT!!! 32 Zone Conventional Gas Release Control Panel AW-CFP2166,Fire Fighting Equipment with GSM Module,FM200
¥Negotiable 26Views

HOT!!! 32 Zone Conventional

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-CCO851
Material:
Fire Resistance Plastic
Operating voltage:
9-28 VDC Volts Non-polarized
Fire Sensor:
Carbon Monoxide Sensor
Standby Current:
<20mA@24VDC
Sensitivity:
50-150ppm
PCB Board:
Digital software controlled design
Height:
48.2 mm installed in Base
Diameter:
99.45 mm
Color:
white or as customized
OEM/ODM:
YES
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PP baginside, carton box outside.
Port
Shenzhen
Product Description

Advantage 4 Wire Carbon Monoxide Detector

A carbon monoxide detector or CO detector is a device that detects the presence of the carbon monoxide (CO) gas in order to prevent carbon monoxide poisoning. CO detectors are designed to measure CO levels over time and sound an alarm before dangerous levels of CO accumulate in an environment, giving people adequate warning to safely ventilate the area or evacuate.

The AW-CCO841 carbon monoxide detector are available as system-connected,it can be wired to fire panel.



                                        Advantage 4 Wire Carbon Monoxide (CO) Detector # AW-CCO841
Model
AW-CCO841
Fire Sensor
Carbon Monoxide Sensor
Sensitivity
1.06±0.26%FT
Operating Voltage
9-28V DC,Non-polarized
Working Temperature
-10℃~50℃
Working Humidity
95% Relative Humidity,Non-condensing
Standby Current
<20mA@24VDC
Relay Output
NC:0.5A@24VDC
Sounder Level
85dB/m at 10 feet far
Material
Shell:Fire Resistance Plastic ,Connector:Stainless Steel
Dimension
Diametert:99.45mm,Height:48.2mm
Customization
Logo,Color
Standards
ISO9000,CE,,LPCB
Packing
10PCS/Carton,20.5*23.5*11cm,1.42kg/Carton
10Carton/Box,43*27*58cm,14.5kg/Box

Features of Advantage 4 Wire Carbon Monoxide (CO) Detector

* Carbon monoxide detector uses a state-of-the-art carbon monoxide sensor.
* 4 wire designed,with relay ouput.
* Designed to provide open area protection and to be used with most conventional fire alarm panel.
* Two LEDs on each detectors provide local 360° visible alarm indication.
* LED indicator flash every six seconds indicating that power is applied and the smoke detector is working properly.
* The LED latch on in alarm. LED will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
* The alarm can be reset only by a momentary power interruption.
* The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
