Product Details
- Brand Name:
- MT-MEDICAL
- Model Number:
- EOT-M2
- Place of Origin:
- Shanghai, China
- Instrument classification:
- Class II
- Type:
- Operating Table
- Power Source:
- Electricity
- Material:
- Stainless steel
- Product name:
- operating table
- Castor size:
- 125mm
- Brand:
- MT-MEDICAL
- Certificate:
- CE,ISO
- Packing:
- Wooden Case
- Max loading weight:
- 320kgs
- Warranty:
- 2 Years
- Supply Ability:
- 10000 Unit/Units per Month electrical hydraulic Operating Table

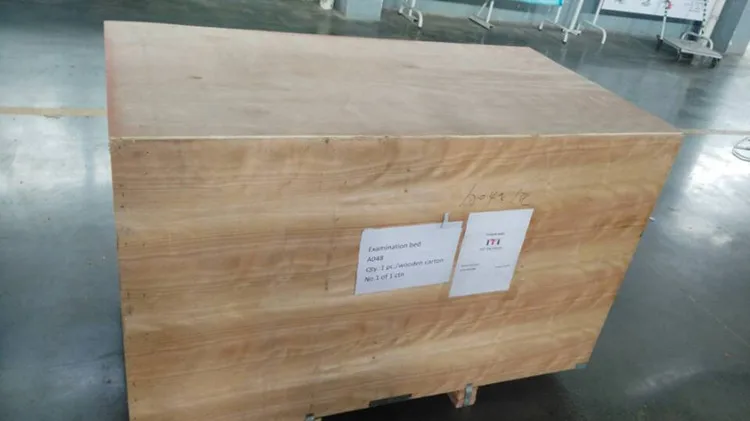

- Packaging Details
- electrical hydraulic Operating Table
standard export wooden packing
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 15 To be negotiated
“ Hefei MT Medical is the leading manufacturer of hospital Instrument in china for OP&ICU room"
Operation Table
1.The table is equipped with microcomputer controller and safety lock key protecting from misoperation.
2.Adjusted manupulablly to the enough low place (the lowest height 550mm) so that doctor can sit to operate cerebral surgery phthalmology.
3.The table can be moved longitudinally more than 300mm so that C-arm X-ray can rotate freely to work, and x-ray can make radiography vertically without dead angles.
4.The Table is divided into five section: head board, shoulder board, back board, seat board and leg board.
5.The table is made of penetrated X-ray material. There is cassette guide rail under the table which make radiography.
6.Equipped with shoulder-back composited bending button on the table, which will be convient for kidney surgery and Gallbladder surgery.
7.The table is fixed a button which can control the electric wheel to draw in and put out so that the table can be pulled easily.
8.Accessories and Guide rail are made of stainless steel.
9.The main accessory hydraulic pump and electromagnetic valve are made of imported component from Taiwan.
10.Base shell is made of aluminum alloy and supporting base is made of stainless steel.
11.The head board and leg board is adopted special gas-spring from Germany, it is convenient to operate.
12.Optional built-in kidney bridge and optional forked leg plate
| Technical Parameters | Technical Parameters |
Total Size: | 2100*550mm |
Height adjustment range: | 550~850mm |
Back section up: | 75° |
Back section down: | 15° |
Trendelenburg: | 20° |
| Re-trendelenburg: | 20° |
| Lateral tilt: | 15° |
Leg section adjustment: | Up 45° Down 90°(ps:detachable) |
Table surface Sliding range | 300mm |
Head section adjustment: | Up 35° Down 90°(ps:detachable) |
G.W. Of overall table: | 280kgs |
Wood carton packing volume: | 2000×790×790mm |
| Voltage | 220V 50Hz or 110V,60HZ for choice |
1).How to order your operating lamps?
When you are ready to order, please contact us to confirm current prices, payment arrangement, availability, and delivery time of your medical equipment or accessories. Whenever possible, we request a hard copy purchase order to ensure that your order is processed properly.
2).What"s your product guarantee?
Normally we offer 24 months warranty, and lifetime maintenance. We can also extend the warranty time per client’s request.
3).Does your product has any certificate?
Almost all our medical equipment is CE, ISO approved, and some of them has FDA certificate.
4).What"s your payment terms?
We can accept T/T,Western Union, Money Gram, Paypal, Alibaba Trade Assurance, L/C,cash etc
5).What"s your product lead time?
Normally all our medical equipment are in stock, so we can deliver goods within 3 workdays after receipt payment.
6).How to maintenance the product if it has problem?
We have professional engineers,they will solve your problem by communicating with skype or phone. If the machine is totally broken and can not work, send it back to us and we will send a new one to you.
7).What"s your training policy?
Medsinglong offers free product training for clients.Clients can choose video,voice,email,skype for online training.Moreover, Medsinglong has client training courses every year, client can visit Medsinglong for face to face training.Meanwhile,Medsinglong support training in client"s office
as required.
