Product Details

/ PRODUCT SPECIFICATION

Part number	DR-5050FX120-24CCT	Adhension	3M 300LSE tape on the back
Color or Color temperature	2700~7000K	Work temperature	-30~70℃
Power consumption	20W/M	Waterproof rating	IP20 / IP65 / IP67 / IP.NANO
Input voltage	DC24V	Length of per reel	16.4' (5M) or 32.8'(10M)
LED light source	SMD5050	Working lifetime	50000 hour
CRI (Color rendering index)	Ra>83	Standard connector	20AWG BWY wire on the end
LED beam angle	120°	Connector length	150-200mm length
LED QTY per meter	120	LED strip dimension	15mm (Width)*2mm(Height)
Luminous flux per meter	1420-1620LM	Length cuttable	24V-100mm
LED strip PCB thickness	2oz	Certification	CE, ROHS, cUL, UL listed
LED strip PCB color	White color	Warranty	3 years

/ product description

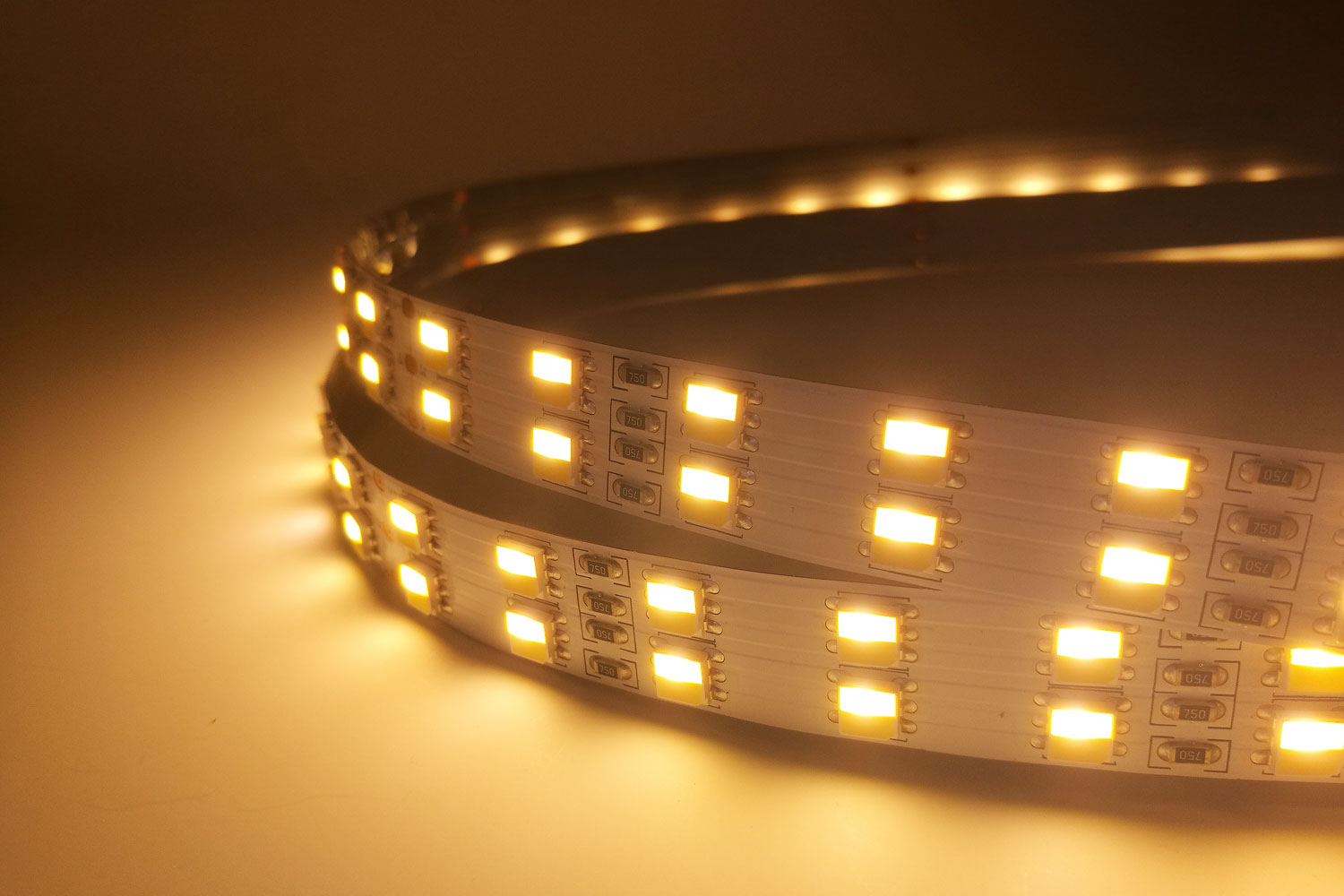

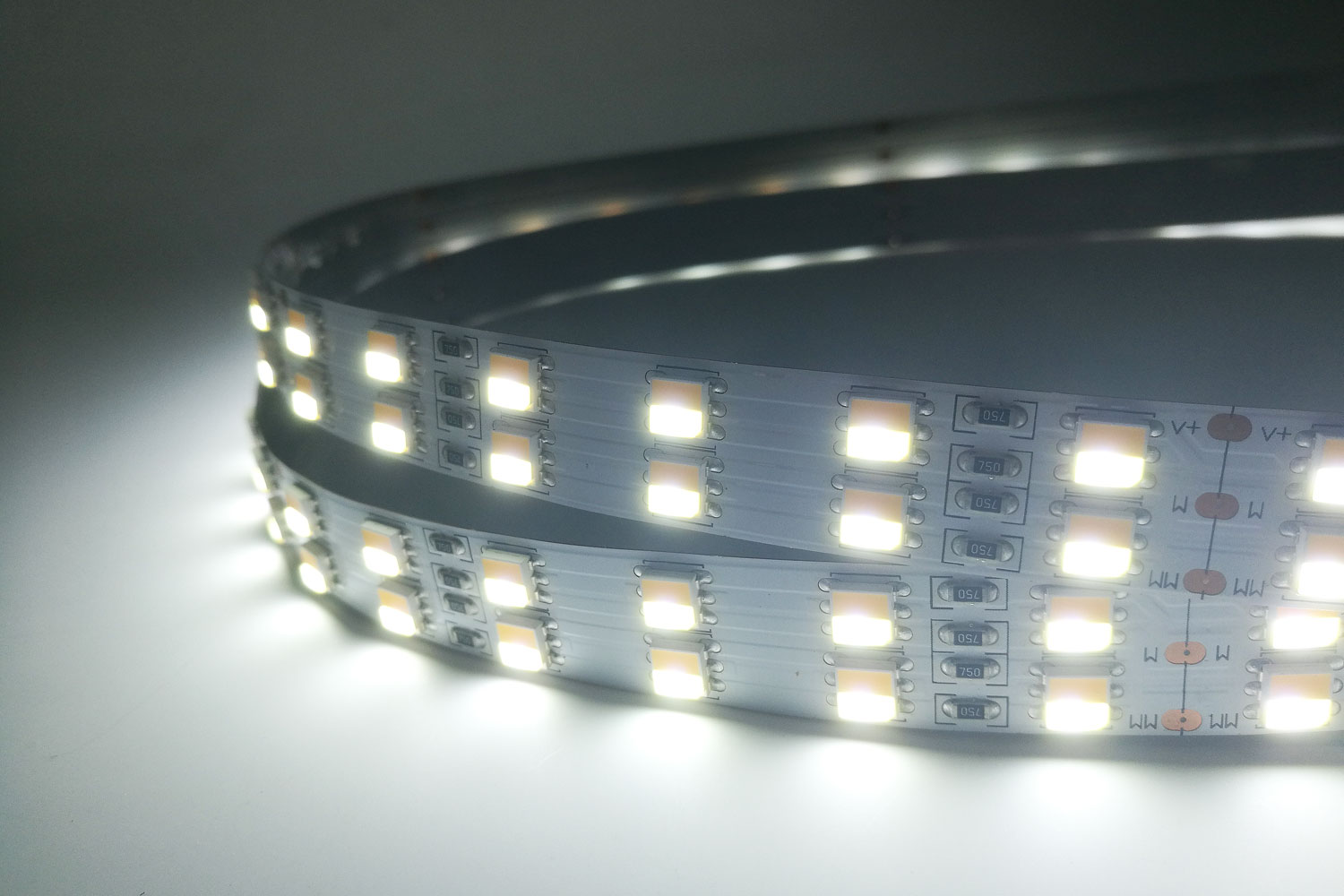

CCT Adjustable Double Row 5050 LED Strip Light

This versatile LED Strip light is in 20W/M (6.7 Watts foot). It uses two 5050 LED Chip placed every 0.66”(16.6mm). This LED Strip has low Density Lighting with 120 didoes per meter or (18/ft). It is cuttable every 6 LED chips or 4”(100mm) for 24VDC. The pcb width of this led strip light is 15mm. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.

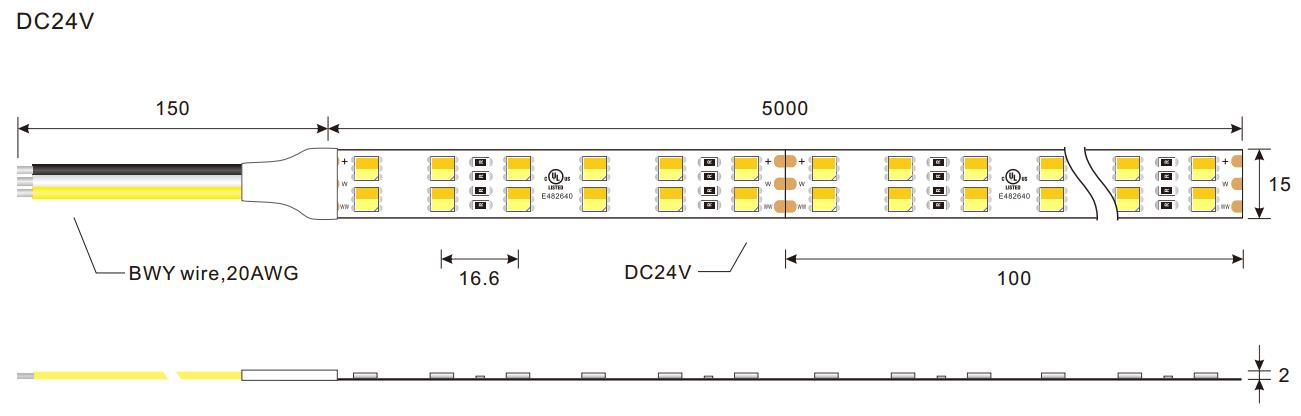

/ Dimension(mm)

STYLE

5050 CCT Adjustable LED Strip

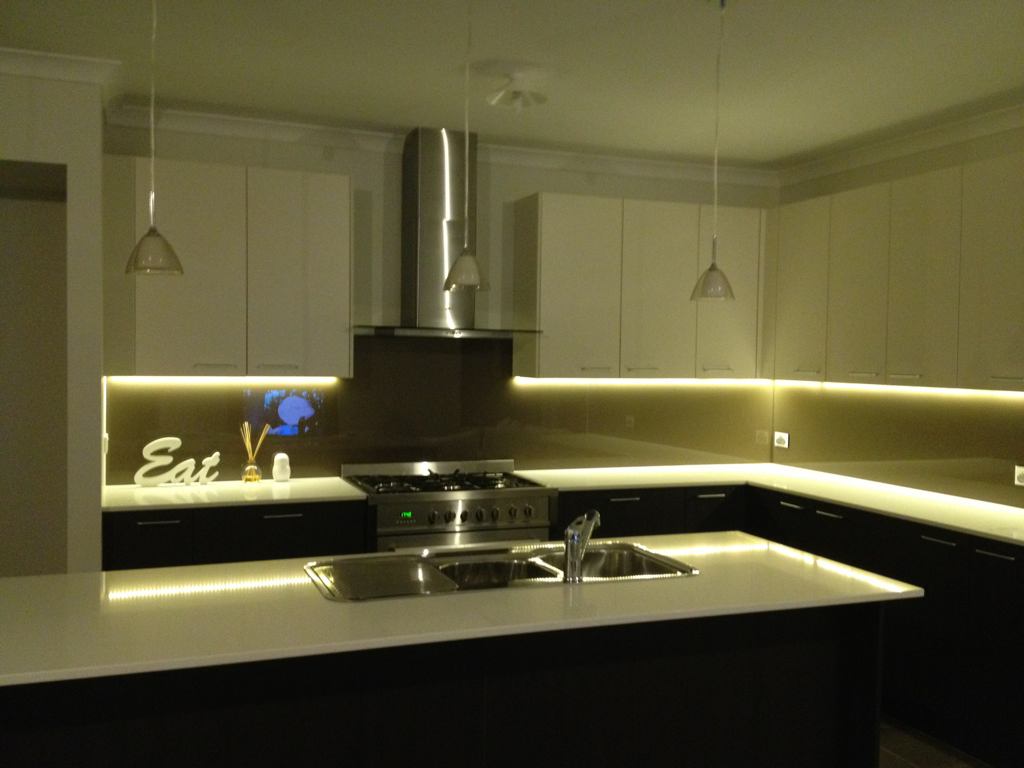

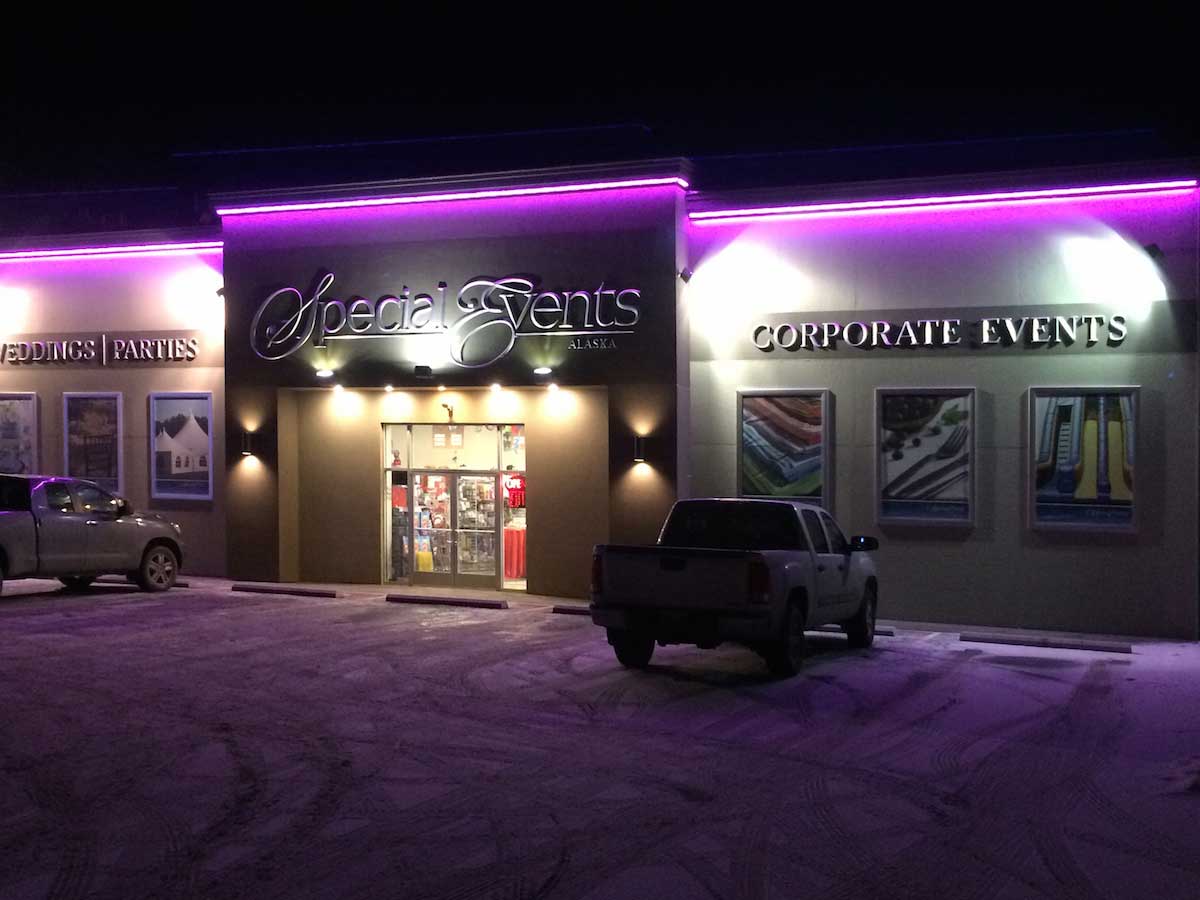

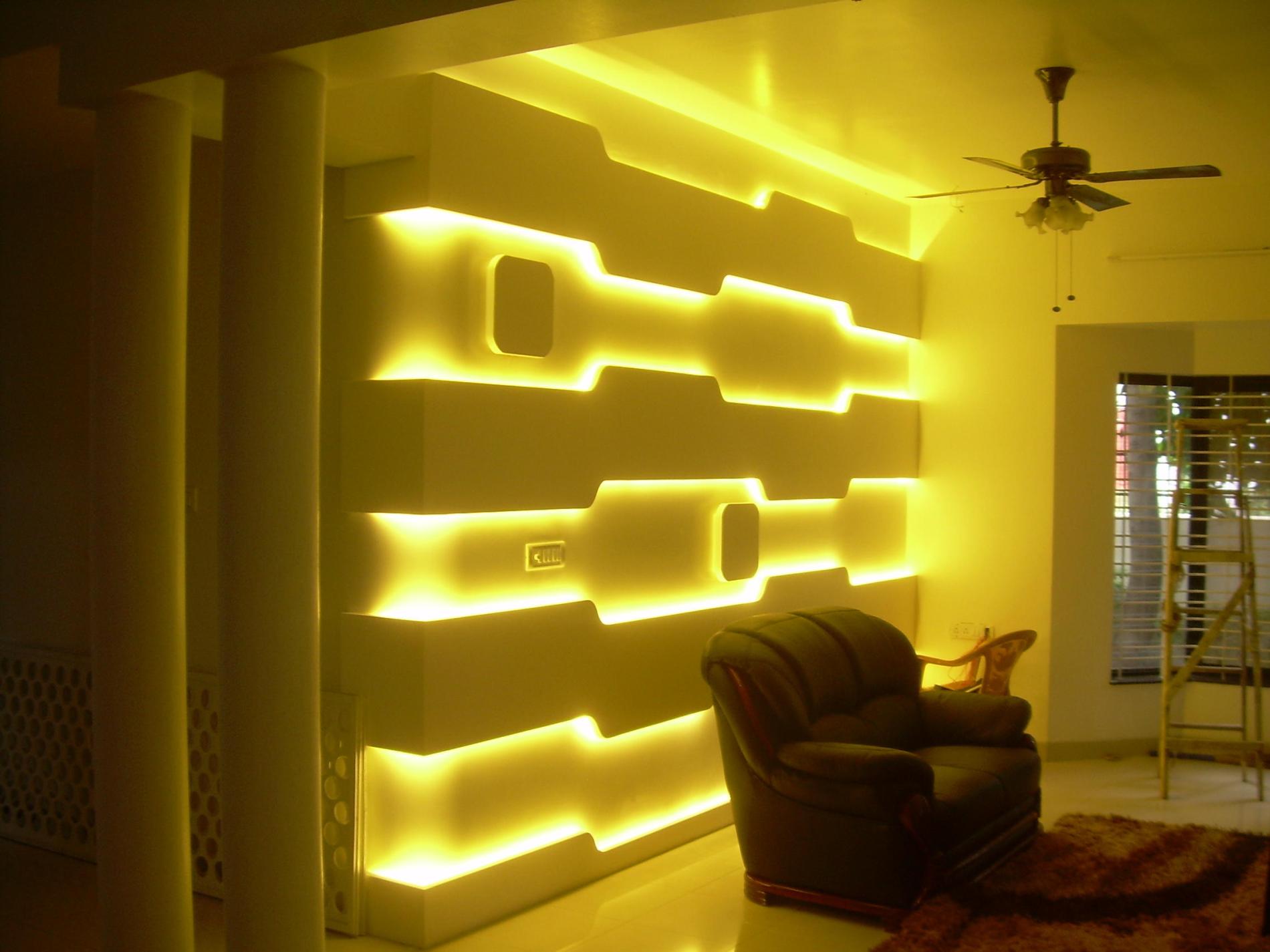

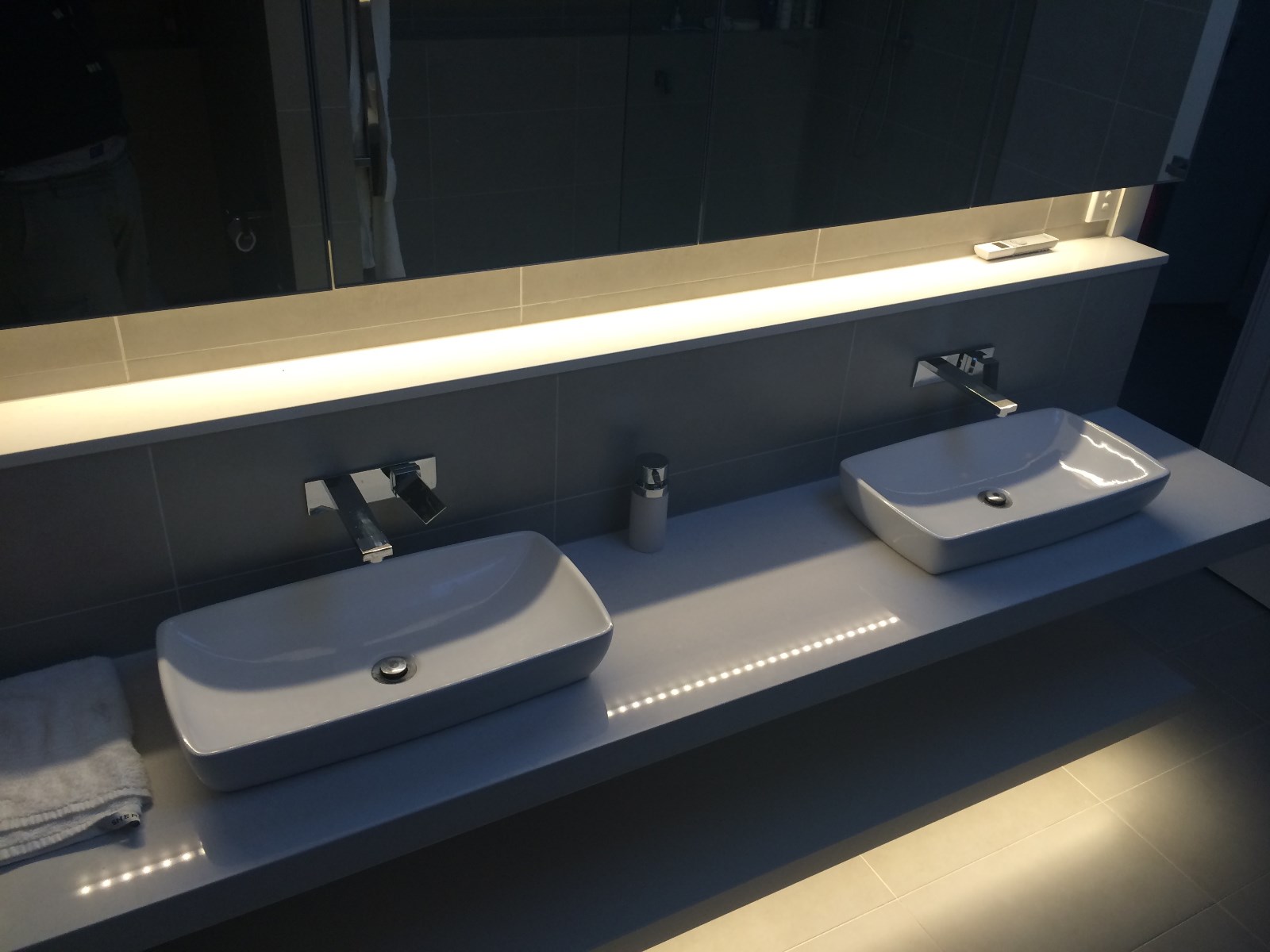

/ Application

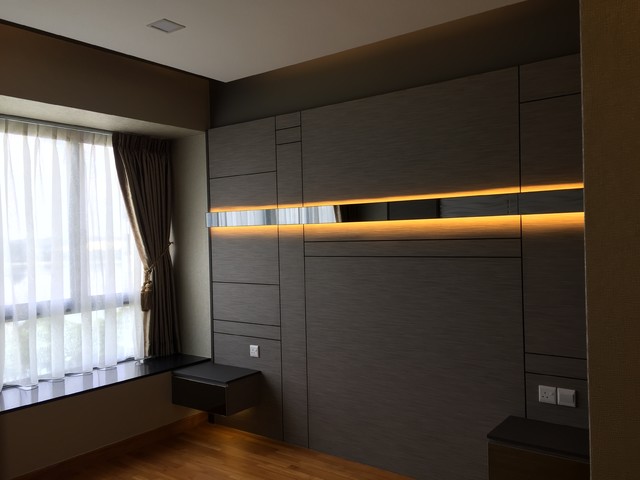

Counter lighting/light box backlight/home improvement light trough /signboard advertising lighting/Building outline lighting/stairs lighting/display lighting/cabinet lighting.
