Brand: |
none |
Address: |
China |
Min.Order: |
none |
Supply: |
none |
Valid until: |
Long Term |
Product Details
- Light Source:
- LED
- Input Voltage(V):
- DC12V/24V
- Lamp Luminous Flux(lm):
- 6000
- CRI (Ra>):
- 85
- Working Temperature(℃):
- -30 - 70
- Working Lifetime(Hour):
- 500000
- IP Rating:
- IP54
- Certification:
- CCC, CE
- Warranty(Year):
- 1
- Place of Origin:
- Guangdong, China
- Brand Name:
- BLUE
- Model Number:
- PV-SSL-60
- Color Temperature(CCT):
- Cool White
- Lamp Body Material:
- Aluminum Alloy
- LED Light Source:
- LED
- Lamp Luminous Efficiency(lm/w):
- 75
- Product name:
- solar street light
- Supply Ability:
- 400000 Set/Sets per Week solar street light
- Packaging Details
- Qty/ctn 1 1 1
- Port
- shenzhen

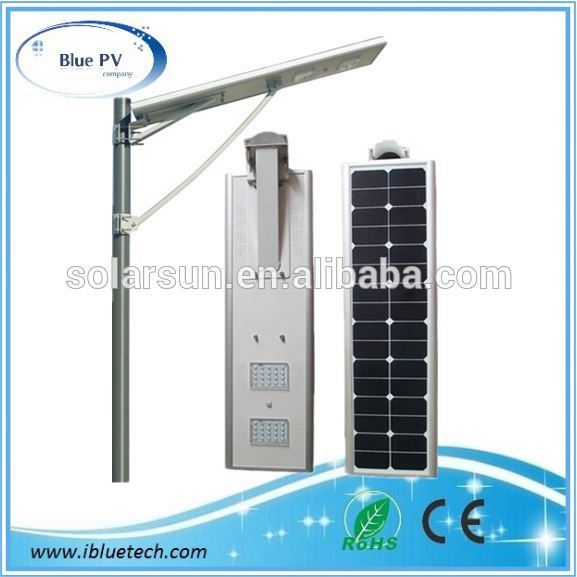

Environmental friendly All in one Solar street light
solar street light Features:
1.Using hight-grade Bridgelux leds, the luminous efficiency is over 120lm/W.
2. Using high efficient monocrystalline solar panels, solar energy conversion rate is 18%.
3. Body sensor can automatically adjust the brightness depending on the crowd change.
4. Using high-quality lithium iron phosphatebattery, the number of charge-discharge cycles is up to 1500-2000.
5. Integrated design can heip to save on shipping, easy installation.
Model | PV-SSL-5 | PV-SSL-8 | PV-SSL-12 | PV-SSL-15 | PV-SSL-20 | PV-SSL-25 |
Solar panel | 18v10w | 18v15w | 18v18w | 18v30w | 18v40w | 18v50w |
Battery | Lithum-ion 4ah | Lithum-ion 6ah | Lithum-ion 6ah | Lithum-ion 12ah | Lithum-ion 18ah | Lithum-ion 21ah |
Light source | 5W | 8W | 12W | 15W | 20W | 25W |
Human body infrared sensor | No | yes | yes | yes | yes | yes |
Lums | 500-550lm | 800-880lm | 1200-1320lm | 1500-1650lm | 2000-2200lm | 2500-2750lm |
color temperature | 6000k | 6000k | 6000k | 6000k | 6000k | 6000k |
Charging time | About 6 hours | About 6 hours | About 6 hours | About 7 hours | About 7 hours | About 7 hours |
Working time(Full power mode) | About 12 hours | About 12 hours | About 10 hours | About 15 hours | About 20 hours | About 15 hours |
Life time | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours |
Installation height range | 2.5-3.5M | 3-4M | 3-4M | 4-5M | 5-6M | 6-7M |
Working tem. | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C |
Viewing Angle | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree |
Qty/ctn | 4 | 4 | 4 | 3 | 1 | 1 |
Production size | 480*280*55mm | 540*320*55mm | 540*320*55mm | 700*420*140mm | 890*330*140mm | 1140*330*140mm |
Carton size | 500*570*370mm | 560*570*410mm | 560*570*410mm | 730*440*450mm | 955*395*210mm | 1204*395*215mm |
N.W./set | 4.5kg | 5.8kg | 5.8kg | 8kg | 12.5kg | 16kg |
G.W./ctn | 22kg | 27kg | 27kg | 28kg | 15kg | 18.5kg |
Model | PV-SSL-30 | PV-SSL-40 | PV-SSL-50 | PV-SSL-60 | PV-SSL-70 | PV-SSL-80 |
Solar panel | 18v60w | 18v60w | 18v70w | 18v80w | 18v90w | 18v100w |
Battery | Lithum-ion 24ah | Lithum-ion 27ah | Lithum-ion 30ah | Lithum-ion 33ah | Lithum-ion 39ah | Lithum-ion 42ah |
Light source | 30W | 40W | 50W | 60W | 70W | 80W |
Human body infrared sensor | yes | yes | yes | yes | yes | yes |
Lums | 3000-3300lm | 4000-4400lm | 5000-5500lm | 6000-6600lm | 7000-7700lm | 6000-6600lm |
color temperature | 6000k | 6000k | 6000k | 6000k | 6000k | 6000k |
Charging time | About 6 hours | About 6 hours | About 8 hours | About 8 hours | About 10 hours | About 10 hours |
Working time(Full power mode) | About 15 hours | About 15 hours | About 15 hours | About 15 hours | About 17 hours | About 17 hours |
Life time | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours |
Installation height range | 7-8M | 7-8M | 7-9M | 7-9M | 7-9M | 8-10M |
Working tem. | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C | -30°C~+70°C |
Viewing Angle | 120 degree | 120 degree | 120 degree | 120 degree | 121 degree | 122 degree |
Qty/ctn | 1 | 1 | 1 | 1 | 1 | 1 |
Production size | 1140*330*140mm | 1140*330*140mm | 1140*330*140mm | 1140*342*140mm | 1140*383*140mm | 1140*453*145mm |
Carton size | 1204*395*215mm | 1204*395*215mm | 1204*395*215mm | 1204*395*215mm | 1204*442*215mm | 1204*522*215mm |
N.W./set | 16.5kg | 17kg | 17kg | 18kg | 19.8kg | 20.6kg |
G.W./ctn | 19kg | 20.5kg | 20.5kg | 21.0kg | 21.8kg | 22.5kg |
Product Details
Our company main products are 2w to 300w solar power system, and also product solar lantern,solar charger,solar flashlight and solar LED lights.
We apply good quality materials, introduce advanced manufacture and test equipments and carry out strict quality control system to ensure each solar product from Blue is qualified. Our solar products have won a good reputation in both domestic and overseas markets. Up to now, we"ve exported our solar panels and solar systems to North America, South America, Europe, Africa, Southeast Asia, etc.
We believe in "Quality is life, Innovation is power, Reputation is future", and promise high quality products, competitive prices, efficient production and good after-sales service. We aim at mutual development and mutual benefits with all of our customers.
After sales services:
Our best service, warranty is 1 year for the battery,2 years for LED lamp and 20 years for solar panel.
General enquiries are handle within 24 hours and fatal issues are solved within 72 hours.
For problematic items, We are ready to exchange them or replace them with an equivalent upon ,our receipt of previous.
Every model of the products gets through strict manufacturing management process, in order to guarantee the quality or product.
We also have our professional QC Department, we will take the sample to check again before the shipment, try our best to control the ratio of the reject lowest.
For anyquestion, please contact us immediately, we are going to offer our best service to you at anytimes.
Contact:
Name : Jade Peng
Wechat :188 2387 5528
Whatsapp :+86 188 2387 5528
1. Q: Are you a factory or a trading company?
A: We are a factory with more than hundreds of employees. Welcome OEM and ODM, 5 employees which is lead by senior engineers are services for you.
2. Q: What"s the scale of your factory? And what is the annual capacity production of your company?
A: The factory building covers an area of 800 square meters, and annual output exceeds 800 million, , all products exported abroad.
3.Q: The cables that comes with the system would be standard, can they be extended in case there is the need
A: yes, we can make the length of cable according to your requirement, but there is a cost increased accordingly.
4. Q:Are the bulbs used are specially made or any normal LED bulb could be used
A: It is applied for DC12V bulbs, the output current is not over 3A for total loading bulbs. If you have DC12V bulbs, you can replace the current ones
5. Q: Should all the bulbs be of the same wattage (w)
A: No, you can use different types, but make sure that the output current is not extent over 3A.
6. Q:When it is being charged during the day with solar panel, can the AC output be used
A: The electric appliances can be used during charging, but please make sure there are power enough inside to run the appliances.
7. Q: After the battery is dead, how do you replace it?
A:For replacing battery, please open the top housing, replace a new battery, please note, please connect the cable in CORRECT color, that means Red cable connect to the Red terminal on the battery, Black cable to the Black terminal. Otherwise the PCBA will be burned. Thanks!
8. Q: The cables are standard, 5m- how do you extend the cables, ones you have received the system and you found that one or two of the rooms would need extra length to reach that room? Can you put extension cable between the bulb and the box?
A:Yes, of cause we can add extension cable in case of consumer requires more length. Our standard length is 5m, we can add another cable to connect the current 5m cable.
