Product Details

Overview

Quick Details

Place of Origin:: Hebei, China

Brand Name:: Lanyu

Model Number:: LYPR01

Plastic Modling Type:: Injection

Item:: Carbon dioxide degassing tower plastic pall ring

Size:: 16mm, 25mm, 38mm, 50mm, 76mm

Material:: PP.PE.PVC.CPVC.PVDF

Packaging:: Exported plastic bag

Sample:: Free sample of plastic pall ring

MOQ:: 1 cubic meter

Quality:: 100% new material

Supply Ability

Supply Ability:: 300 Cubic Meter/Cubic Meters per Month big capacity of pall rings with PP material

Packaging & Delivery

Packaging Details: Pall rings are always packed in ton bags or plastic bags.
If you need, we can also pack pall rings with PP material as your requirement.

Port: Shanghai

Lead Time:

Quantity(Cubic Meters)	1 - 28	29 - 65	>65
Est. Time(days)	7	10	To be negotiated

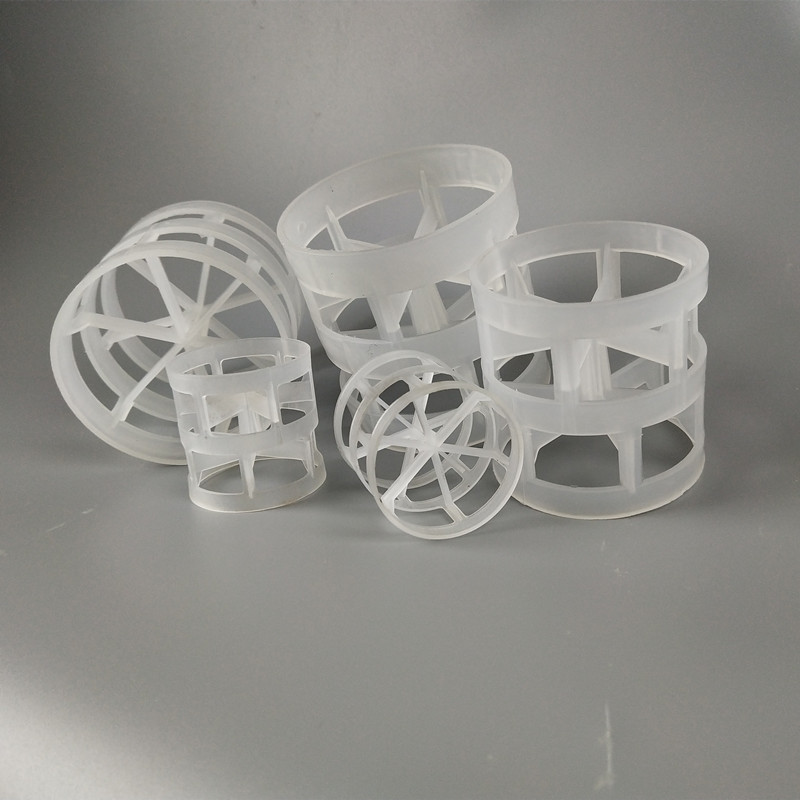

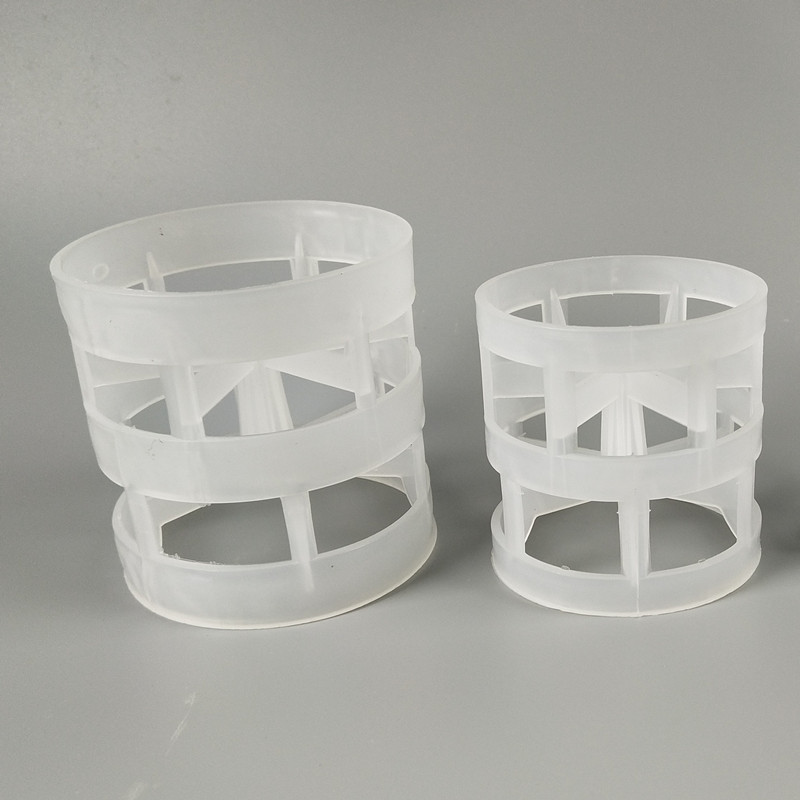

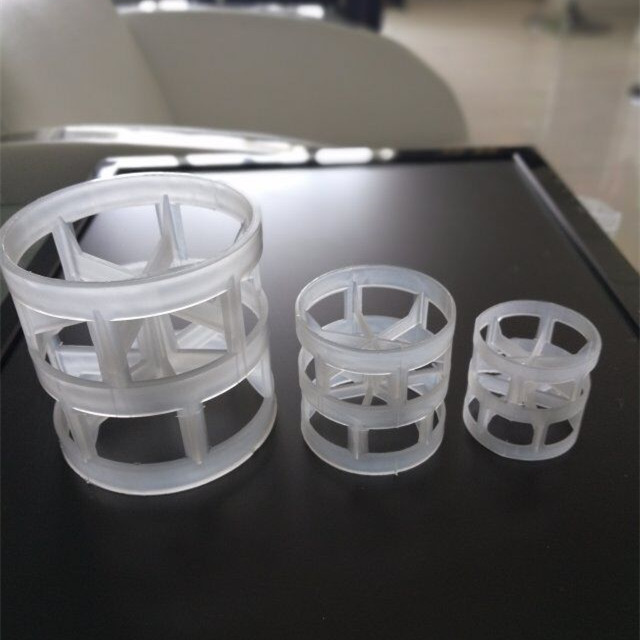

Chemical industry pall ring Carbon dioxide degassing tower plastic pall ring

Pall ring is suitable for using in petroleum, chemical, chlor-alkali, gas, environmental protection and other industries in medium and low temperature (60-150 degrees) stripping, absorption and washing towers, carbon dioxide degassing towers, ozone contact reaction towers, etc. as contact fillers and other reaction towers.

Pall Ring Features:

1. Higher capacity and lower pressure drop than ceramic packing.

2. Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.

3. Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction. 4. Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.

5. Ring and spoke construction provides high mechanical strength, which allows use in deep beds.

Technical Data

Plastic Pall Ring
Plastic Pall Ring
Material	PE,PP,RPP,PVC,CPVC,PVDF,PTFE
Size	16mm,25mm,38mm,50mm,76mm,80mm,90mm,100mm
Color	Transparent, or customized
Application	Adsorption, Scrubbing, Separation, Plastic Packed Columns, ect.
Item	Size DHT(mm)	Number per m³	Surface Area m²/m³	Free Volume %	F factor m^-1
Dg16	16x16x1.0	180000	274	90	376
Dg25	25x25x1.0	53500	213	91	285
Dg38	38x38x1.2	15800	151	91	200
Dg50	50x50x1.5	6500	100	91.5	130
Dg76	76x76x2.6	1930	72	92	9
