Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Green Lantern

Model Number:: GL-LED-DIP-F5

Type:: LED

Package Type:: Through Hole

Max. Forward Voltage:: 3.0-3.4V

Max. Reverse Voltage:: 5.0V

Max. Forward Current:: 20mA

Max. Reverse Current:: 1uA

Product name:: Factory price 5mm led diode red

Size:: 5mm

Color:: red/white/warm white/green/bule /yellow/amber

Supply Ability

Supply Ability:: 8000000 Piece/Pieces per Day Factory price 5mm led diode red

Packaging & Delivery

Packaging Details: anti-stastic bag

Port: shenzhen

Lead Time:

Quantity(Pieces)	1 - 10000	>10000
Est. Time(days)	5	To be negotiated

Clear Lens 5mm Orange Straw Hat Led Emitting Diode from Shenzhen factory

5mm straw hat led drawing:

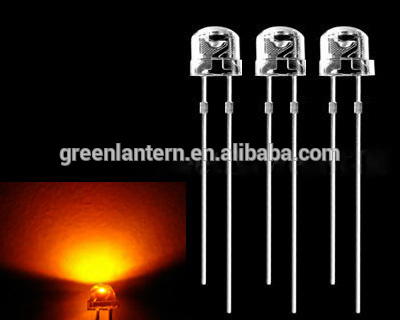

5mm straw hat led image:

Detail description of led diode:

Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Red	200-3000mcd	Straw hat	120°C	615-630nm	1.7-2.1V	15-20mA
	30-18000mcd	Round	25°C
	1000-16000mcd		45°C
	1000-16000mcd		60°C
	100-14000mcd	oval	80°C
	100-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
yellow	200-3000mcd	Straw hat	120°C	568-575nm	2.0-2.5V	15-20mA
	30-18000mcd	Round	25°C
	1000-16000mcd		45°C
	1000-16000mcd		60°C
	100-14000mcd	oval	80°C
	100-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Amber (Orange)	200-3000mcd	Straw hat	120°C	600-610nm	2.0-2.5V	15-20mA
	30-18000mcd	Round	25°C
	1000-16000mcd		45°C
	1000-16000mcd		60°C
	100-14000mcd	oval	80°C
	100-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Blue	600-4000mcd	Straw hat	120°C	460-475m	3.0-3.4V	15-20mA
	2000-16000mcd	Round	25°C
	2000-16000mcd		45°C
	2000-16000mcd		60°C
	800-14000mcd	oval	80°C
	800-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Green	600-4000mcd	Straw hat	120°C	505-530nm	3.0-3.4V	15-20mA
	2000-20000mcd	Round	25°C
	2000-18000mcd		45°C
	2000-18000mcd		60°C
	800-14000mcd	oval	80°C
	800-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
yellow-Green	10-15mcd	Straw hat	120°C	568-575nm	1.9-2.3V	15-20mA
	50-80mcd	Round	25°C
	50-80mcd		45°C
	50-80mcd		60°C
	40-60mcd	oval	80°C
	40-60mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Violet (Purple)	150-250mcd	Straw hat	120°C	360-410nm	3.0-3.4V	15-20mA
	200-300mcd	Round	25°C
	200-300mcd		45°C
	200-300mcd		60°C
	150-250mcd	oval	80°C
	150-250mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Color Temperature(k)	Voltage	Current
white	600-2500mcd	Straw hat	120°C	2800-13000K	3.0-3.4V	15-20mA
	6000-25000mcd	Round	25°C
	6000-20000mcd		45°C
	6000-20000mcd		60°C
	800-4000mcd	oval	80°C
	800-4000mcd	Square	90°C

Remarks: The led brightness,emitting color,len"s color,lumen , viewing angle can be designed according to customer"s needs.

Applications:

The display screen of indoor and outdoor

Architectural decorative lighting

Backlighting for signage letters

Portable equipment

Monitors

Traffic lights

Automotive lights

Mood lighting, LED modules

LED diodes Features

1. Chip Material: AIGalnP
2. Shape: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED, bullet LED, concave LED, rectangle LED
3. Available Size: 2mm, 3mm, 5mm, 8mm, 10mm, 12mm,20mm
4. Lens type: Water clear,colored diffuse ,color transparent
5. Emitted color: Red, White, Yellow, Orange, yellow-green, Green, Blue,Purple, RGB flash
6. Different angle available
7. Low power consumption, high intensity, uniform illumination
8. Solid-state, high shock and vibration resistant
9. Major reduction in power cost
10. No RF interference
11. Maintenance free, easy installation
12. Long life 70,000-100,000hours
13. Superior ESD protection

Advantages

1.Big order offer for free shipping by express
2.Small order available
3.Top quality raw material
4.International Approval
5.Prompt delivery
6.Guarantee/warranty
7.Excellent packaging
8.Environment friendly
9.Excellent performance
10.Good service
11.Customaries design is available, free combination
