Product Details

Overview

Quick Details

Input Voltage(V):: AC100-240V

Lamp Luminous Flux(lm):: 100

CRI (Ra>):: 80

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Install Style:: embeded/surface mounted

Lamp Luminous Efficiency(lm/w):: 1150

Color:: White/Warm white/Nature white

Beam angle(degree):: 80

PF:: >0.9

CCT:: 5000/4000/3000K

Dimmable:: Non dimmable,0/1-10V,DALI,Triac dimmable is available

Product Net weight:: 0.25kg(4")

Product Gross weight:: 0.35kg(4")

Applications:: hotel,corridor,home decoration ,shopping mall,exhibition room..

Product name:: commercial 4" recessed ceiling led light fixtures downlight 15w

Item Type:: Downlights

Certification:: ce, RoHS

Color Temperature(CCT):: PURE WHITE

Lamp Body Material:: Aluminum Alloy

Shade Type:: indent shape

Supply Ability

Supply Ability:: 600000 Piece/Pieces per Month we have stock for the home lighting and led lighting business

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

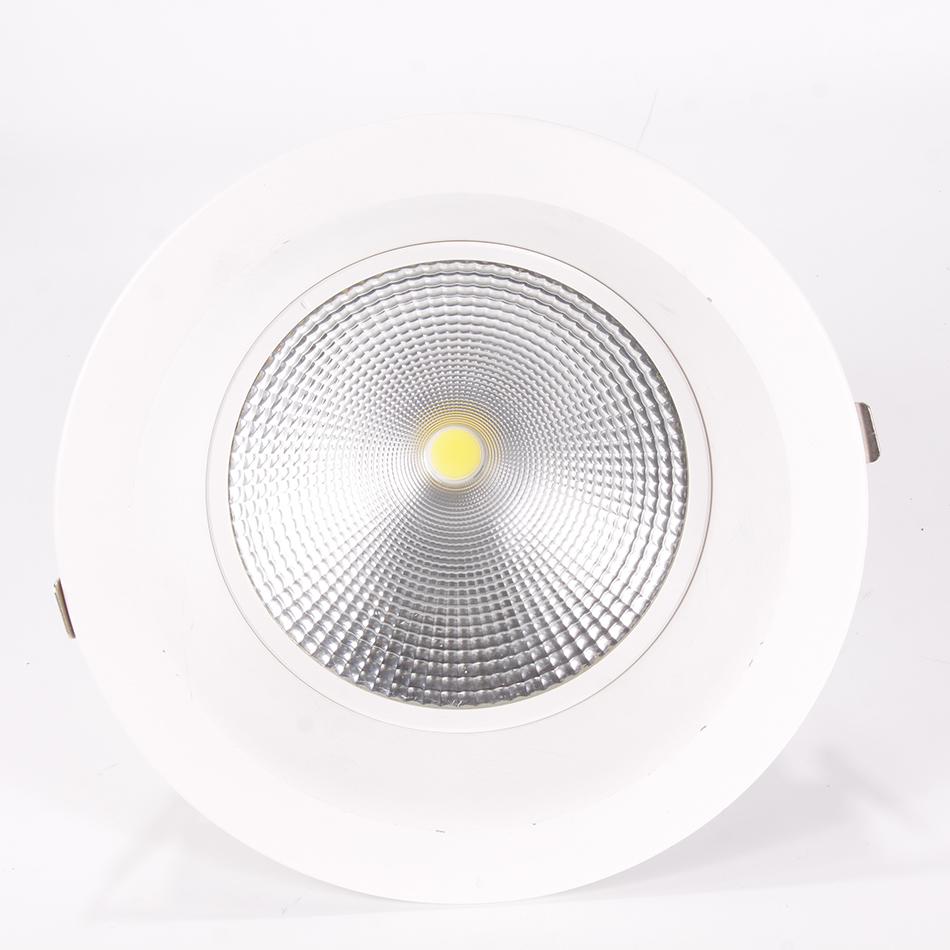

commercial 4" recessed ceiling led light fixtures downlight 15w

Dolux 3"/4"/6"/8" COB Downlight
QDL3/4/6/8-AW-01

Description :
1.Unique structure ensure optimal cooling effect and light effect;
2.Significant energy-saving ,flexible color difference control system,ensure single persistance of light and color;
3.Aluminum alloy housing,ensure high-end and gorgeous product with beautiful design;
4.Transparent and frosted glass cover for option,indent shape of glass to reach anti-glare effect;
5.Reflection cup with metal luster to improve light effect and uniformity;
6.Lifetime reach 50,000 hours.

Features of the LED recessed downlight :
1.Adopt aluminum alloy as material ,die-casting process,high-end and gorgeous;
2.Unique appearance,beautiful design and gorgeous;
3.Excellent thermal management to ensure long lifetime of LED;
4.External power supplier,ensure lifetime of power supply and LEDS
5.High efficient and energy-saving LED driver.

Application:
Suitable for hotel,corridor,home decoration ,shopping mall,exhibition room,etc.

Specification :

Model	CCT	Lumen(lm) (±10%)	Power(w) (±10%)	LED Type /Qty.	Beam angle	Voltage, Frequency	CRI	PF
QDL3-005-AW-01	5000/4000/3000	430	5	COB 1pcs	50°	AC100-240V 50/60HZ	>80	≥0.9
QDL3-007-AW-01	5000/4000/3000	500	7
QDL3-009-AW-01	5000/4000/3000	650	9
QDL3-012-AW-01	5000/4000/3000	920	12
QDL4-007-AW-01	5000/4000/3000	550	7	COB 1pcs	60°	AC100-240V 50/60HZ	>80	≥0.9
QDL4-009-AW-01	5000/4000/3000	690	9
QDL4-012-AW-01	5000/4000/3000	1000	12
QDL4-015-AW-01	5000/4000/3000	1150	15
QDL6-012-AW-01	5000/4000/3000	1150	12	COB 1pcs	60°	AC100-240V 50/60HZ	>80	≥0.9
QDL6-018-AW-01	5000/4000/3000	1700	18
QDL6-025-AW-01	5000/4000/3000	2250	25
QDL6-030-AW-01	5000/4000/3000	2850	30
QDL8-018-AW-01	5000/4000/3000	1700	18	COB 1pcs	80°	AC240V 50/60HZ	>80	≥0.9
QDL8-025-AW-01	5000/4000/3000	2350	25
QDL8-030-AW-01	5000/4000/3000	2700	30
QDL8-035-AW-01	5000/4000/3000	3150	35
