Product Details
- Warranty(Years):
- 5
- Input Voltage(V):
- 100 277V
- Lamp Luminous Efficiency(lm/w):
- 130
- CRI (Ra>):
- 85
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Stainless Steel
- IP Rating:
- IP44
- Certification:
- C-tick, CE, EMC, Energy Star, ETL, FCC, LVD, REACH, RoHS, SAA, UL, VDE
- Place of Origin:
- Guangdong, China
- Brand Name:
- Halcon
- Model Number:
- HG-L206
- Application:
- shopping mall, parking lot, office, stair,aisle, apartment
- Light Source:
- LED
- Lamp Luminous Flux(lm):
- 4400
- product name:
- linear ceiling light fixtures
- light source:
- SMD 2835
- Color Temperature:
- 4000K,5000K,6000K
- power:
- 40W,63W,85W
- size:
- 2ft,4ft,8ft
- Installation:
- Ceillingsurface mounted, suspended
- Voltage:
- 120-277V
- Optional:
- Emergency kit, motion senor
- Beam Angle:
- 110 Degree
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 126X13X10 cm
- Single gross weight:
- 3.6 kg
- Package Type:
- led lienar fixture
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 15 15 14 To be negotiated

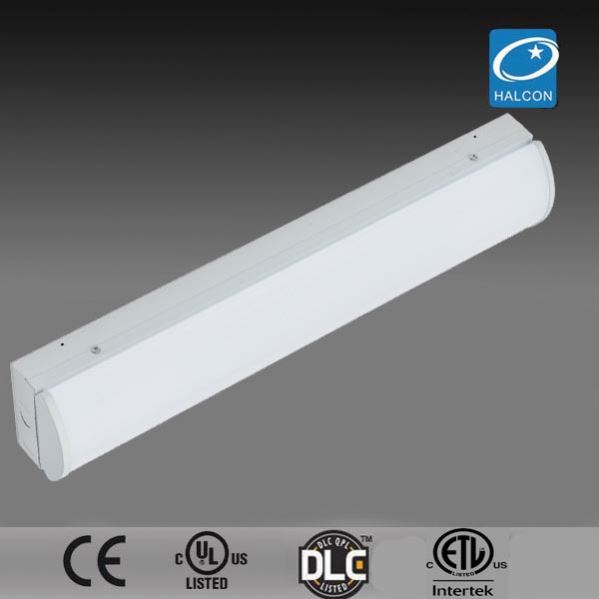

commerical lightingng 30W Led Linear Ceiling Light Fixtures Fixture
| Specifications: |
| Housing: 0.6mm thickness iron sheet with white powder coated. |
| Diffuser: 1.5mm thickness LED Frosted prismatic Polycarbonate material |
| End Caps: sheet with white powder coated |
| Electrical Components: |
| Wattage:40W,63W,85W linear ceiling light fixtures |
| LED type: SMD2835, famous brand led chip |
| Lumen: 110 lm/W 130lm/w led linear ceiling light fixture |
| Color Temperature: 3000K, 4000K & 5000K |
| Lifetime:50,000 hours |
| LED Driver: US approval listed 0-10 dimmable LED driver |
| Voltage: 120-277/60Hz 30w led linear light fixture |
| Installation: Ceiling or wall mounted. |
CONSTRUCTION Die formed of 0.6mm cold-rolled steel body All steel surface are painted after fabrication with high gloss backed white matte powder painted. High reflectance backed white acrylic paint finished High-diffusion light-milky PC diffuser
ELECTRICAL
All electrical components are US approval approved, Input Voltage from 120-277V.
SMD2835 chips, famous brand
1-10V 120-277V US approval LED Driver
5 years Warranty
LABELS
ETL and cETL Listed, approved for dry/damp location unless otherwise noted
OPTIONS:
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
| Model | Lamp | Lamp size | Package Size | pcs/ctn |
| HG-L206-24W | LED,24W | 1219x115x90mm | 1210x36540mm | 6 |
| HG-L206-40W | LED,40W | 1219x115x90mm | 1210x36540mm | 6 |
| HG-L206-63W | LED,63W | 2419X115x90mm | 2410x36540mm | 6 |
| HG-L206-85W | LED,85W | 2419X115x90mm | 2410x36540mm | 6 |
Trade Terms:
Trade Terms: FOB Zhongshan
Shipping:By sea/by air/by DHL,Fedex,UPS and so on
Ports: Zhongshan, Shenzhen, Yantian, Shekou, Guangzhou
Payment terms:T/T /L/C at sight
Sample: availiable
Production capacity:1000pcs/day
MOQ:100PCS
Sampe lead time:7-10 working days after receipt of payment
Delevery time:30-35 working days after receipt of deposit
Packing:Export carton with foam
Remarks:
1. Halcon’s business principle: honesty, efficiency, sincerity
2. Advantage: designer with over 5 years’ experience + strict control on quality +
direct factory price + excellenct commnication group
