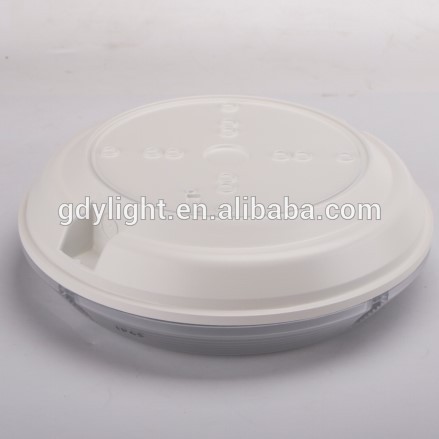

Dimming microwave motion sensor led bulkhead lighting ip65 ik10 20w/25w round surface mount led fixtures
1. Product Features
- LED lighting source, green and energy saving;
- IP65, available for outdoor use;
- Die-casting aluminum body and PC diffuser;
- 3 Hours emergency(option available);
- Microwave/ Motion sensor:
Automatic dims when detected area is unattended
Adjustable range (1-8m)
- c/w M20 x 1.5 IP65 Gland;
- Anti-glare design: against dizzy light;
- No UV, no infrared, no other hazardous substances;
- No noise, no flicker, resistance from vibration;
2. Product Specifications
| Input voltage ( 50/60Hz) | AC 100-240V |
| Power consumption | 20 W (24.5W for emergency versions) |
| Power factor(PF) | >0.9 |
| LED Driver output voltage | DC 36V |
| LED Driver output current | 500mA ±25mA |
| Light source | SMD LED |
| Color Temperature | 3000K /4000K /6000K (optional) |
| CRI | Ra>75 |
| Flux luminous | 2000 -2400Lm |
| Luminous efficacy | 120Lm /W for GL2003CA 120Lm /W for GL2003SA 110Lm /W for GL2003EA 110Lm /W for GL2003ESA |
| View angle | 120° |
| Housing material | Die-cast aluminum base , PC prismatic diffuser |
| IP Rating | IP 65 |
| Life Span | Up to 50,000 hours |
| Operation temperature | -20 deg C to 40 deg C |
| Dimension | 320*320*99mm |
| Package | 330*330*110mm |
| Net Weight | 3.05KG(approx) |
| Emergency: | |
| Type | Maintained |
| Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
| Emergency output | 30% nominal power |
| Emergency duration | >3 Hours |
| Charge time | < 12Hours |
| LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
| Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
| Microwave Sensor: | |
| Sensor range | 180 degree; 0.5 - 8M (adjustable) |
| Sensing interval | 10s to 5min max (adjustable) |
| Sensing interval output | 25% normal power |
3. Detailed Images
Mechnical structure:
Dimensions(mm):
Induction Process:
4. Application
The product can be applied as emergency and sensor corridor lighting or lobby lighting:
