Product Details

Overview

Quick Details

Brand Name:: Daier

Model Number:: MTS-202-L1-R

Max. Current:: 3A

Max. Voltage:: 250VAC

Mechanical Life:: 10000 Cycles

Item number:: Double Pole Double Throw 6Pin Toggle Switch ON ON MTS-2

Mounting size:: 12 MM

Function:: DPDTON-ON

Terminal:: Solder Terminals

Shell color:: Red

Contact Resistance:: 20mΩ max

Insulation Resistance:: 500VDC 1000MΩ min

Dielectric Strength:: 1 Minute 1500V AC

Operation Temperature:: -25°C~+85°C

Electric life:: 10,000 Cycles

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 31X17X2 cm

Gross weight per batch:: 0.995 kg

Package Type:: 100pcs a box of Double Pole Double Throw 6Pin Toggle Switch ON ON MTS-2

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	5	To be negotiated

Product Description

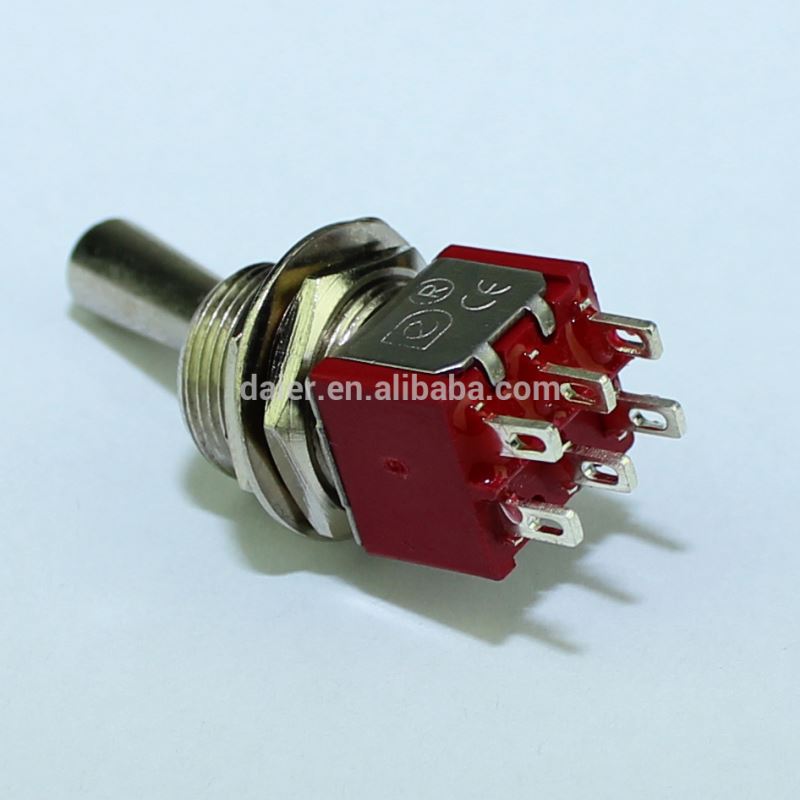

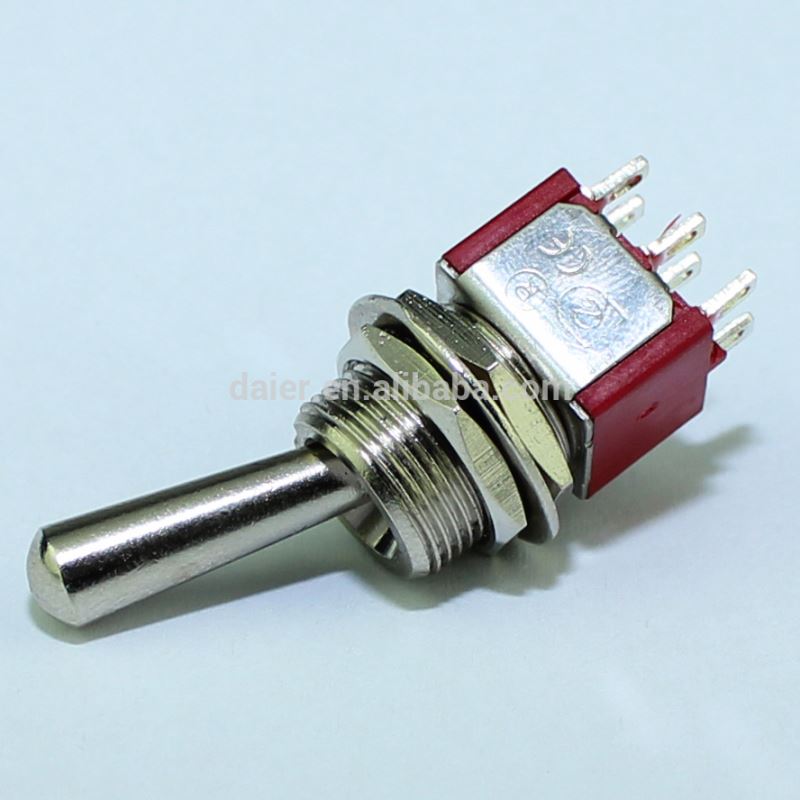

Product Name	Double Pole Double Throw 6Pin Toggle Switch ON ON MTS-2
Rating	6A 125V AC ; 3A 250V AC
Mounting Size	12 MM
Circuitry Trait	ON ON DPDT toggle switch on on mts-2
Terminal Type	Solder Terminals
Handle options	Large handle

Products Show

MTS-202-L1-R

Specifications:
1. Rating: 6A 125V AC ;3A250V AC
2. Function: ON-ON
3.Contact Resistance: 20mΩ Max
4. Insulation Resistance:500V DC 1000MΩ min
5. Dielectric Strength: 1 Minute 1500V AC
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles
