Product Details

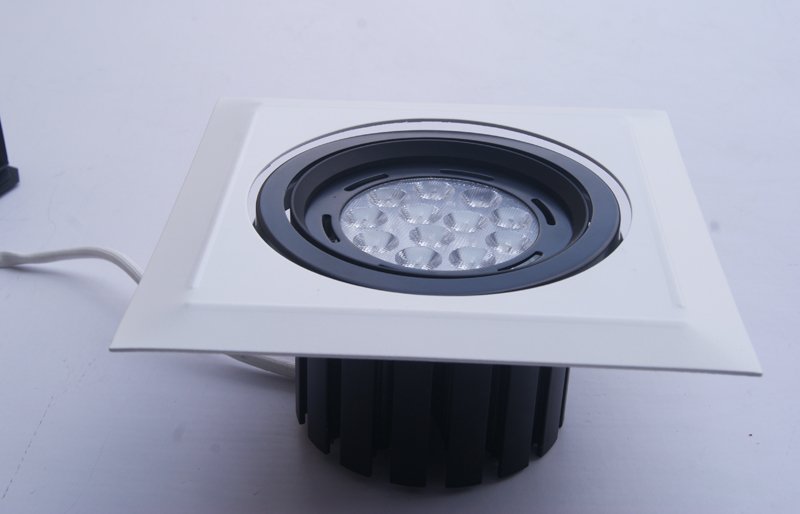

Expert Lighting Factory Hot Sale LED Recessed Lights 16W/24W CREE/SHARP DW023S-1
| Type | Wattage | Temperature | Beam | Voltage | CRI | Light source | Life(H) | Size |
| DW023S-1 | □16W | □2700K □3000K □3500K □4200K □5700K |
□10° □20° |
AC220V | ≧80 | CREE | 30000 | 175X175X91mm |
| □24W | □10° □15° □20° □30° |
Product details
Sumbao Professional LightingLED chip with high quality CREE-LED, high luminous efficacy, high rending, high temperature consistence. The light is soft, low decay, long service.
High light twin lens, designed of the second light distribution technology, Confocal reflection, high transmittance. The light is soft, spot is uniform, and it is giving customer a comfortable feeling.

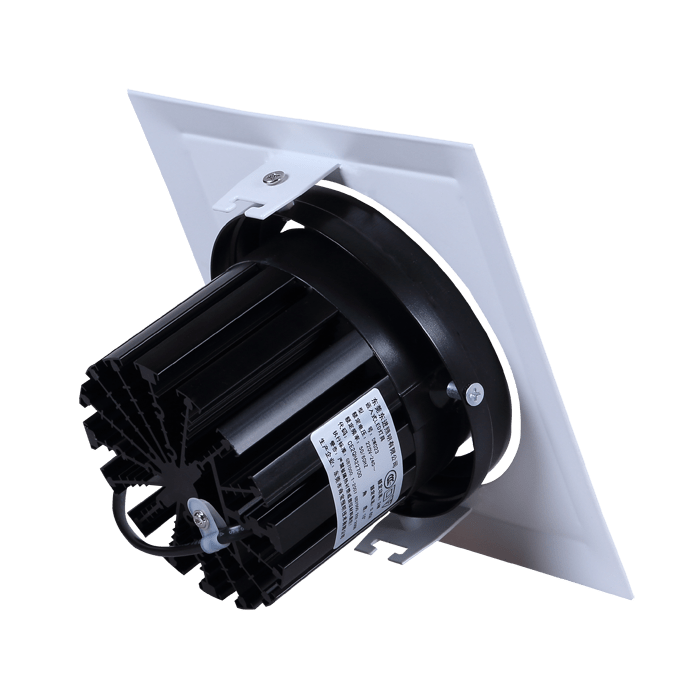

The radiator is used of ultrathin thin fin design, it is made of industrial pure Al. Fins are slim and external, but fast heat conduction speed, good heat radiating performance.
It’s made of hardware, high strength, fire retardant, and more safety.
The whole panel is used of arch design, surrounding the reinforcement design. It’s made of SPCC material, high strength, smooth lines, the appearance is beautiful. The surface is spaying powder, color and luster is uniform, easy to maintenance.
It’s made of industrial Al, the cooling area is large, the fast air flow speed, excellent heat radiation effect, so that the light has perfect control.
   |
   |
Optical parameters of product
Light distribution curve
-
AngleGraph
-
11°
-
14°
-
27°
Luminance scatter gram
The average of effective luminous
Facular color temperature contrast
-
The 3000K warm white is suitable for deep color furniture exhibition.
-
The 4000K nature white is appropriate for light color fumiture, supermarket, clothing store etc.
-
The 5700K cool white is apply for modern furnature, upscale market, exclusive shop.
Comparison of spot Angle
-
11°
-
17°
-
27°
Installation
 |
 |
| On the carrier (ceiling) according to the above size square shaped hole. | To the above picture, make the driving connected to the grid. (Electrical should turn off the power switch) |
 |
 |
| To show above, make the spring clamp pull up, pushing spring tongue up next to the square hole wall, until the lamp panel close to the ceiling. | Here the installation is completed. When you want to regulation, please use hand hold the lamp, and push it up to complete the adjustment of need angle. |
LED recessed lighting uses solid-state technology, which allows effective dimming in many applications and eliminates flickering. Use different dimmers to create zones of adjustable lighting throughout a room or home.
