Product Details
Specification

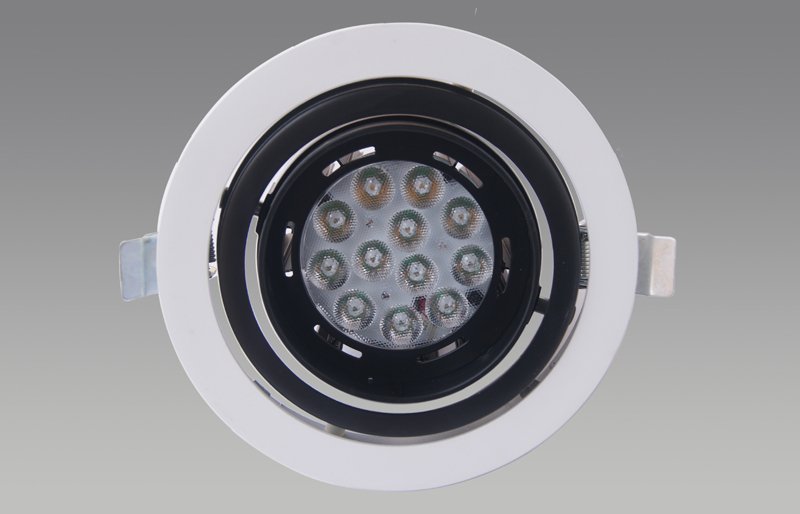

CREE-XPE DW068S New Promotion Factory Price Hot Sale Indoor Decorative Recessed Spotlight 14W/24W
|
Type |
Wattage |
Temperature |
Beam |
Voltage |
CRI |
Light source |
Life(H) |
Size |
|
DW068S |
□14W |
□2700K □3000K □3500K □4200K □5700K |
□10° |
220V |
≧80 |
CREE |
30000 |
Ø156X110mm |
|
□24W |
□10° □15° □20° □30° |
Product Details
Sumbao Professional LightingLED chip with high quality CREE-LED, high luminous efficacy, high rending, high temperature consistence. The light is soft, low decay, long service life.
High light twin lens, designed of the second light distribution technology. The light is soft, spot is uniform, and it is giving customer a comfortable feeling.

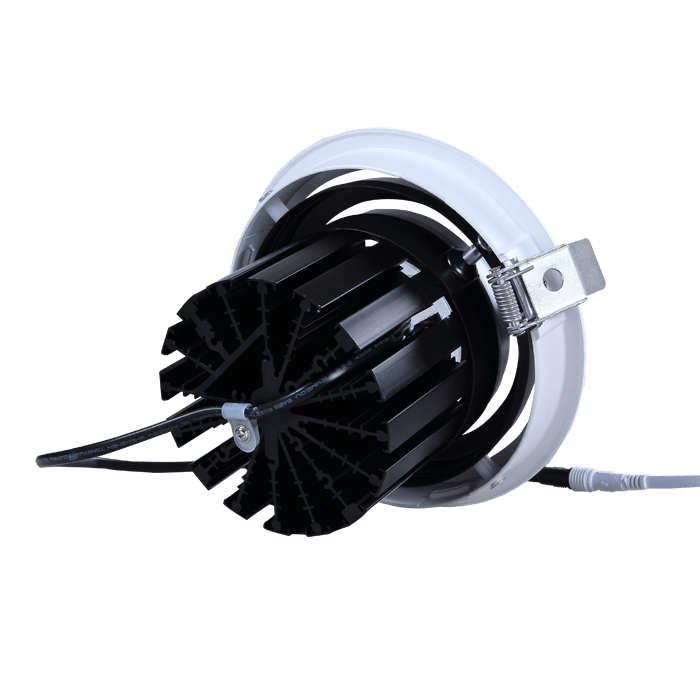

The radiator is used of ultra-thin thin fin design, it is made of industrial pure Al. Fins is slim and external, but it have fast heat conduction speed, good heat radiating performance.
The panel is die-casting of aluminum alloy, high strength, no deformation. The appearance is beautiful. The surface is spaying powder, color and luster is uniform, easy to maintenance.
It’s made of the intelligent IC and high quality electronic components, the constant current control, with over-voltage, short circuit protection. No stroboscopic, more stable performance and longer life.
Application cases
Optical parameters of product
Light distribution curve
-
AngleGraph
-
9°
-
11°
-
14°
Luminance scatter gram
The average of effective luminous
Facular color temperature contrast
-
The 3000K warm white is suitable for deep color furniture exhibition.
-
The 4200K anature white is appropriate for light color fumiture, supermarket, clothing store etc.
-
The 5700K cold white is apply for modern furnature, upscale market, exclusive shop.
Comparison of spot Angle
-
11°
-
17°
-
27°
Installation
 |
|
| On the carrier (ceiling) according to the above size square shaped hole. | To the above picture, make the driving connected to the grid. (Electrical should turn off the power switch) |
 |
|
| To show above, make the spring clamp pull up, pushing spring tongue up next to the square hole wall, until the lamp panel close to the ceiling. | Here the installation is completed. When you want to regulation, please use hand hold the lamp, and push it up to complete the adjustment of need angle. |
