Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Branch：	Array
Type：	Array
Size：	47X33X20 cm

Product Details

Overview

Quick Details

Place of Origin:: Jiangxi, China

Brand Name:: DENGFENG

Model Number:: DF

Phase:: Single Phase

Protection:: Lightning

Weight:: 1

Output Voltage:: AC100-280V/50-60HZ

Type:: Standby

Application:: Security / Monitoring / Alarm

Warranty:: 2 Years

Product name:: Battery

Battery:: With

Output power:: DC18-90V

Charging time:: ≥20 hours

Duration time:: ≥90min

Design life:: 20000hours

Packaging & Delivery

Selling Units:: Single item

Single package size:: 47X33X20 cm

Single gross weight:: 1.0 kg

Lead Time:

Quantity(Box)	1 - 100	>100
Est. Time(days)	7	To be negotiated

Product Details

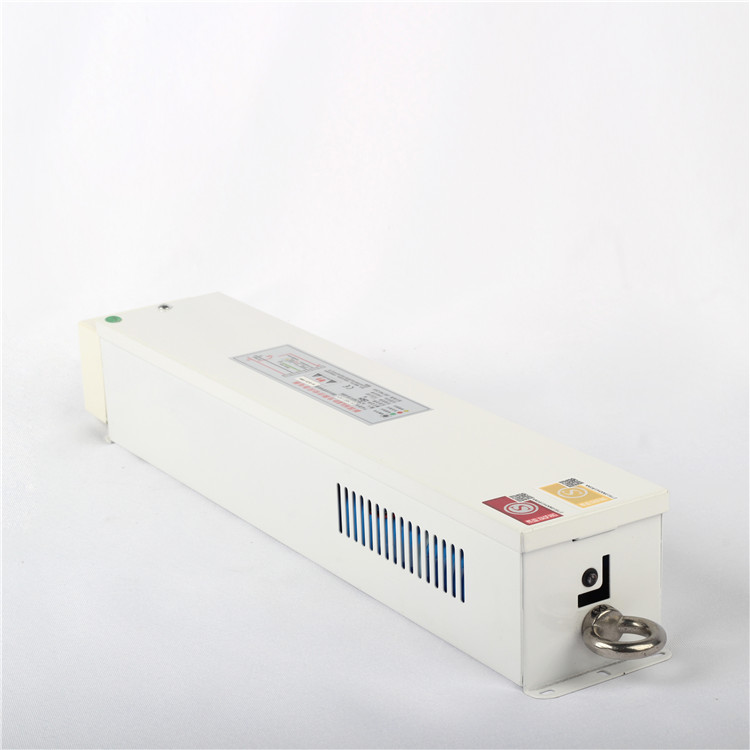

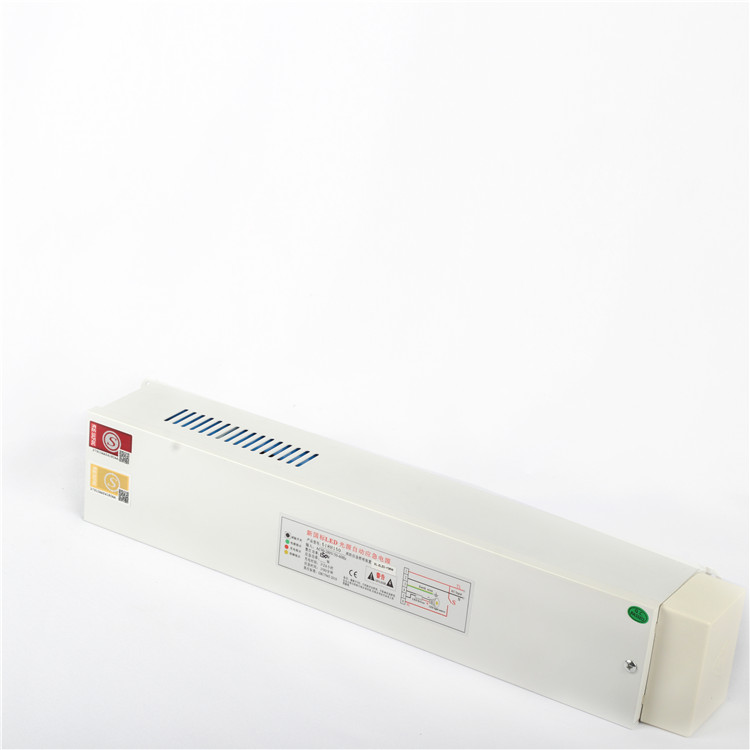

Emergency Power Supply Box:DF168-30Hemergency output 20W 1.5hrs

- DF168-30H can automatically test light chip"s series and adjust the output voltage to best match between the inverter and the load.providing 10w~25w illumination customized.
- DF168-30H uses IC control circuit,has constant output power,isolation circuit,no-load protection feature.

Product Introduction

Emergency Power Supply

1.Suitable for high-power LED flat panel lamp, downlight and other emergency lighting;
2, suitable for LED light source with external constant current source drive.
3. The battery adopts longevity military battery, nickel-cadmium battery and lithium iron phosphate battery, etc.;
4. In emergency lighting, this product can realize power reduction lighting, and the brightness of the light source is only about 50% of that of municipal lighting, which is very energy-saving and saves the cost for users as much as possible;
5, international lines, power reduction emergency lighting, thin film PC board three color indicator light detection switch;

Product Parameters

Name	Specification	Brand	Warranty time
Emergency power	20±2W	DENGFENG	2 years
Charging time	≥20 hours	DENGFENG	2 years
Power factor	≥90%	DENGFENG	2 years
