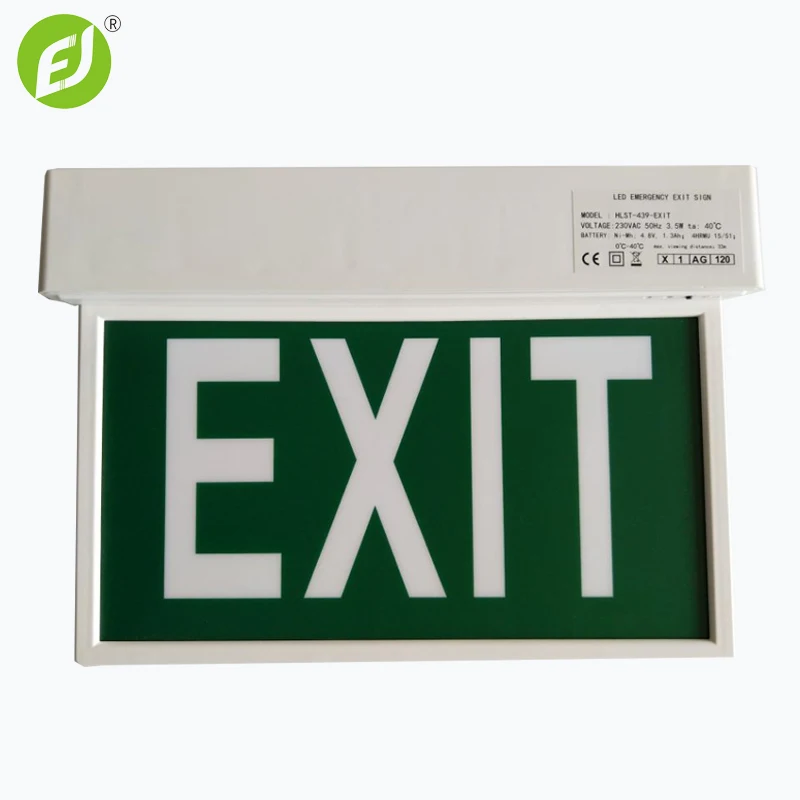

EVEN Ceiling Recessed Mounted LED Emergency Light Exit Sign LED emergency warning exit signs exit sign in emergency lights

For emergency pack,Let EVEN show one type emergency pack datasheet for your reference,if need more,pls contact us.

Description

The emergency module including emergency inverter and rechargeable battery,  Inverter automatically enable battery backup system to light on the lighting in less than 0.1 second during power off.  Green led indicator indicates battery charging and healthy status. Push test switch to stimulator main power off. The converter automatically adjusts the output LED current and keeps Fixed Voltage output to provide the best match between the battery and the load, emergency output power is same as the normal power supply.

Features

• IC controlled Dual rate Charger for energy savings.
• Short circuit protection at battery terminals.
• Battery reverse protection functionality
• Charge indicator and test button. The light fittings guarantee safety of people in buildings open to the general public.
• Automatically actuated in the event of power cuts, these devices (kit + light fitting) offer a good luminous flux to facilitate the evacuation.
• Comply with European standards EN 61 347-2-7 and offer a high level of quality and safety meeting the various prevailing regulations.
• Full emergency output ,Dial the code to suitable current of luminaires.

Shenzhen EVEN Technology Co., Ltd is the leading battery manufacturer in China, who focus on emergency Lighting Kit,LiFePO4, Li-polymer, Li-ion, NI-MH, and NI-CD rechargeable batteries, our products passed by UL, CE, ROHS and FCC certifications.

Our company has 9 years experienced in R&D about battery in mainland and 6 years export to overseas.
In our factories, which span a total of 5000m2, we can turn out over 3,000,00Ah monthly production capacity. With professional R&D team, experienced workers and advanced equipments, we are determined to provide you high-quality battery.

EVEN has development,manufacture,selling and service department as a whole.
We own our complete production techniques and superior testing device.What we make emergency pack has its practicability and easy to install.Our IC control circuit board use from import,which make sure that use more security,higher efficiency,more energy conservation and environment protection,longer life and other more advantages.So it is popular to selling in Europe,United Kingdom,Chile,Hongkong,Asia and others countries and regions.The emergency pack from EVEN both use normal commercial power and emergency power,it will be quick and automatic when it switches.

Our batteries are widely used in electronic products which include handheld device, medical equipment, GPS, electric bicycle , emergency lighting, duplicate reading battery machine , miner"s lamp, two-ways radio , outside advertising board, UPS, solar energy system, auto starting system ect.

We take humanistic management as our concept, regarding people as the most important factor in our development.We pay attention to safety & environmental protection and take the responsibility of the society. With great passion and faithfulness, we are willing to provide our customers perfect service and striding forward with you to create a bright future.

 For example low voltage emergency pack as following for your reference(more other type,pls contact EVEN :

3.Product details :

LED Strip : 24W

Output Voltage :DC12V

Output Current : 2A

4.Emergency Solution:

1. According to EN60598; EN 55015; CE;

2. Deep discharge protection

3. Operation time (discharge):1hour(Customized within 1hr)

4.Lumen Factor : 50%

5.Emergency Output:DC12V/1A

6.Matched Emergency Solution : 6V/2.5Ah Ni-CD Battery + Inverter+ Metal Box+ Inner Box

5. Dimension (mm ):

  Battery Size : C type (50 25mm/cell)

  Inverter Size : 155*40*30mm

6.Application:

Product name: Emergency module for LED Strip

7.Specifications of Drawing, Schedule and Symbols:

L = “live”wire

N= “Neutral” wire sometimes called “nil” or “0”

Switch = a mechanical device that connects or interrupts a “life”wire to the driver.

LED Driver is an electronic device that drives the LED lighting fixture with a constant current.

SL is switched Life wire connection on the LED driver

N is the Neutral connection on the LED driver

+ on the LED driver is the positive connection from driver to the LED fixture

- on the LED driver is the negative connection from driver to the LED fixture

5.Usage range :

1Hotels

2Conference/Meeting rooms

3Factories & Offices

4Commercial Purposes

5Residential/Institution Buildings

6Schools, Colleges & Universities

7Hospitals

8Places where energy saving and high color rendering index lightings are required

9.Installation Instruction:

-Connection 1 is used for safety ground (earth)

-Connection 2 is used for connecting to the life wire of the buildings electricity network before the

switch, sensing if the life wire is “alife”

-Connection 3 is used for connecting the neutral of the buildings electricity network

-Connection 4, 5 and 6 are not used. Or connect “L” of building electricity to connection 4(SL),

and connect Driver “L”,”N”with connection 5 and 6.

-Connection 7 and 8 have a test switch

-Connection 9 (positive +) and 10 (negative -) for connecting a control LED meaning Life

electricity is connected and “alive”.

-Connection 11 (positive +) and 12 (negative -) are used to connect the battery for emergency

operation.

-Connection 13 (positive +) and 14 (negative -) are used to connect the LED system driver.

-Connection 15 (positive +) and 16 (negative -) are used to connect the LED fixture to the current driver of the module.

10.Operation

The module is capable of testing the performance of the emergency luminaire in accordance with

IEC EN61347-2-7 & EN61347-2-13.

11.Commissioning Test

Connection of the mains supply will initiate commissioning where the battery will remain on charge for an uninterrupted 24 hours. An interruption of the mains supply will impact the accuracy of emergency running duration.

12.Functional test

This test can be initiated manually by pressing the Testing Button.

13.Duration Test

A full rated duration test is carried out after charge the battery for 24 hours.

Note that start times of the tests are set based on the battery capacity.

14.Charge LED Indicator

A range of LEDs are available in red or green, diffused or clear high intensity, with or without a fitted rubber bezel or plastic clip and with various lead lengths.Check the LED charge indicator is on with the mains present and battery is being charged while inverter is working well.

Attentions:

-          Pay extra attention to the negative and the positive pole of the battery in order to prevent

reverse operation, please use designated and matching batteries and ensure all wiring is done

correctly and stable before use.

-  If you need to do product testing, unplug the battery pack when the emergency device is

disconnected from the mains supply, and then plug in the battery after the emergency device is

completely shut down.

-           Comply with the wiring connection circuit diagram completely, prevent from over loading and

non loading in the process of use and testing.

-          In order to prolong the battery powered lighting time, all indicator lights are switched off

during normal use with the emergency power system in standby mode.

-           The battery is not charged before leaving the factory; please charge the battery longer than 24

hours before use.

-          In general, the battery needs to be fully charged and discharged for around 3- 5 times in order

for the Ni-CD/Ni-MH battery to operate at full capacity.

8-  It is detrimental for the Ni-CD/Ni-MH battery to lie idle for a long time, especially when it runs

dead. Charge the battery completely when it is out of operation for a long time. (The battery cannot

lie idle for more than three months)

Important:

It is recommended that the module is installed by a competent person ensuring the installation complies with the necessary standards. EVEN accepts no responsibility for injury, damage or loss, which may arise as a result of incorrect installation, operation or maintenance. the conversion requires an unswitched supply for charging the battery and a switched supply for a maintained conversion.Ensure that the finished converted luminaire operates within the module and battery temperature ratings.Ensure that the original luminaire components are still operating within their temperature ratings.

Note the production date of the battery.

-Charge the battery completely when it is out of operation over 3 month.

-Check the emergency module functionality for 3 month intervals.

-Replace the battery every 3 years interval
