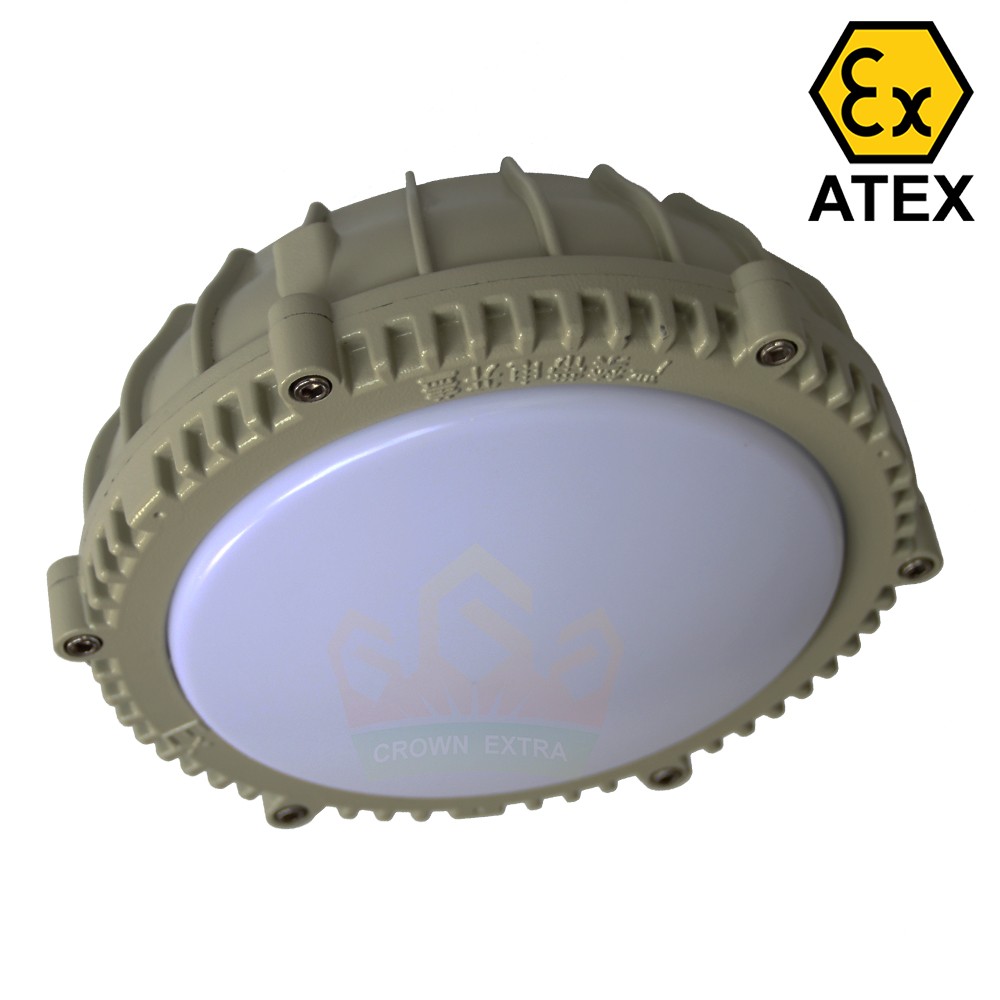

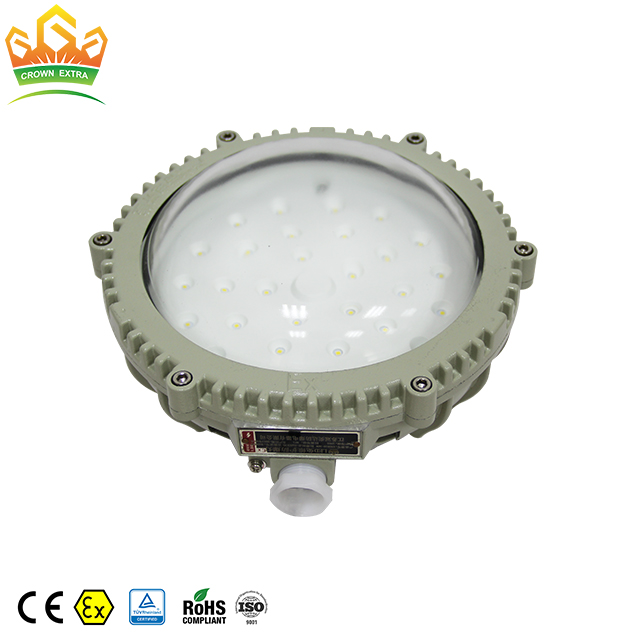

Explosion Proof 20W ~30W LED Marie Light Fixtures - Zone 1&2 - Ceiling - 110-240Vac - 4500K 6500K

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 16:27

Other Products
GYD8000 one light granule explosion proof led head light
¥Negotiable 8Views

GYD8000 one light granule ex

Recommend
GYD8002 one light granule explosion proof led torchlight head light
¥Negotiable 8Views

GYD8002 one light granule ex

Recommend
GYD7601 one light explosion proof led searchlight
¥Negotiable 8Views

GYD7601 one light explosion

Recommend
GYD8001 one light granule explosion proof led searchlight
¥Negotiable 8Views

GYD8001 one light granule ex

Recommend
GYD7301 one light explosion proof led searchlight
¥Negotiable 10Views

GYD7301 one light explosion

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Input Voltage(V):
AC85-265V
Lamp Power(W):
25
CRI (Ra>):
0.98
Lamp Luminous Flux(lm):
2200
IP Rating:
IP66
Working Lifetime(Hour):
100000
Working Temperature(℃):
-50 - 60
Certification:
CE, RoHS
Place of Origin:
Jiangsu, China
Base Type:
LED CHIP
Brand Name:
Crown Extra
Light Source:
LED
Driver:
Meanwell Driver
features:
explosion proof
Power range:
12w, 18W
Ex-mark:
ExdIICT6
Corrosion-proof grade:
WF2
housing material:
Aluminum alloy
surface shell:
tempered glass
warranty:
3year
Supply Ability
Supply Ability:
50 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing
Port
Shanghai
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)7To be negotiated
Certifications
Description

New design wall mounting explosion proof lamp with low price
wall mounting explosion proof lamp

Standard Material

Housing: copperfree aluminium (AlSi12) with epoxy powdered coated (RAL7035)

Exterior: stainless steel

Globe: tempered glass

Gasket: Silicon rubber

Lamp
Lamp specification
Lamp power
Liht efficiancy
LED driver

Colour temperature (CCT)

International brand of integrated
12w, 18w
110 Lm/W
IP67, wide voltage input, CC-CV (constant current - constant voltage) output, power factor >0.95, with function of overcurrent, overvoltage
Cool white: 5400-6500K
Note: cool white is available in general, warm white (2700-3500K) or nature white (4700-5400K) is optional
Explosion protection
Classification
Installation
Ex d IIC T6
Group II Category 2GD
Zone 1 - Zone 2 (gas), Zone 21 - Zone 22 (dust)
Certification
Standard
ATEX ECM 1C160628.CEL39     CNEX 8141020X
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
GB 3836., GB3836.2, GB3836.3, GB12476.1
Ingress protection
IP65, IP66 (optional)
Corrosion resistant
WF2
Rated voltage
90-305VDC, 50-60Hz
Cable entries
M25x1.5, G3/4"
Mounting
Pendant, ceiling, wall bracket, stanchion
Model No.
GYD910
Ex Marking
Ex d IIC T6
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22
IP Degree
IP66
Corrosion Resistant
WF2
Input Voltage
90-264VAC,  50/60 Hz
Power Factor
0.98
Conduit Entries
G 3/4"
Power Supply
12w, 18w
Lumen
1440-2160lm
Light Source
LED brand: Bridgelux, Cree
Mounting Styles
Pendant; Ceiling; Wall Bracket;Stanchion
Details
Application

Petrochemical plant

Marine

Oil Refinery

Paper Mill

Barn

Power Station

Applications for wall mounting explosion proof lamp:

— A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
— Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
— Areas with high energy costs
— Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation

Process
Installation
No.
Name
Remark
No.
Name
Remark
1
expansion bolt
Provided by user
9
elbow pipe 120°
2
pole
G3/4”
10
fence mounted type pole
G1 1/4”
3
lamp
11
pipe clamp
4
ex junction box
purchase seperate
12
bent pole
G1 1/4”
5
ex connector
purchase seperate
13
flange mounted type pole
G1 1/2”
6
elbow pipe90°
14
fence
Provided by user
7
pull-rod with nut
15
fasten bracket
Provided by user
8
hook
16
ex connector
G3/4”
Company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in industrial lighting since 2011.
2 OEM & ODM is welcome, more than 100pcs can help put your logo without extra charge.
3 Sample is available, you can get sample on hands in 5-8 days after payment.
4 Fast service and on-time delivery
5 Factory price


Welcome your inspection of our factory

About 1 hrs from Shanghai to our factory

FAQ

Q1. What are your terms of packing?
A: Generally, we pack our goods in corrugated carton or wooden box, suitable for shipping container.

Q2. What is your terms of payment?
A: L/C, 100% T/T in advance or T/T 30% as deposit, and 70% before delivery.

Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A1: We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers" benefit;
A2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
