1. The housing is strong enough to withstand the pressure of explosion.
2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
Application
Flammable Gas
Hydrogen, etc.
Flammable Liquids/Vapors
Hydrocarbons such as ether, acetone, lighter fluids, etc.
Flammable Solids
Dust, fiber, and flyings
Branch | Explosion Hazard | Branch | Explosion Hazard |
Chemical Industry | Flammable Gases/Liquids/Solids | Paint-spraying | Overspray in Spray-paint Bays Solvent Vapor Emissions |
Landfills Civil Engineering | Flammable Landfill Gases Uncontrolled Gas Emissions Flammable Gas from poor ventillation sources | Agriculture | Bio-gas Production Plants Bio-gas Located on Farms |
Power Generation | Lump Coal Dust | Metal-work | Explosive Metal Dust Spark-ignitable Metal Dust |
Waste Disposal | Waste-water Treatment Gasses | Food/Beverage | Overspray in Spray-paint Bays Solvent Vapor Emissions |
Gas Suppliers | Natural Gas Leagage Natural Gas Emissions | Pharmaceutical | Alcohol Solvents Materials explosive when mixed |
Woodworking Industry | Saw Dust Fine Wood Chips | Refinery | Hydorocarbons close to their flash-points Oil Processing Plants |
That's when you need an explosion proof light
If there are such flammable substances exist in your location.
Related Products
Technical Data

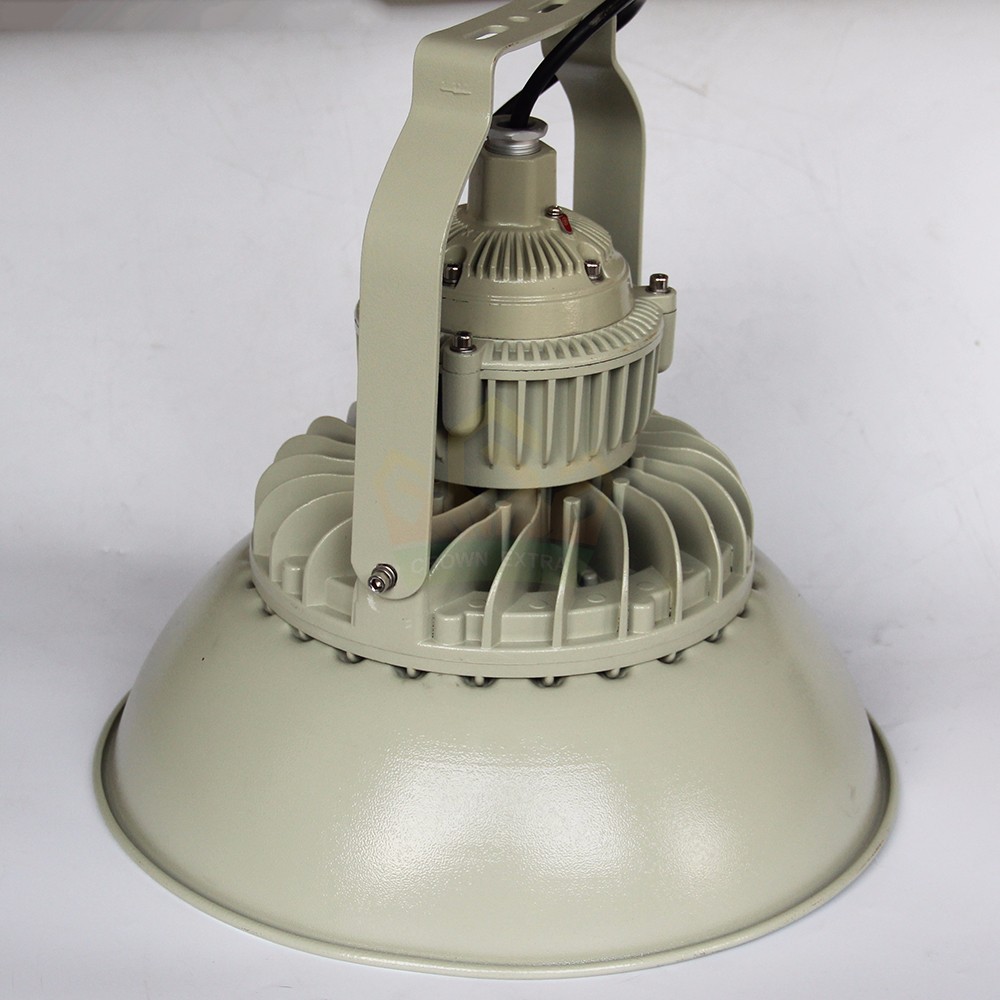

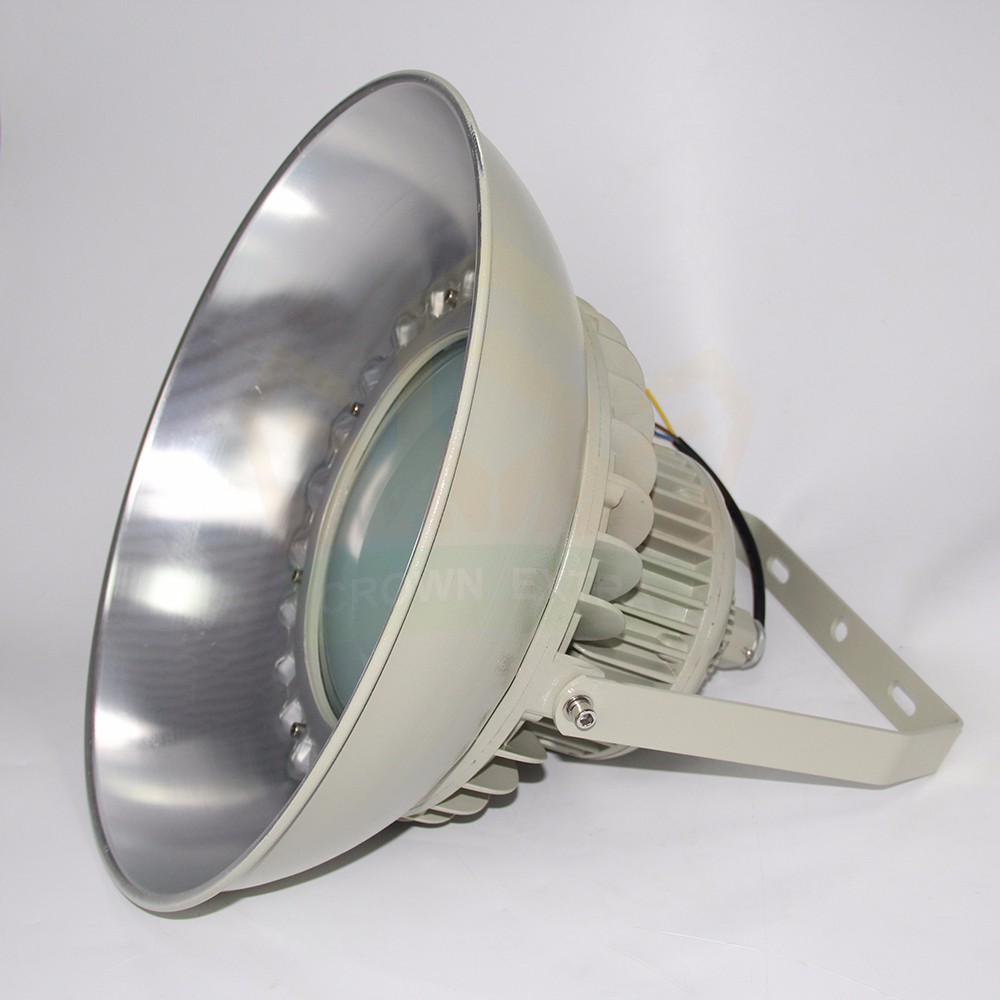

Name | Explosion Proof LED Lighting |
Type | GYD2106Z |
Protection | EEx d e mb IIC T6 2GD, IP66 |
Classification | Zone 1, 2 & Zone 21, 22 |
Input Voltage | 100-240VAC, 50/60 Hz |
Power Supply | 20-50Watt |
Efficacy | 100-130 Lm/W, LED itself 145-160Lm/W |
Beam Angle | 110°/120° |
Certificate | CE/RoHS/ATEX/CNEX |
Mounting | Street, Ceiling, Pedant, Stanchion |
Warranty | 5-year |
GYD97 LED EXPLOSION PROOF LIGHT SERIES
GYD2106Z | GYD2107Z | GYD2108Z |
20-50Watt | 60-90Watt | 100-150Watt |
18 CREE XTE CHIPS | 30 CREE XTE CHIPS | 50 CREE XTE CHIPS |
4.5 kg（9.9 lb） | 5 kg (11 lb) | 9.1 kg (20 lb) |
310mm*320mm | 410mm*370mm | 470mm*360mm |
Details
Accessory | Material what we use | Performance |
Thick Aluminium Housing | Dense radiator, AlSi12 | Good strength and heat dissipation |
Epoxy powder coated | Light grey RAL7035 | Corrosion Resistant |
Transparent | Tempered Glass 10 mm thick | High transimittance |
Heat conductive grease | Low sulfide, overspread enclosure | Good Heat dissipation |
Fasteners | Stainless steel | Corrosion Resistant |
Sealing ring | Silicon rubber | Water proof, ageing resistant |
Reflector | Nanometer | 2% light loss (Normal one is for 10-12%) |
LED chips | USA CREE XTE | Cree's chip is encapsulated by their own factory |
PCB Board | Superconducting 2.0 | Excellent heat dissipation |
IP67 Isolated Driver | Short-circuit, over-voltage, over-temperature protection | Water proof, stable performance |
Why the light is explosion proof?
Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.
What is the advantage of nanometer reflector?
1. Nanometer reflector is thin and good for light distribution. The material of nanometer is for just 2% light loss and environmentally friendly.
2. The thickness of old electroplate reflector is about 1 mm and the light could not radiate effectively. Besides, the light loss of this material is about 10-12%.
Free Service We Could Provide
1. DIALUX simulation service
2. IES file
3. LM-80 Report of led chip
4. Test Report of integrating sphere
5. Product Brochure with your contact information to help you expand localized market
Customized Service
1. Led chip: CREE-XPG, PHILIP 3030/5050, OSRAM 3030, CTIZEN
2. LED Driver: Meanwell， Inventronics
3. CCT: 4000-4500K, 5000K
4. Color of the epoxy powder
5. Emergency function
6. Nameplate and Packing
Installation
Guide of selection
Step 1
What's the explosive dangers presented in your location? - Dust or Gas
How often the flammable substances be presented? - Zone 0,1, 2 or Zone 20, 21, 22
What's the ignition temperature? -85/100/135/200/300/450 ℃
Step 2
Choose the available explosion proof type of the explosion proof lighting.
Step 3
What's the illumination area, installation height, the brightness requirement? - Specify the total lumen, the light beam angle
What's the mounting type? - Street, Ceiling, Pendant or Stanchion
What's appearance? - Round or Square?
Company
Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 6 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.
5 Factory price
Welcome your inspection of our factory or meet on Exhibition
About 1 hrs from Shanghai to our factory
FAQ
Payment Terms
1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.
Shipping Terms
1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.
3.Carton or Wooden box packing.
Others
1. OEM & ODM are available.
2. Warranty: 3-5 Year
3. No MOQ
4. Lead time: 3-7 days
