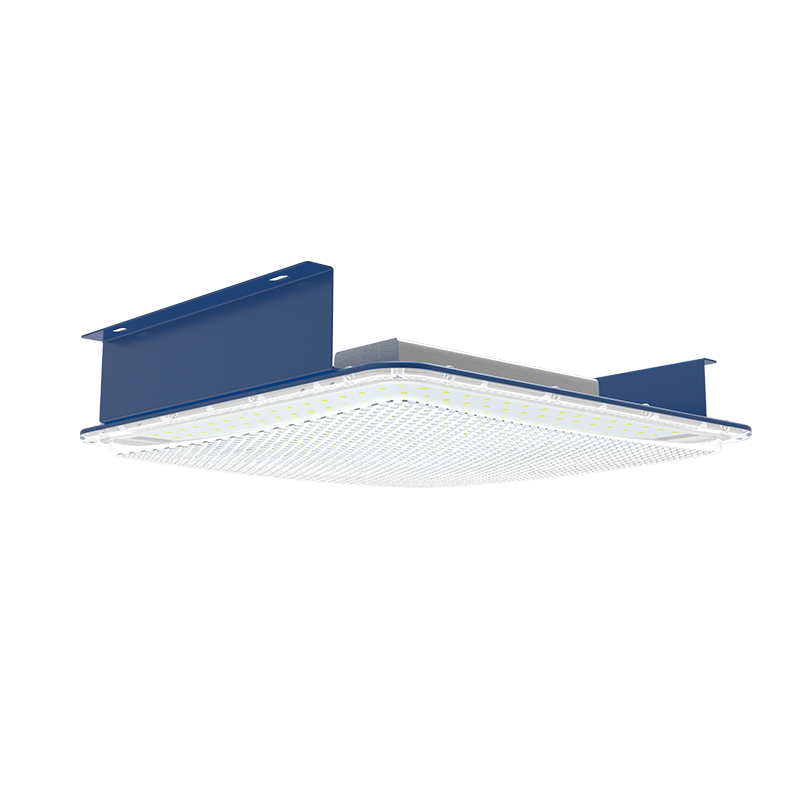

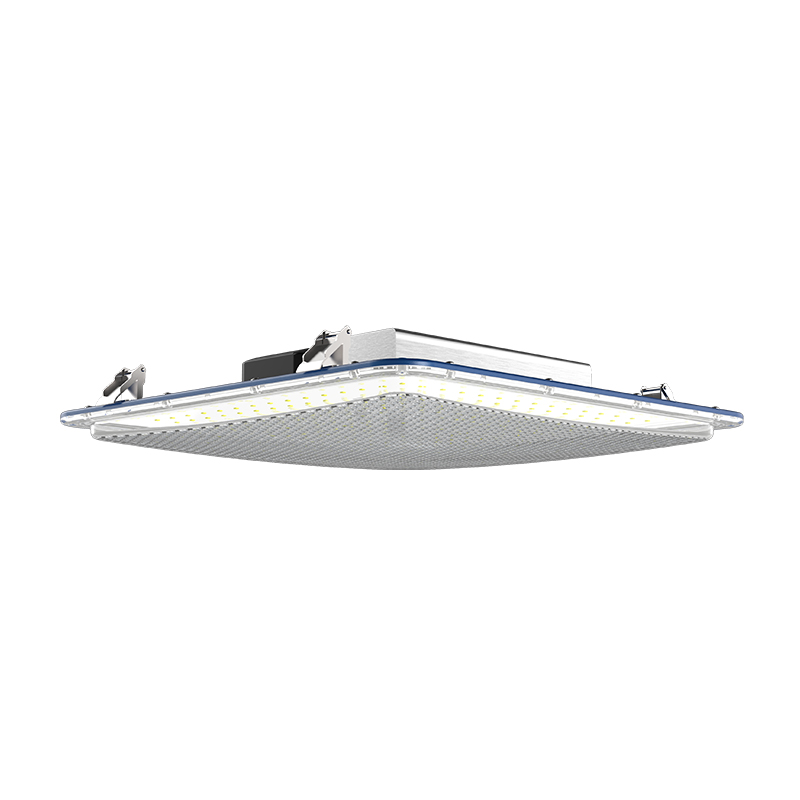

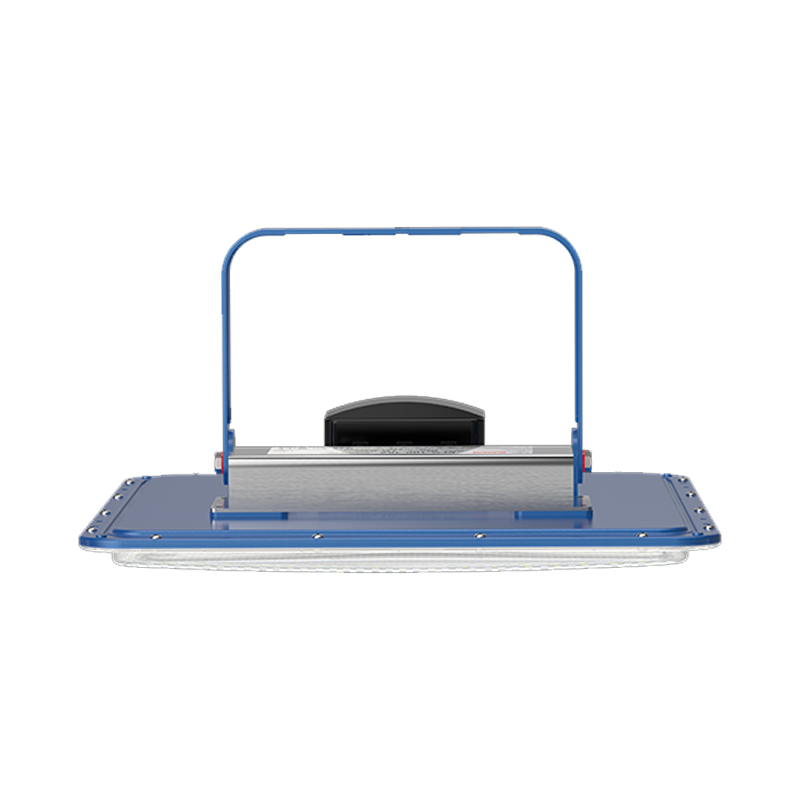

Flat Canopy LED High Bay Light - GSL Series

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Shenzhen

  • Categories:Professional Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:45

Other Products
Soft light LED High Bay Light With Shading design- HBX Sereis
¥Negotiable 47Views

Soft light LED High Bay Ligh

Recommend
FLX LED Flood Light
¥Negotiable 22Views

FLX LED Flood Light

Recommend
LED Stadium Light-XJ-TFL480W
¥Negotiable 45Views

LED Stadium Light-XJ-TFL480W

Recommend
New UFO High Bay 150LM/W HBT-L Series
¥Negotiable 18Views

New UFO High Bay 150LM/W HBT

Recommend
New UFO High Bay 150LM/W HBT-H Series
¥Negotiable 21Views

New UFO High Bay 150LM/W HBT

Recommend
You may like
¥Negotiable 21Views

Led Light Up Dog Collar

Recommend
¥Negotiable 10Views

led street light housing IP65 30w 50w cheap price

Recommend
¥Negotiable 18Views

led RGB colorful pet collar AIDI-C6

Recommend
¥Negotiable 20Views

LED High Bay Light Housing 8004D60

Recommend
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Shenzhen

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details


Patent design with ultra slim heatsink and ultra large area PCB--0.14㎡,makes XJ-GSL have superior cooling also top efficiency.Various installation help you with any application.PC reflector make you feel light can be so soft either commercial or industry.

PRODUCT PARAMETER


Data   SpecificationsGSL series
Power80W100W130W150W180W200W
Input VoltageAC100-180V60W AC200-305V80W 50/60HzAC100-180V70W AC200-305V100W 50/60HzAC100-180V90W AC200-305V130W 50/60HzAC100-180V105W AC200-305V150W 50/60HzAC100-180V130W AC200-305V180W 50/60HzAC100-180V140W AC200-305V200W 50/60Hz
Output VoltageDC39-42V
color temperature2800-3200 /4000-4500 /5500-6000K
CRIRa>70 & Ra>80
Average Beam angle(50%)110°
Light Efficiencywhole lamp output 130-140lm/w
Lumens80W10800lm 100W13500lm130W17550lm150W20250lm180W24300lm 200W27000lm
LED182 ( Tiandian 3030) pcs231 ( Tiandian 3030) pcs329 ( Tiandian 3030) pcs
DriverMEANWELL ELG-100-48AMEANWELL ELG-150-48AMEANWELL ELG-240-48A
UGR20
Power Factor(Typ)0.95
Operating Temperature-4070 ℃)(Lowest operation temp -40°C, and highest 70°C)
Ip ratethe waterproof grade IP65 ,can work outdoor   under rain
Life Span50000Hrs (L70B50>50,000hrs)
Main MaterialsAluminum, LED,Plastic
Operating Humidity20%95%
Storage Temperature(-4090 )
Lumen Maintenance>85%(5000Hrs)
Others
Replace Traditional lamp80W200W100W250W(HPS ,MH, HID)130W325W150W375W(HPS ,MH, HID)180W450W200W500W(HPS ,MH, HID)
Energy Saving60%
Lux on 5 meter

80W=164.71lx100W=197.81lx

(lux at   ground  from 5m high)

130W=262.41lx150W=295.51lx

(lux at   ground from 5m high)

180W=356.81lx200W=389.91lx

 (lux at   ground from 5m high)

Lux on 10 meter

80W=41.19lx100W=49.46lx

(lux at ground from 10m high)

130W=65.91lx150W=73.88lx

(lux at ground from 10m high)

180W=89.20lx200W=97.17lx

(lux at ground from 10m high)

Temperature on housing Max

80W=51.6 °C100W=53.8°C

(Test environment temperature 25 °C)

130W=62.3 °C150W=69.3 °C

(Test environment temperature 25 °C)

180W=73.7°C200W=76.8 °C

(Test environment temperature 25 °C

Temperature on LED Max

80W=52.5 °C100W=65.2 °C

(Test environment temperature 25 °C

130W=64.4 °C150W=71.5°C

(Test environment temperature 25 °C

180W=78.3°C200W=80.8 °C

(Test environment temperature 25 °C)

Temperature on Driver Max

80W=49 °C100W=51°C

(Test environment temperature 25 °C

130W=57.7 °C150W=65.3 °C

(Test environment temperature 25 °C)

180W=67.7 °C200W=67.6 °C

(Test environment temperature 25 °C

Net weight3.35 Kgs (without package)3.5 Kgs (without package)4 Kgs (without package)
Gross Weight(Kgs)4.4Kgs (with package)4.5 Kgs (with package)5 Kgs (with package)
Package Size460*460*142mm460*460*142mm460*460*142mm
InstallationsSurface,Recessed,Hook,Suspension,Ceiling,Closed

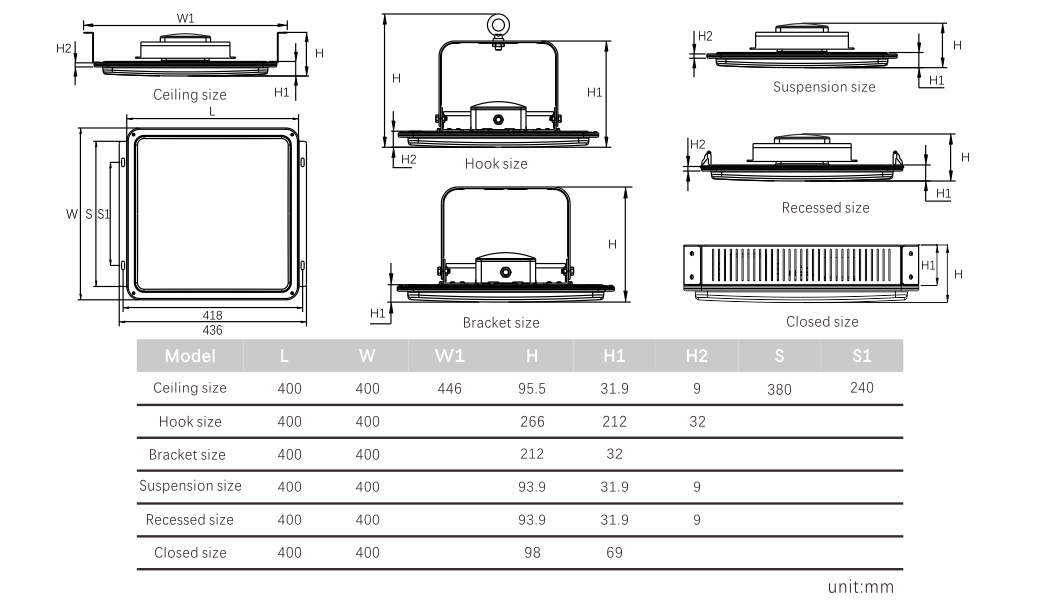

 PRODUCT SIZE



PRODUCT DETAILS

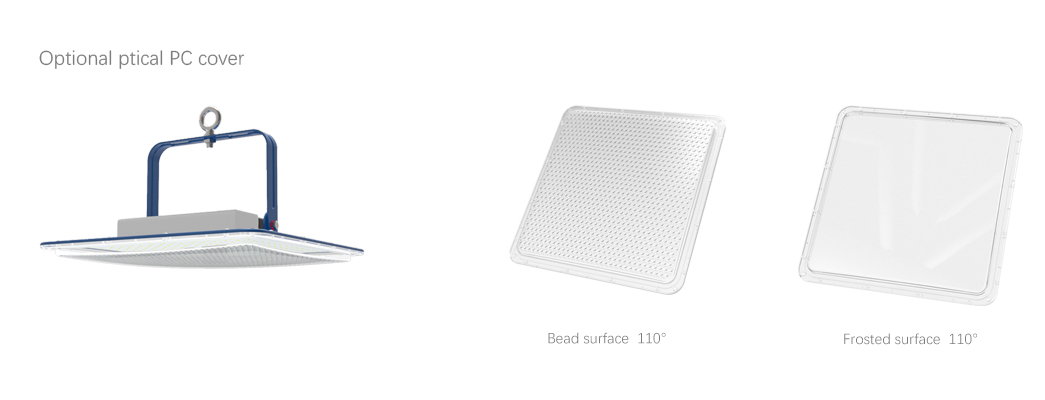

                     GSL series industrial and mining lamp, has a variety of installation accessories to choose, making flexible, while

                     satisfying customers with various installation sites.

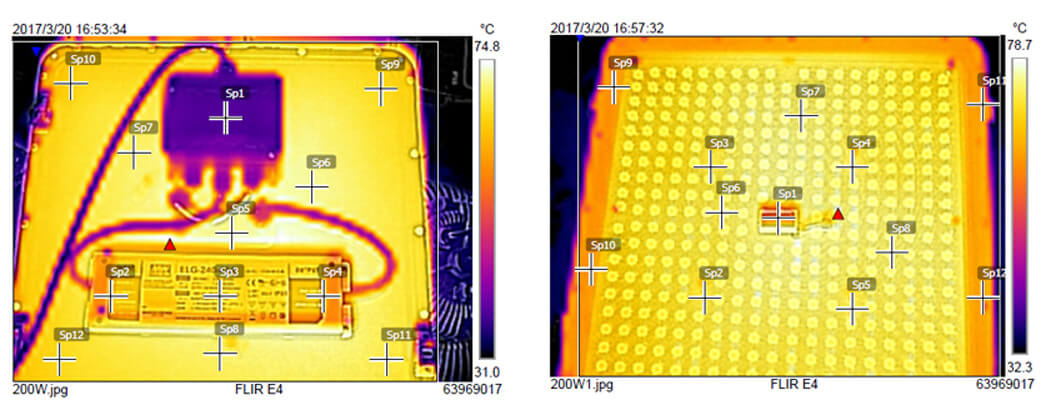

THERMAL PRESENTATION



The combination of high thermal conductivity materials.The whole lamp is tested by thermal radiation: GSL- 200W The lowest operating temperature of the radiator is 31 degrees, the highest temperature is 75 degrees, the lowest operating temperature of the LED light source is 32 degrees, the highest temperature is 79 degrees, the whole product greatly improved the life and stability.

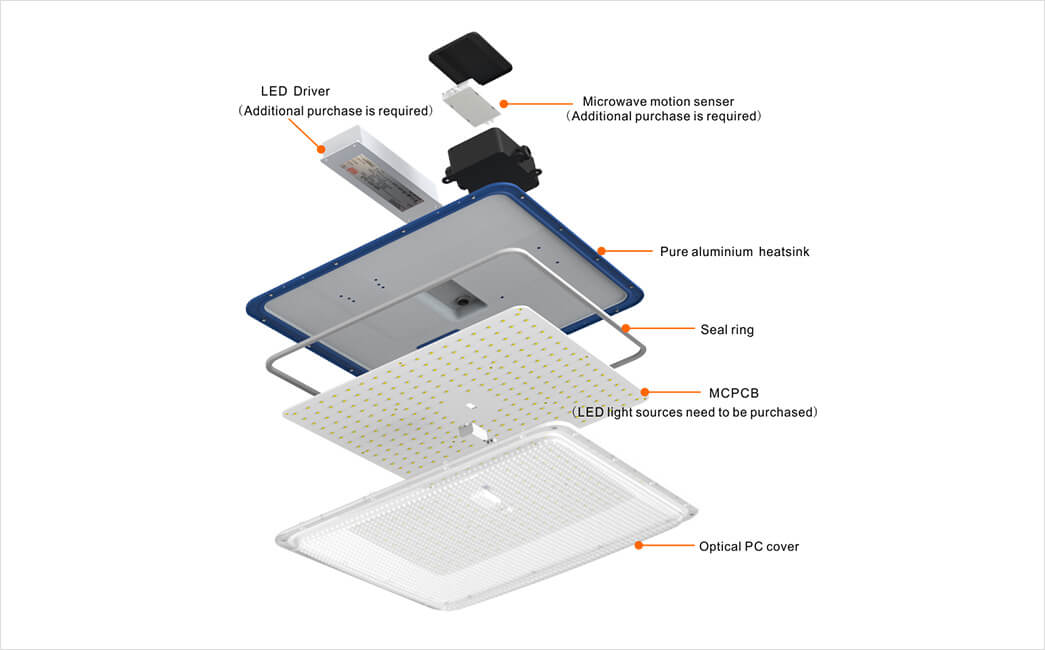

PRODUCT EXPLOSIVE VIEW

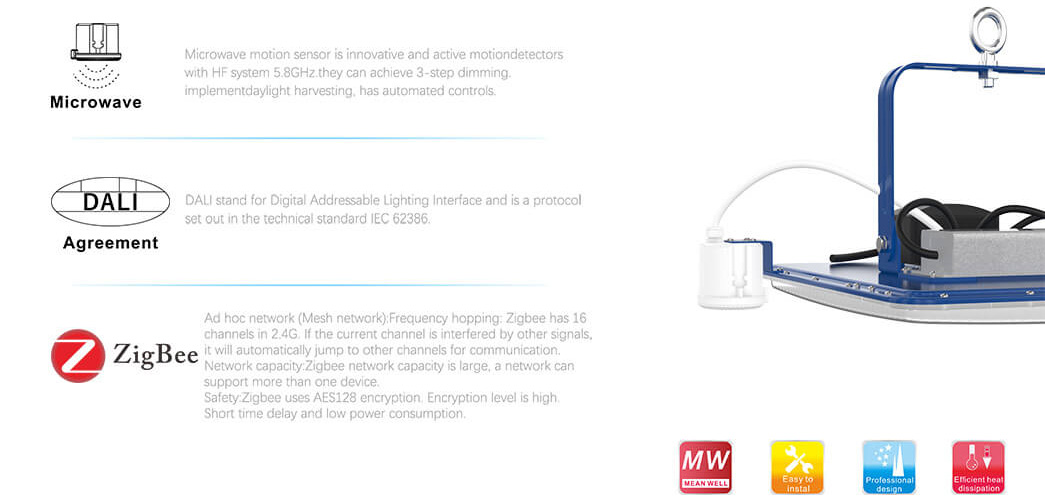

PRODUCT FUNCTION APPLICATION

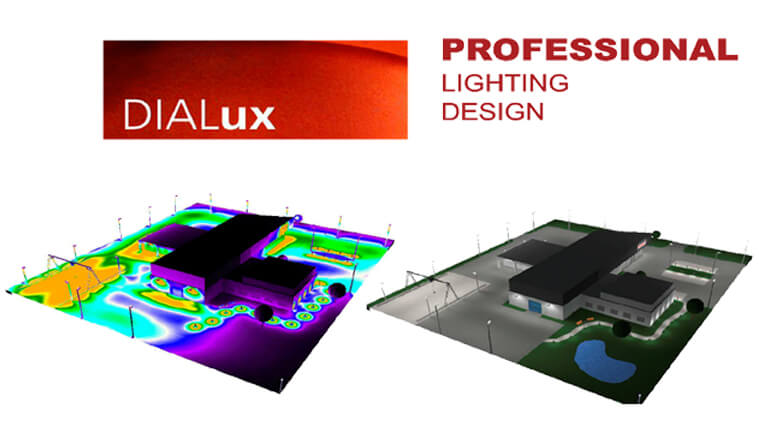

FREE LIGHTING DESIGN



SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.

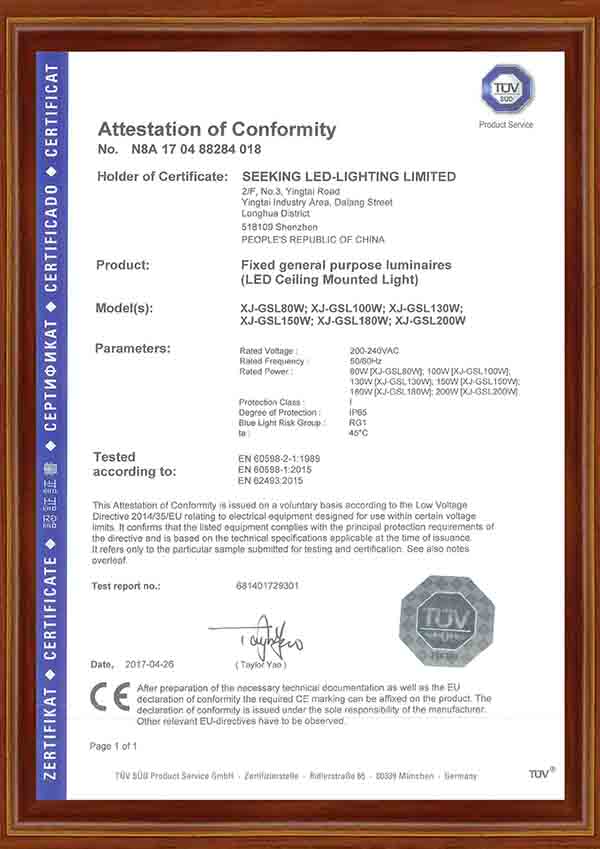

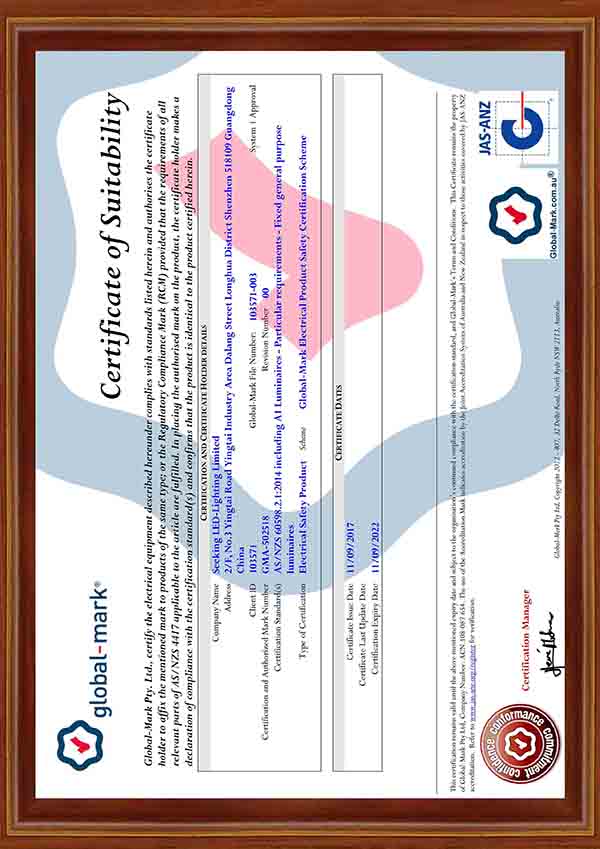

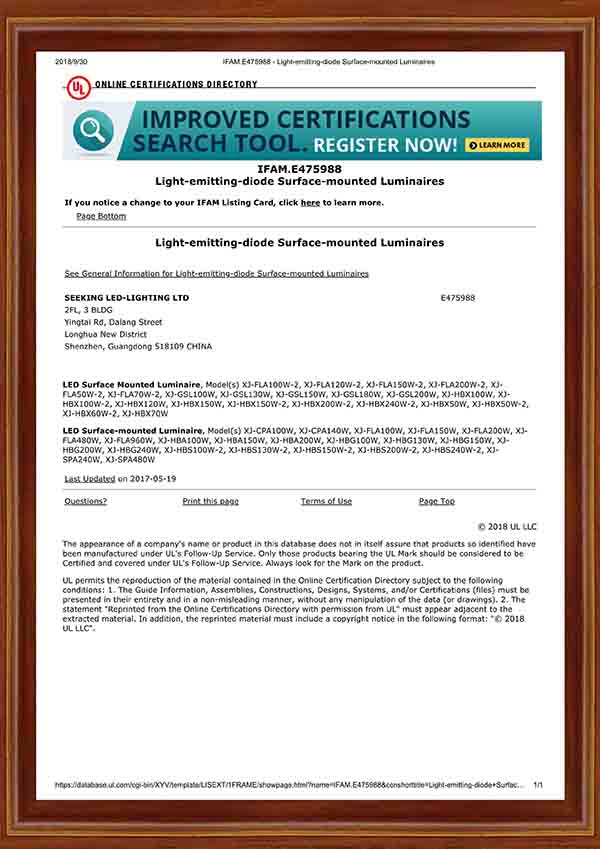

CERTIFICATE
