Product Details

/ PRODUCT SPECIFICATION

Part number	DR-5630FX60-12V	Work temperature	-30~70℃
Color or Color Temperature	W / WW	Waterproof Rating	IP20 / IP65 / IP67 / IP68 / IP68+ / IP.NANO
Power consumption	14W/M	Length of per reel	16.4’ (5M) or 32.8’(10M)
Input Voltage	DC12V/24V	Working lifetime	50000 hour
LED Light Source	SMD5630	Standard connector	20AWG red/black cable on the end
LED beam angle	120°	Length connection	150-200mm length
LED QTY per meter	60	LED Strip dimension	10mm (Width)*1.3mm(Height)
LED Strip PCB Thickness	2oz	Length cuttable	12V-50mm 24V-100mm
LED Strip PCB Color	White color	Certification	CE, ROHS, cUL, UL listed
Tape	3M 300LSE tape on the back	Warranty	3 years

/ product description

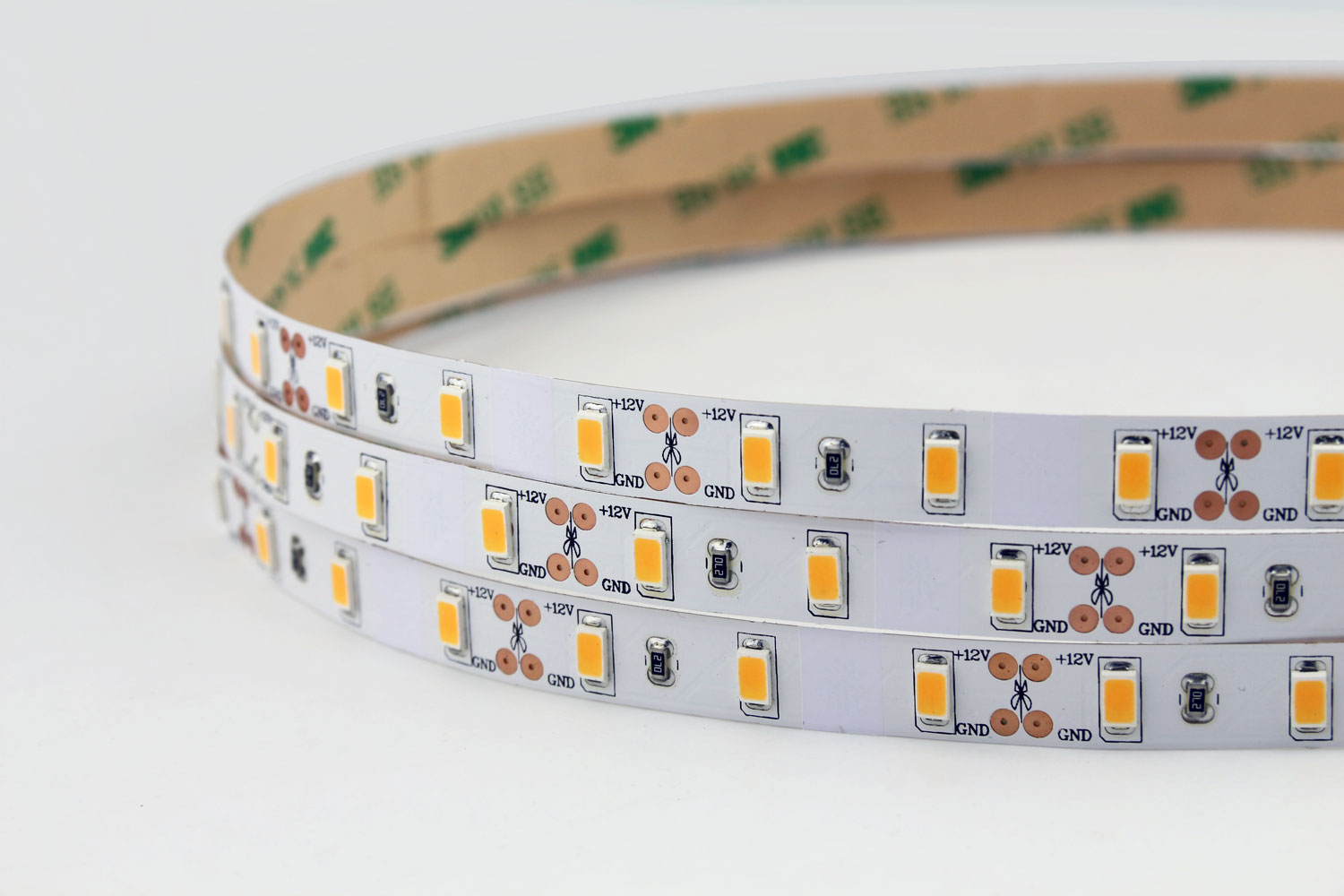

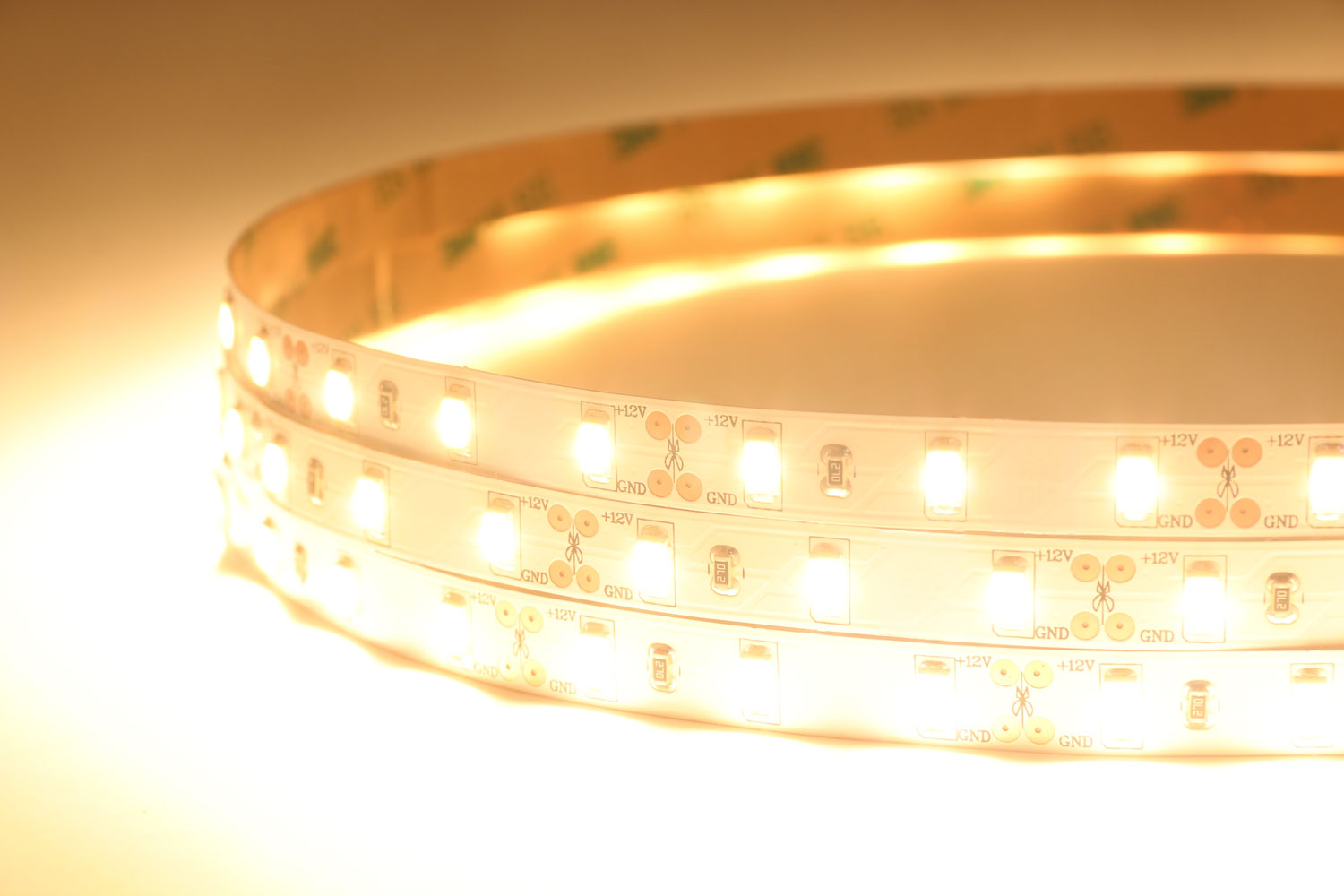

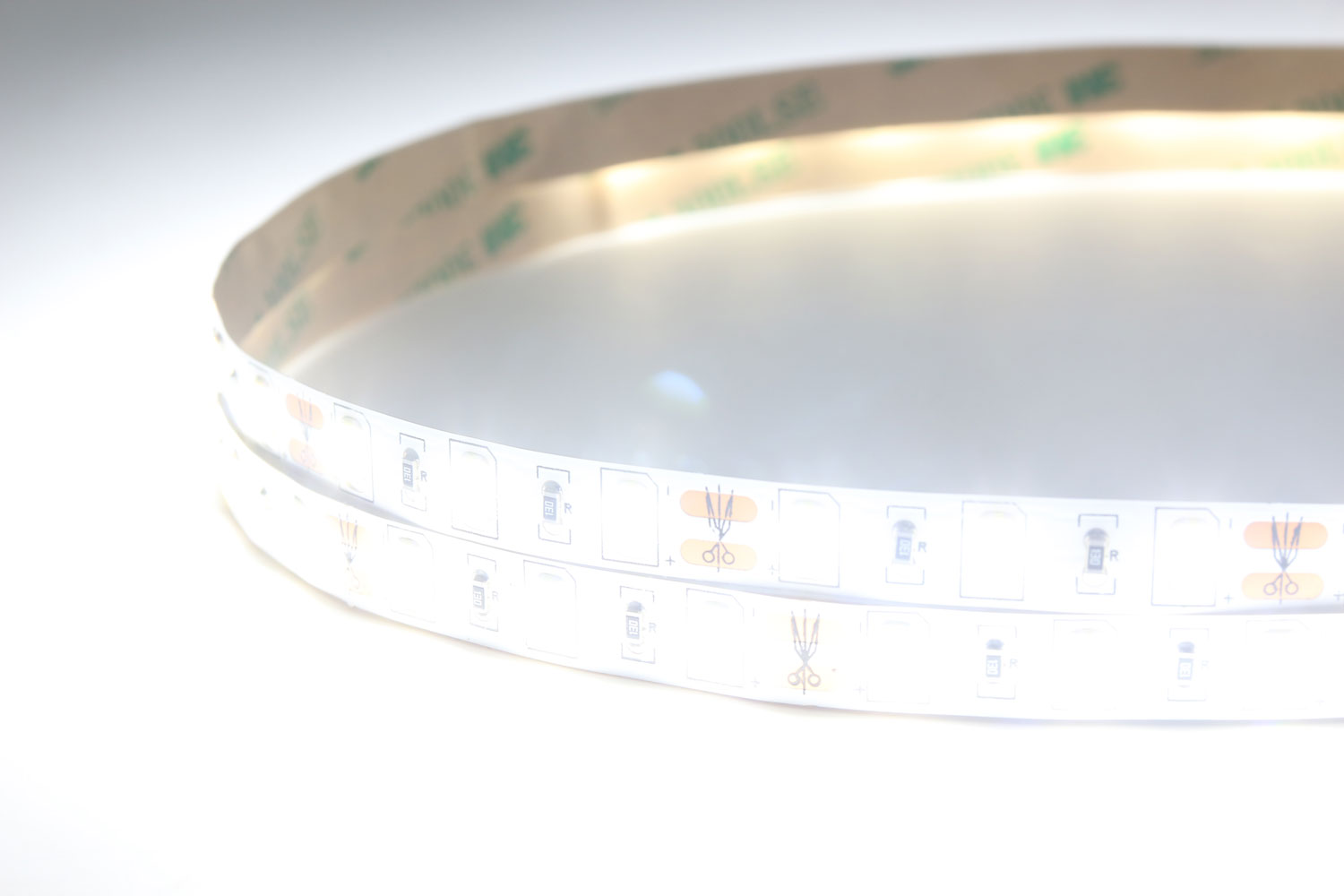

Flexible 16.4’ 70W 300 Diodes Single Color 5630 LED Strip Lights

This versatile LED Strip light is in 14W/M (4.7 Watts foot). It uses a 5630 LED Chip placed every 0.66”(16.6mm). This LED Strip has low Density Lighting with 60 didoes per meter. It is cuttable every 3 LED chips or 2”(50mm) for 12VDC and every 6 LED chips or 4”(100mm) for 24VDC. The pcb width of this led strip light is 10mm. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.

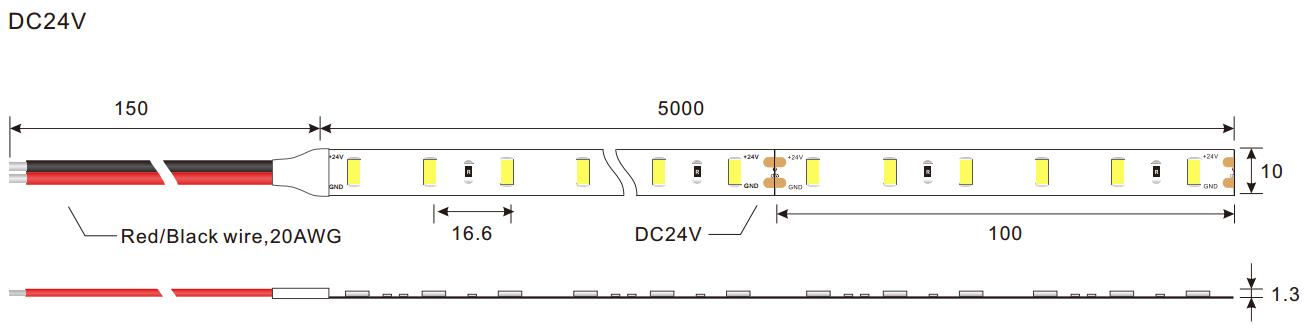

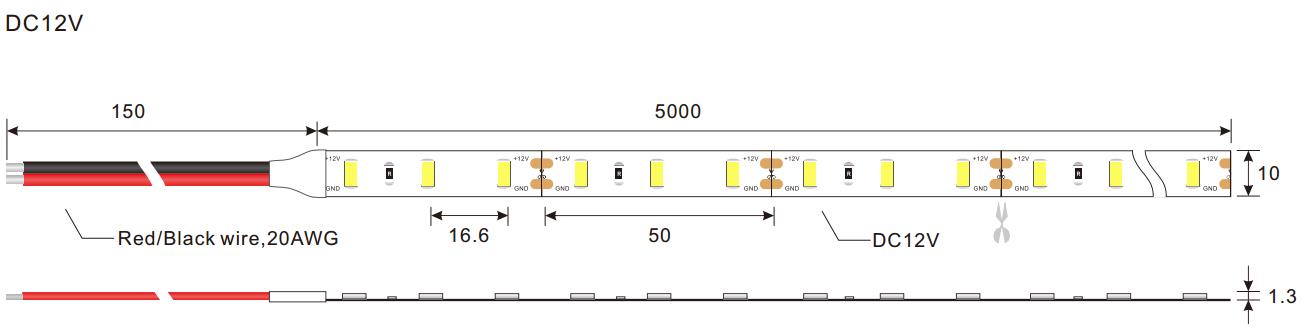

/ Dimension(mm)

STYLE

5630 Single Color LED Strip Lights

/ Application

Counter lighting/light box backlight/home improvement light trough /signboard advertising lighting/Building outline lighting/stairs lighting/display lighting/cabinet lighting.
