Product Details

/ PRODUCT SPECIFICATION

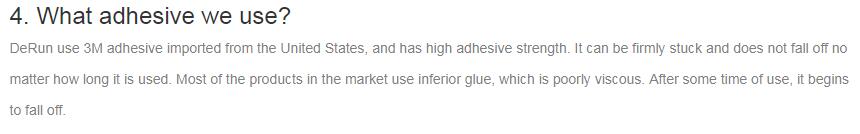

Part number	DR-2216FX240-XXV	Adhension	3M 300LSE tape on the back
Color or Color temperature	2900~7000K	Work temperature	-30~70℃
Power consumption	16W/M	Waterproof rating	IP20

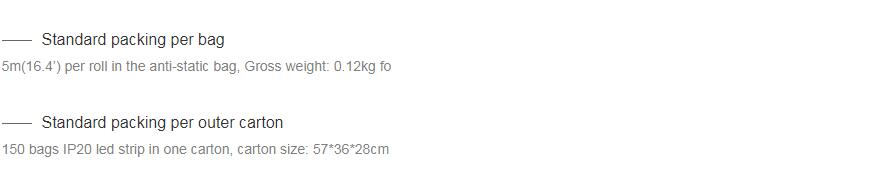

Input voltage	DC12V/24V	Length of per reel	16.4' (5M) or 32.8'(10M)
LED light source	SMD2216	Working lifetime	50000 hour

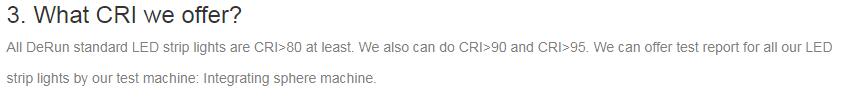

CRI (Color rendering index)	Ra>83	Standard connector	AWG20 red/black cable on the end
LED beam angle	120°	Connector length	150-200mm length
LED QTY per meter	240	LED strip dimension	10mm (Width)*1.05mm(Height)
Luminous flux per meter	1400-1650LM	Length cuttable	12V-12.5mm 24V-166mm

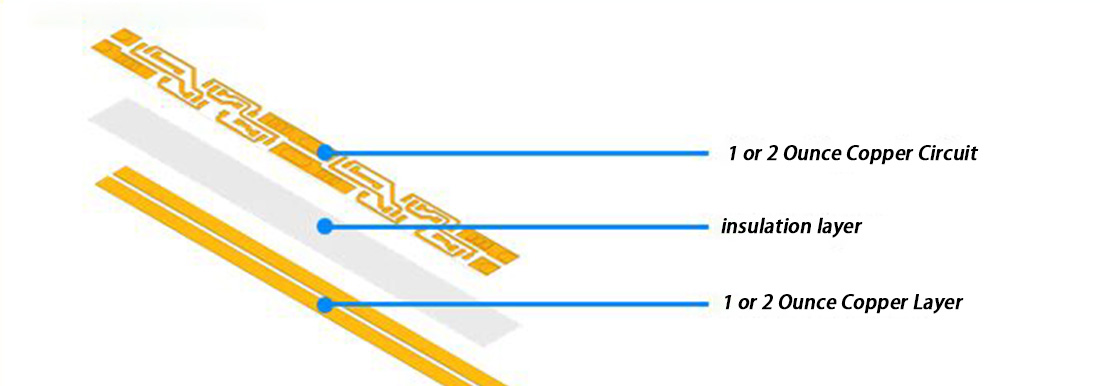

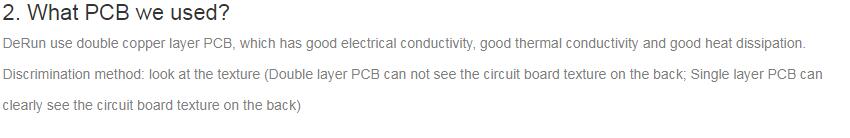

LED strip PCB thickness	2oz	Certification	CE, ROHS, cUL, UL listed
LED strip PCB color	White color	Warranty	3 years

/ product description

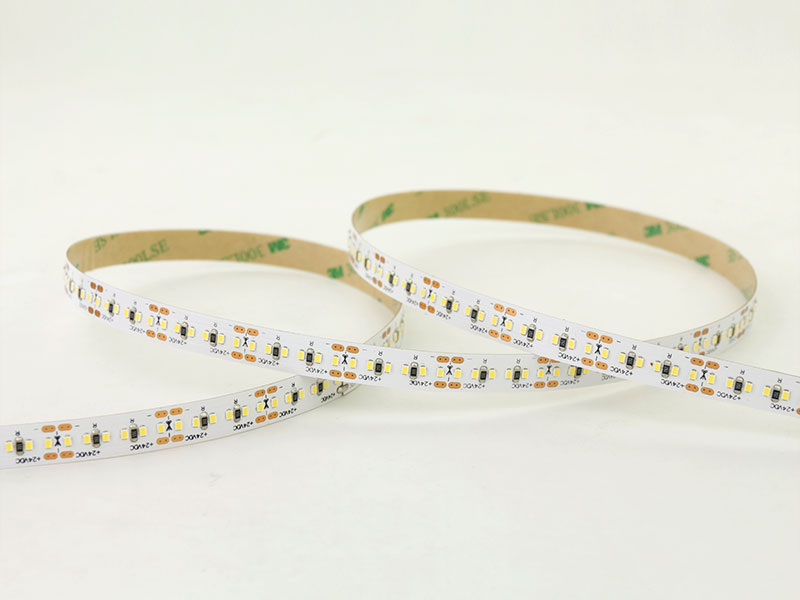

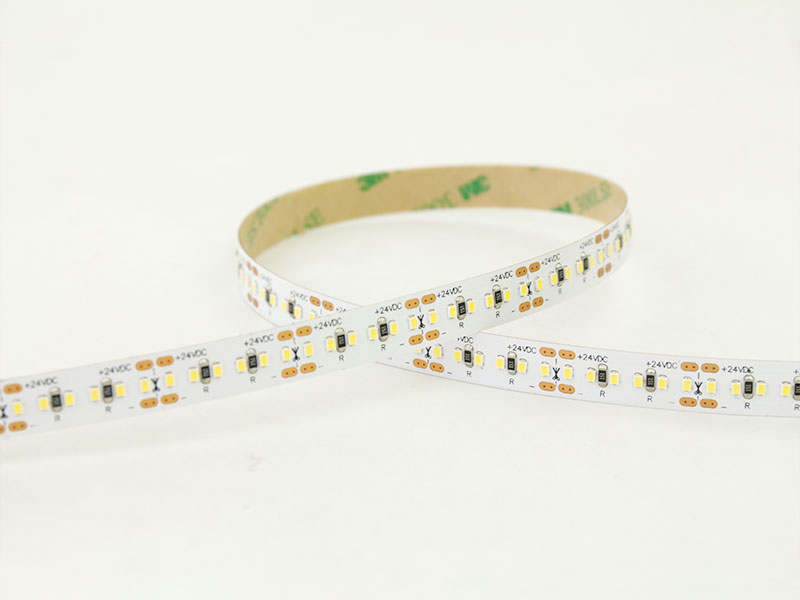

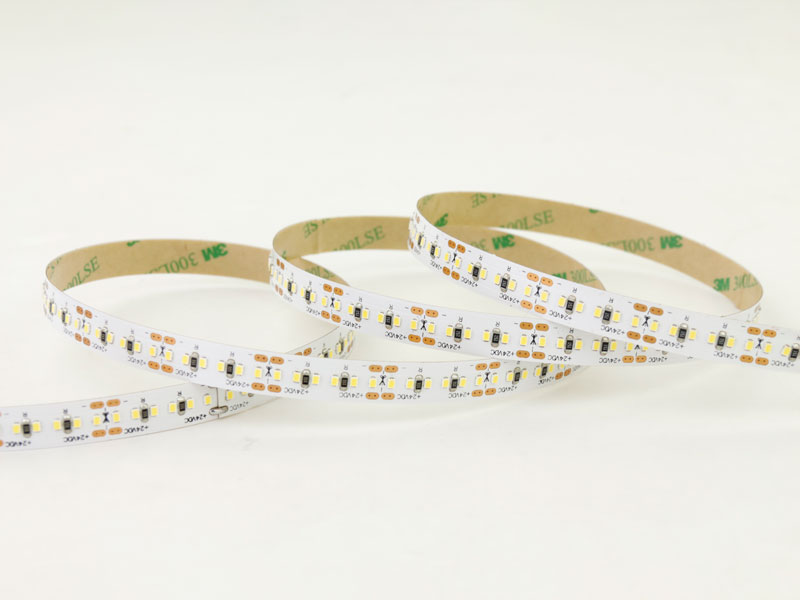

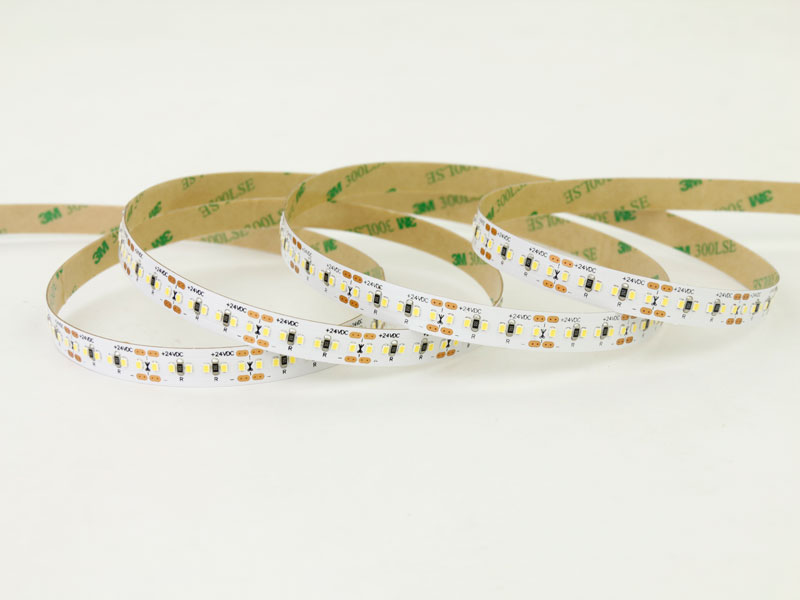

Flexible 16.4’ 80W 1200 Diodes 2216 LED Strip Light

This versatile LED Strip Light is in 16W/M (5.3 Watts foot). It uses a 2216 LED Chip placed every 0.16”(4.1mm). This LED Strip has very High Density Lighting with 240 diodes per meter or (78/ft). It is cuttable every 3 LED chips or 0.5”(12.5mm) for 12VDC and every 6 LED chips or 1”(25mm) for 24VDC. The pcb width of this led strip light is 10mm. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.

STYLE

2216 Classical Single Color LED Strip

/ Application

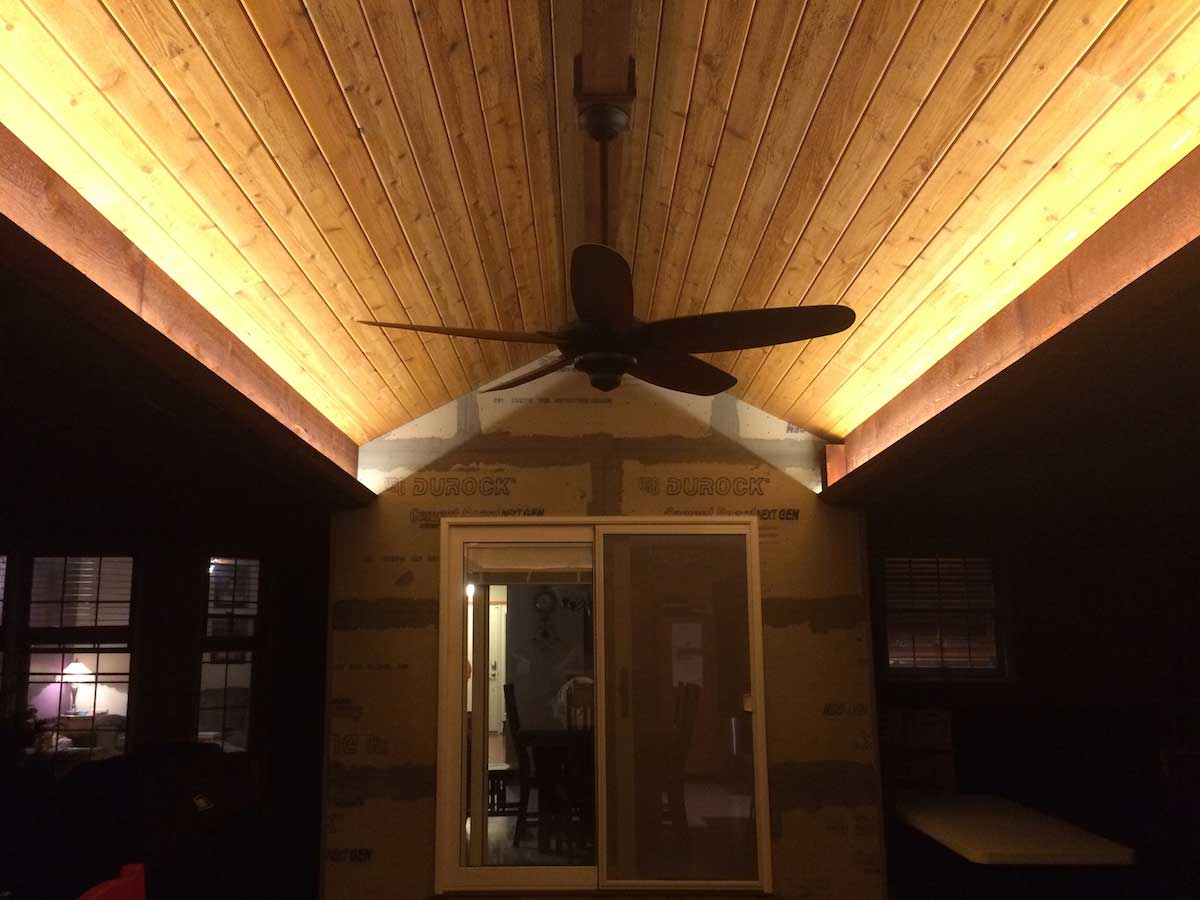

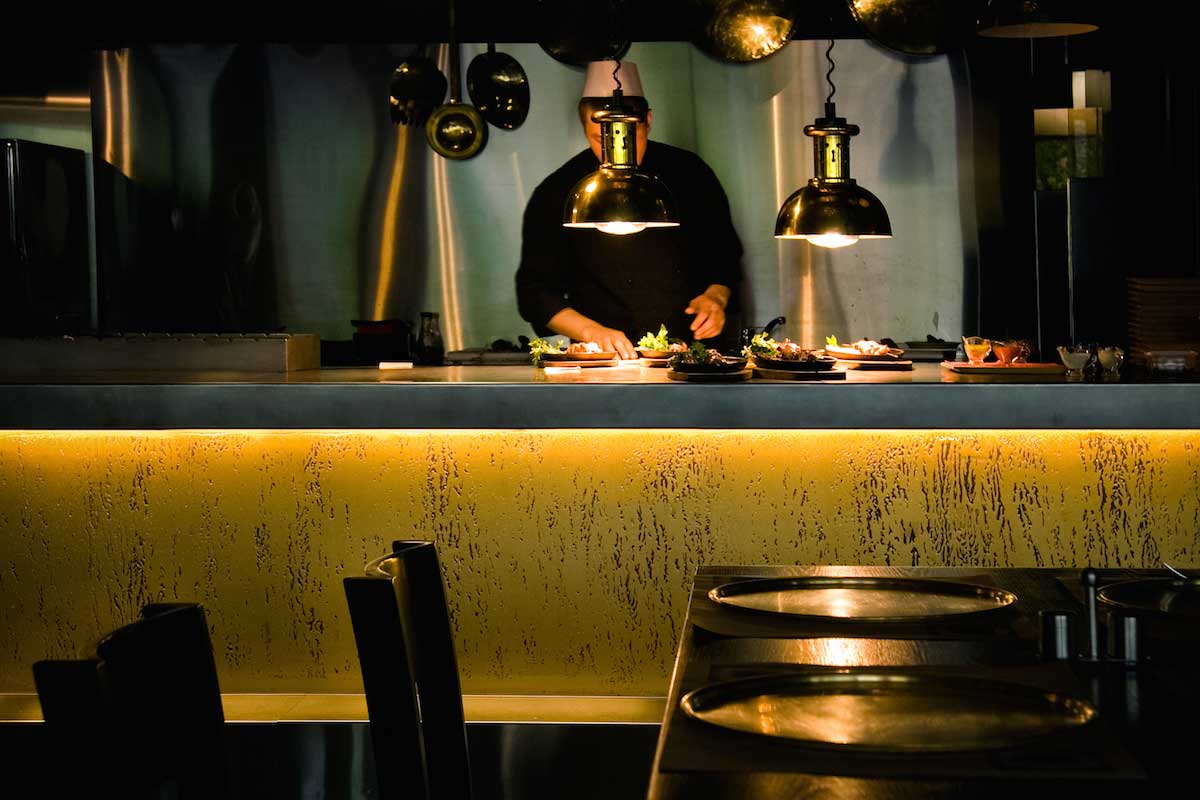

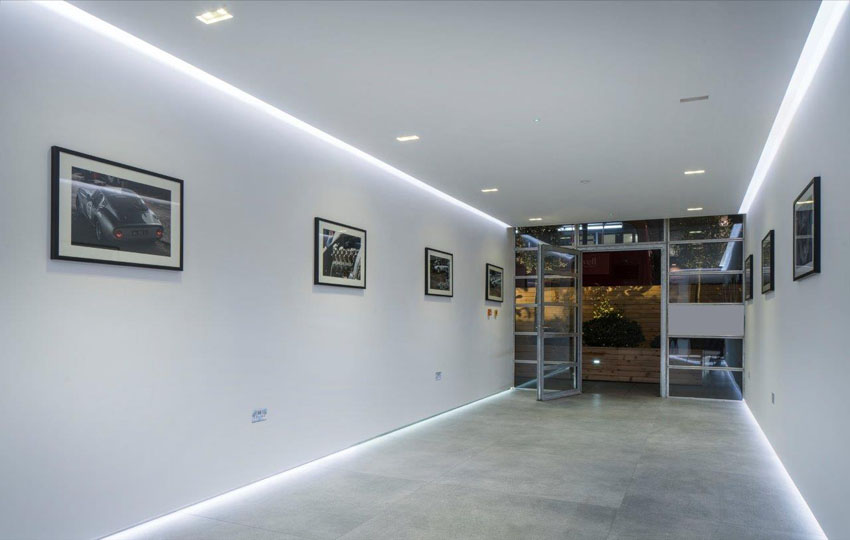

Counter lighting/light box backlight/home improvement light trough /signboard advertising lighting/Building outline lighting/stairs lighting/display lighting/cabinet lighting.
