Product Details
Product Video
Product Overviews

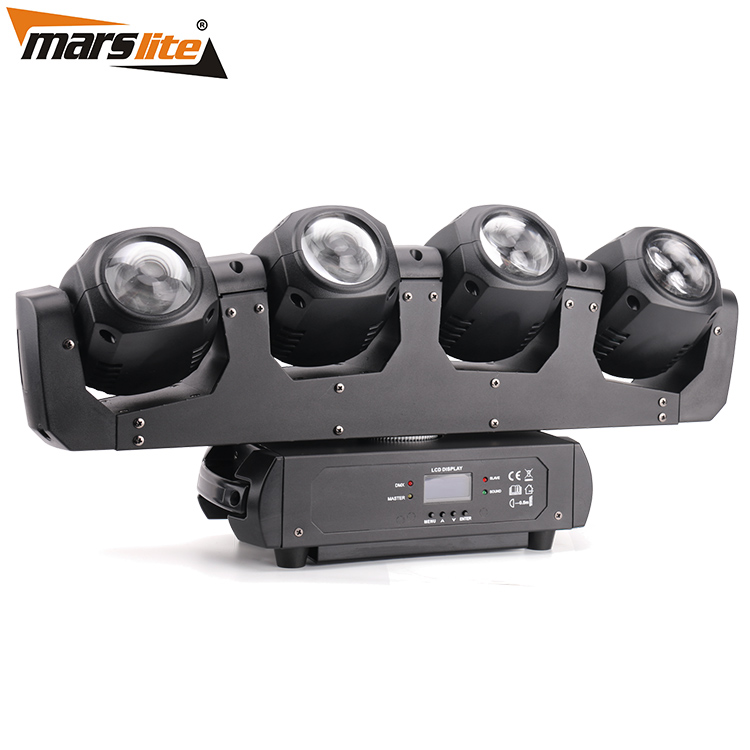

MS-MF4-32FC 4pcs 32W RGBW 4in1 LEDs
◪Pan is 540 angle and the Tilt is 180 angle which speed is adjustable.
◪The 4*32w RGBW LED has more powerful consumption,showing great beam effect.
◪LCD digital display so that the words are more clear and it is easy controlled.
◪It has powercon in and powercon out so the power is more stable.
◪Built in Sound active mode,DMX512 mode,DMX static color mode,DMX strobe function.
Technical Data
LIGHT SOURCE: | LEDs: 4×32W 4in1 RGBW LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
POWER SUPPLY: | Power consumption: Max. 240W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hz(auto-ranging) | |
Power In/Out: 3pin socket | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 14/16 DMX Channels | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
OPTICS: | Beam angle:6 degree |
Flicker free(refresh rate>400 Hz) | |
COLORS : | RGBW 4in1 |
Rainbow effect | |
EFFECTS: | 8 bit/16 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro and fade in & out macro | |
PAN-TILT: | Pan:360° Tilt: 220° |
BODY: | Housing: Metals and Plastic, black and white optional |
COOLING: | Cooling: forced air convection, with 4 silent fans |
ENVIRONMENT AND PHYSICAL: | IP rating: IP33 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light size:60.6*14.8*27.8cm | |
N.W.: 9.4kg | |
G.W.:10.5kg | |
Package size: 68*22*32cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Customer Reviews total 0 items
