Product Details
1.Product Description
LED street light refers to the street light made with LED light source, which has the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed, high color rendering index, and is of great significance to urban lighting energy saving
2.Specification

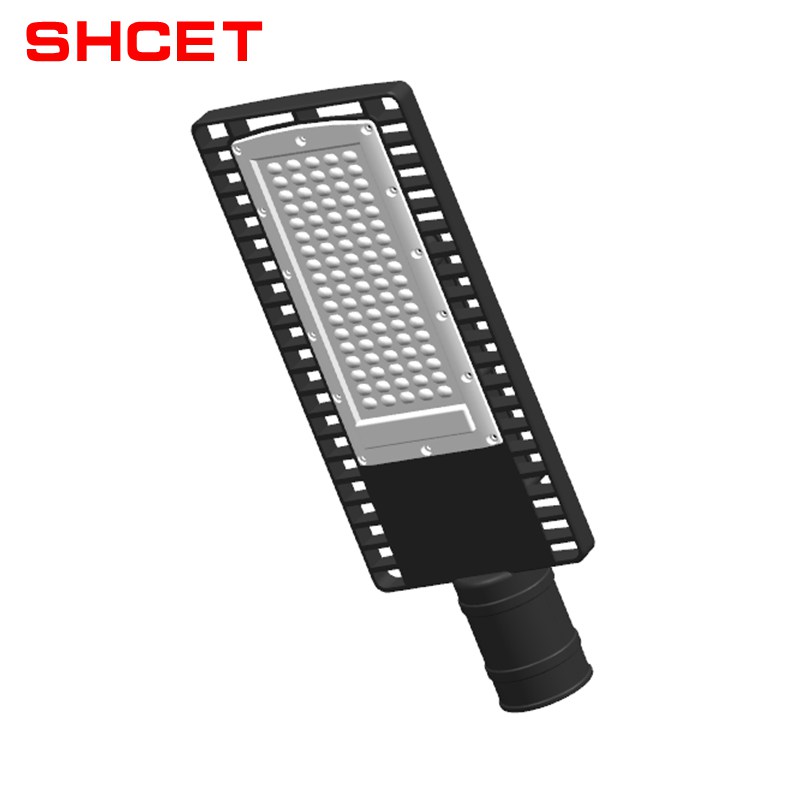

SMD LED Street Light
| Model | CET-124-30W SMD | CET-124-50W SMD | CET-124-60W SMD | CET-124-100W SMD | CET-124-120W SMD | CET-124-150W SMD | CET-124-200W SMD |
| Lamp Power | 30W | 50W | 60W | 100W | 120W | 150W | 200W |
| LED Qty | 30pcs | 55pcs | 60pcs | 110pcs | 120pcs | 165pcs | 200pcs |
| Product size(mm) | 445x155x66mm | 550x200x75mm | 700x245x100mm | 770x280x100mm | |||
| Pole Diameter | Φ50mm | Φ50mm | Φ60mm | Φ60mm | |||
| Material | Die-Alu+pc Lens | ||||||
| Power Factor | >0.9 | ||||||
| Lamp Flux | 80-90LM/1W; 100-120LM/1W; 120-140LM/1W | ||||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | ||||||
| IP Grade | IP65 | ||||||
| CRI | Ra>70 | ||||||
| Life Time | 50000H | ||||||
| SPD | 2.5KV-4KV-6KV-10KV | ||||||
| Input Voltage | AC85-305V | ||||||
| Body Color | Black or Grey or White; The product can choose to install sensor | ||||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | ||||||
SMD LED Street Light
| Model | CET-126-20W | CET-126-30W | CET-126-50W | CET-126-60W | CET-126-90W | CET-126-100W | CET-126-120W | CET-126-150W | CET-126-180W |
| Lamp Power | 20W | 30W | 50W | 60W | 90W | 100W | 120W | 150W | 180W |
| LED Qty | 20pcs | 30pcs | 60pcs | 60pcs | 100pcs | 100pcs | 120pcs | 180pcs | 180pcs |
| Product size(mm) | 315x128x76mm | 351x142x76mm | 405x166x79mm | 484x211x83mm | 580x242x83mm | ||||
| Pole Diameter | Φ40mm | Φ40mm | Φ50mm | Φ60mm | Φ60mm | ||||
| Material | Die-Alu+pc Lens | ||||||||
| Power Factor | >0.9 | ||||||||
| Lamp Flux | 80-90LM/1W; 100-120LM/1W; 120-140LM/1W | ||||||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | ||||||||
| IP Grade | IP65 | ||||||||
| CRI | Ra>70 | ||||||||
| Life Time | 50000H | ||||||||
| SPD | 2.5KV-4KV-6KV-10KV | ||||||||
| Input Voltage | AC85-305V | ||||||||
| Body Color | Black or Grey or White; The product can choose to install sensor | ||||||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | ||||||||
SMD LED Street Light
| Model | CET-135-20W SMD | CET-135-30W SMD | CET-135-50W SMD | CET-135-100W SMD | CET-135-150W SMD |
| Lamp Power | 20W | 30W | 50W | 100W | 150W |
| Lamp Flux | 2400LM | 3600LM | 6000LM | 12000LM | 18000LM |
| Product size(mm) | 350x100x60mm | 385x145x60mm | 540x213x50mm | 600x255x50mm | 715x255x50mm |
| Material | Die-Alu+pc diffuser | ||||
| Power Factor | >0.9 | ||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | ||||
| IP Grade | IP65 | ||||
| CRI | Ra>70 | ||||
| Life Time | 50000H | ||||
| Surger Protector | 2.5KV-4KV-6KV-10KV | ||||
| Input Voltage | AC85-305V | ||||
| Body Color | Black or Grey | ||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | ||||

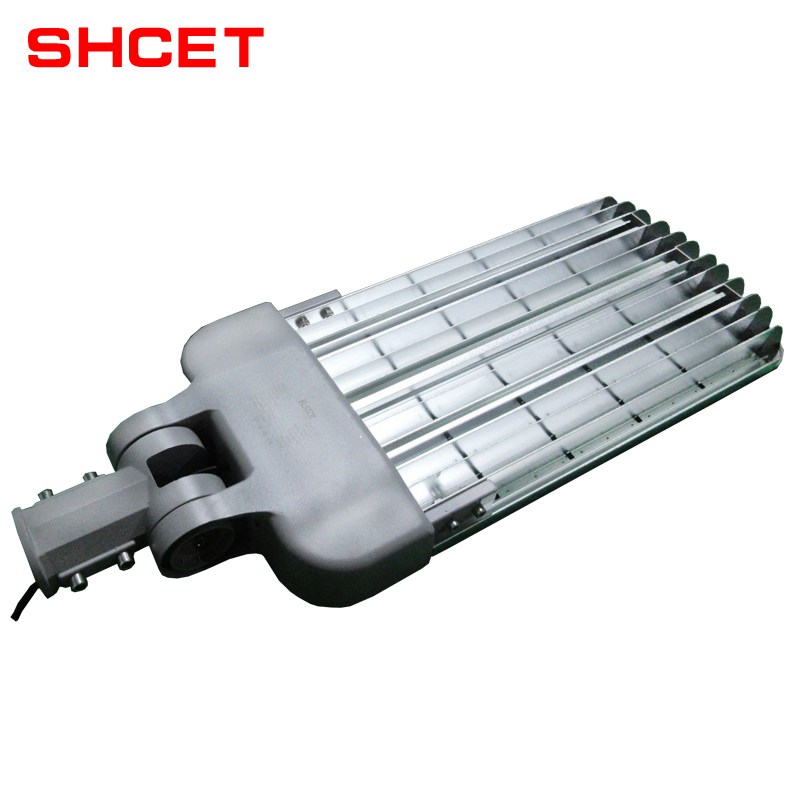

Modular LED Street Light
| Model | CET-123-60W SMD | CET-123-90W SMD | CET-123-120W SMD | CET-123-150W SMD | CET-123-180W SMD |
| Lamp Power | 2x30W | 3x30W | 4x30W | 5x30W | 6x30W |
| Lamp Flux | 7200LM | 10800LM | 14400LM | 18000LM | 21600LM |
| Product size(mm) | 540x360x110mm | 640x360x110mm | 740x360x110mm | 840x360x110mm | 940x360x110mm |
| Material | Die-Alu+Lens | ||||
| Power Factor | >0.9 | ||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | ||||
| IP Grade | IP65 | ||||
| CRI | Ra>70 | ||||
| Life Time | 50000H | ||||
| Surger Protector | 4KV-6KV-10KV | ||||
| Input Voltage | AC85-277V | ||||
| Body Color | Black or Grey | ||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | ||||
COB LED Street Light
| Model | CET-124-30W COB | CET-124-50W COB | CET-124-100W COB | CET-124-150W COB | CET-124-200W COB | CET-124-250W COB |
| Lamp Power | 30W | 50W | 2x50W | 3x50W | 4x50W | 5x50W |
| Product size(mm) | 350x150x60mm | 500x230x80mm | 720x280x80mm | 860x330x80mm | 950x350x80mm | 1100x360x80mm |
| Power Factor | >0.9 | |||||
| Material | Die-Alu+Lens | |||||
| Lamp Flux | 80-90LM/1W; 100-120LM/1W; | |||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | |||||
| IP Grade | IP65 | |||||
| CRI | Ra>70 | |||||
| Life Time | 50000H | |||||
| Surger Protector | 2.5KV-4KV-6KV-10KV | |||||
| Input Voltage | AC85-305V | |||||
| Body Color | Black or Grey The product can choose to install sensor | |||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES , EAC, ISO9001, SAA, Intertek TIR | |||||
COB LED Street Light
| Model | CET-125-50W COB | CET-125-100W COB | CET-125-150W COB |
| Lamp Power | 50W | 2x50W | 3x50W |
| Product size(mm) | 535x240x70mm | 720x250x90mm | 800x310x100mm |
| Power Factor | >0.9 | ||
| Material | Die-Alu+Lens | ||
| Lamp Flux | 80-90LM/1W; 100-120LM/1W; | ||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | ||
| IP Grade | IP65 | ||
| CRI | Ra>70 | ||
| Life Time | 50000H | ||
| Surger Protector | 2.5KV-4KV-6KV-10KV | ||
| Input Voltage | AC85-305V | ||
| Body Color | Black or Grey | ||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES , EAC, SAA, Intertek TIR | ||
Modular LED Street Light
| Model | CET-122A 30W | CET-122A 60W | CET-122A 90W | CET-122A 120W | CET-122A 150W | CET-122A 180W | CET-122A 210W |
| Lamp Power | 1x30W | 2x30W | 3x30W | 4x30W | 5x30W | 6x30W | 7x30W |
| Product size(mm) | 462x315x75mm | 548x315x75mm | 634x315x75mm | 720x315x75mm | 806x315x75mm | 892x315x75mm | 978x315x75mm |
| Material | Die-Alu+Lens | ||||||
| Power Factor | >0.9 | ||||||
| Lamp Flux | 80-90LM/1W; 100-120LM/1W; 120-140LM/1W | ||||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | ||||||
| IP Grade | IP65 | ||||||
| CRI | Ra>70 | ||||||
| Life Time | 50000H | ||||||
| Surger Protector | 2.5KV-4KV-6KV-10KV | ||||||
| Input Voltage | AC85-305V | ||||||
| Body Color | Black or Grey | ||||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES , EAC, ISO9001, SAA, Intertek TIR | ||||||
Modular LED Street Light
| Model | CET-122B 50W | CET-122B 100W | CET-122B 150W | CET-122B 200W | CET-122B 250W | CET-122B 300W |
| Lamp Power | 1x50W | 2x50W | 3x50W | 4x50W | 5x50W | 6x50W |
| Product size(mm) | 492x315x75mm | 608x315x75mm | 724x315x75mm | 840x315x75mm | 956x315x75mm | 1072x315x75mm |
| Material | Die-Alu+Lens | |||||
| Power Factor | >0.9 | |||||
| Lamp Flux | 80-90LM/1W; 100-120LM/1W; 120-140LM/1W | |||||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K | |||||
| IP Grade | IP65 | |||||
| CRI | Ra>70 | |||||
| Life Time | 50000H | |||||
| Surger Protector | 2.5KV-4KV-6KV-10KV | |||||
| Input Voltage | AC85-305V | |||||
| Body Color | Black or Grey | |||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES , EAC, ISO9001, SAA, Intertek TIR | |||||
3.Features
LED street lamp is different from conventional street lamp. LED light source uses low-voltage DC power supply, high-efficiency white light synthesized by GaN-based power blue LED and yellow. It has the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed and high color rendering index, and can be widely used in road. The outer cover can be made, high temperature resistance up to 135 degrees, and low temperature resistance up to -45 degrees.
4.Installation Guide
1.Cut off the main power supply.
2.Install the light pole, then tightly attach the pole to the lamp arm.
3.Connect the power cord, and extend the three cables from the base to the lamp arm. The yellow cable is the bottom line, the blue cable is the zero line, and the brown cable is the live line.
4.Tighten the screws, and attach the light to the pole.
5.Connect the main power supply.
5.More Products
6.Application
LED street lights are mainly used for road lighting, such as trunk road, sub-trunk road, branch road, factory, school, garden, city square, courtyard and so on.
7.Packaging&Shipping
8.Certificate
9.FAQ
Q1: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.
Q2: Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
Q3: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.
Q4: Do you have inspection procedures for products?
A: our products100% self-inspection and testing before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen
Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.
Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q7: How about payment terms?
A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
