❈ Product description

Product Features

❈ Product parameters

Part Number	2T05X5WWA8003003
Colour	Warm White, Nautral White, Cool White,
Voltage	3.0-3.1v 3.1-3.2v 3.2-3.3v
Rated current	150mA
Light beads	Edison 5630 5730
Power rating	0.5w
CRI (Ra>)	80, 90
LED Light Source	Edison SMD 5630 5730
Beam Angle(degree)	120
CCT/nm	2700-3000k, 4000k, 5000k, 5700k, 6000-6500k
Operating Temperature	--40~+85℃
Storage temperature	--40~+125℃
Soldering Temperature	Reflow Soldering: 255~260℃/10~30sec Manual Soldering: 350℃/3sec
Lumen (lm)	60-65lm 65-70lm
LED Junction Temperature	125℃
Certification:	CE, RoHS, LM80
Forward Current IF (mA)	200
Pulse Forward Current(tp<=100us, Duty cycle=0.25) Ipulse (mA)	400
Reverse Current IR (uA)	10
Reverse Voltage VR (V)	5
Working Lifetime(Hour):	50000+
Color BIN code	＜3 step
Chip Brand:	Sanan Chip

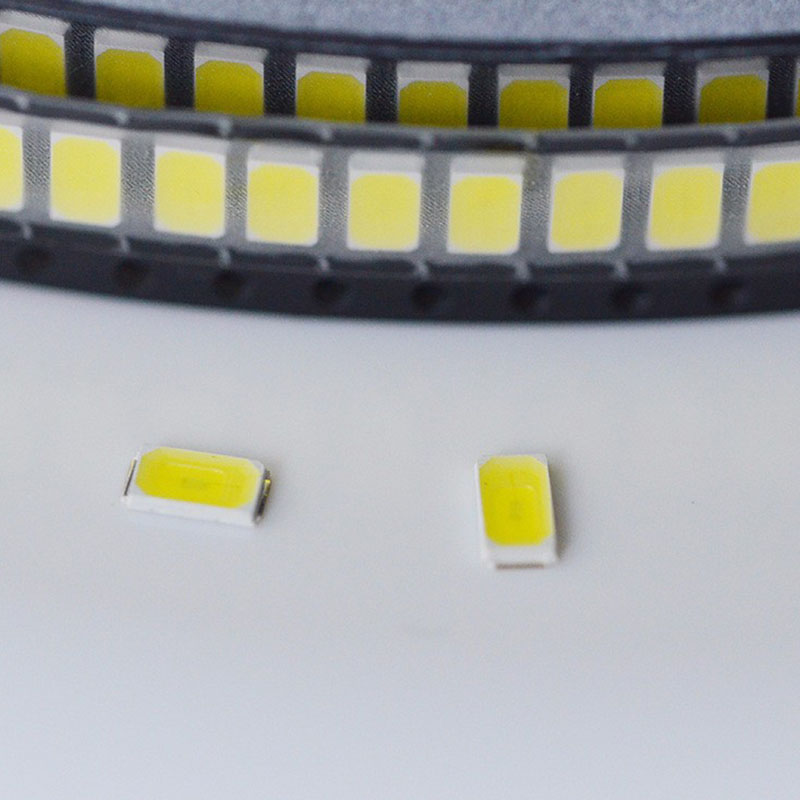

Packeting:	3000PCS/roll
Warranty:	3 Years

Compared with 0.1w and 0.2w LED chips, the 5630 saves the number of LED chips used in some downlights, spotlights, etc., making the process simple.

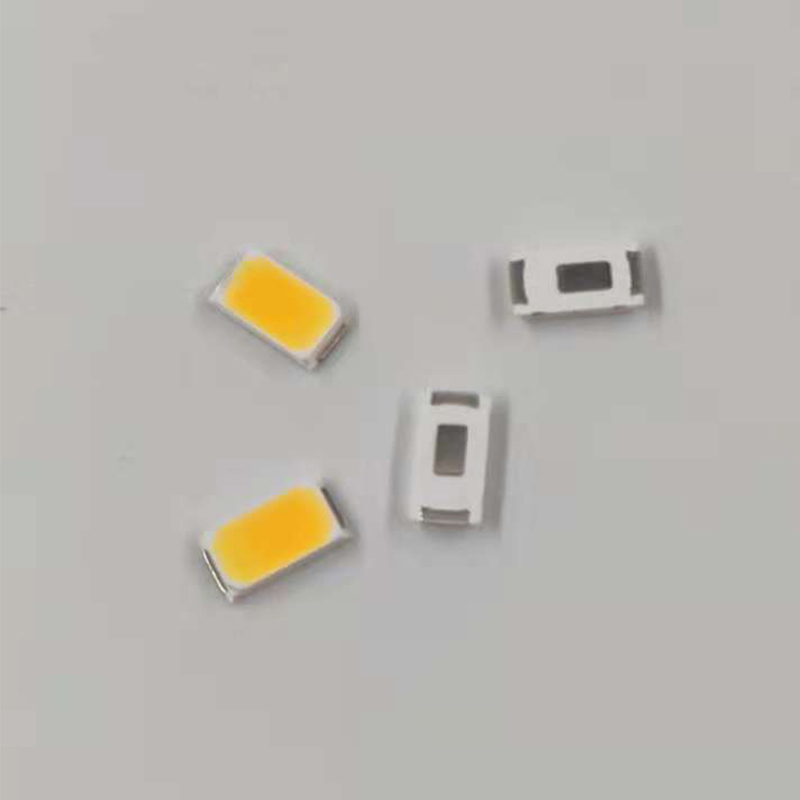

❈ product details

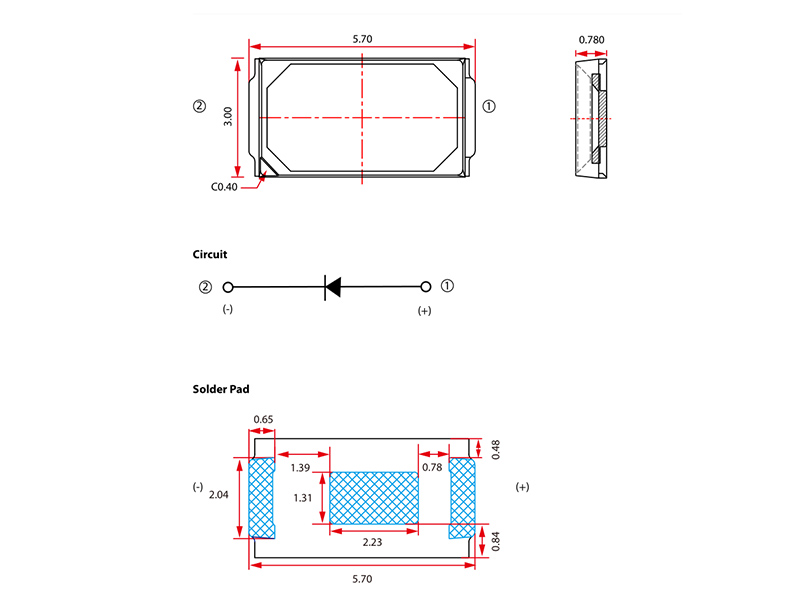

Solder Joints

The closer one end of the two solder joints is the positive pole and the other end is the negative pole.

❈ product Applications

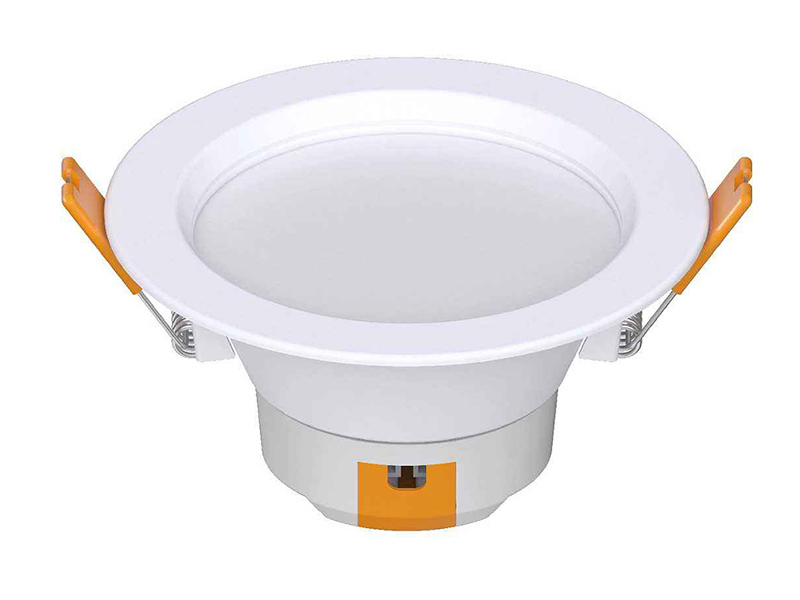

Application-1

Can be applied to downlights and spotlights. Compared to 0.1w and 0.2w LED chips, the 5630 saves the number of LED chips, making the process simpler.

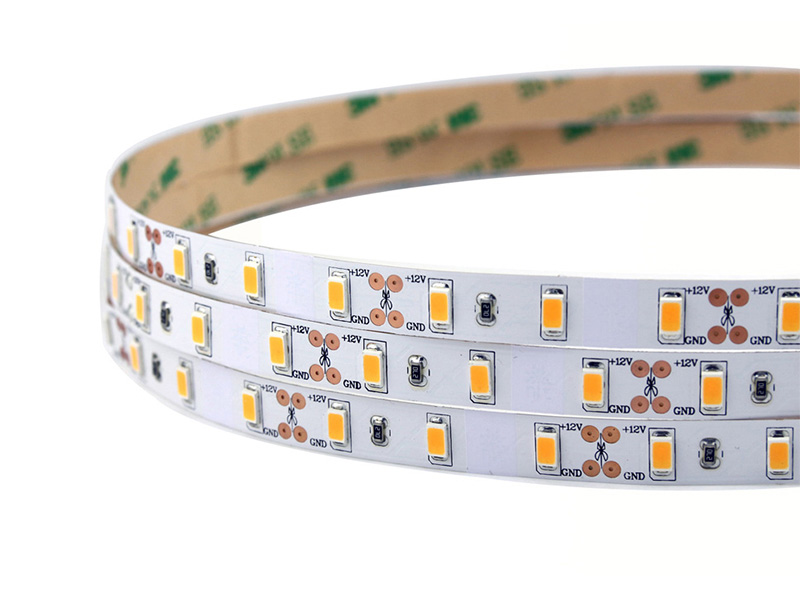

Application-2

It can also be applied to the LED strip for higher brightness and easy installation.
