Product Details

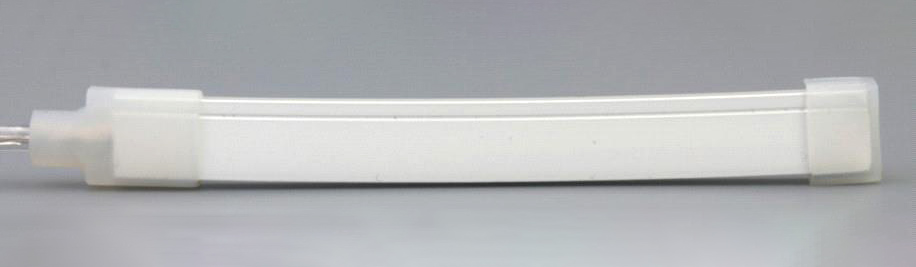

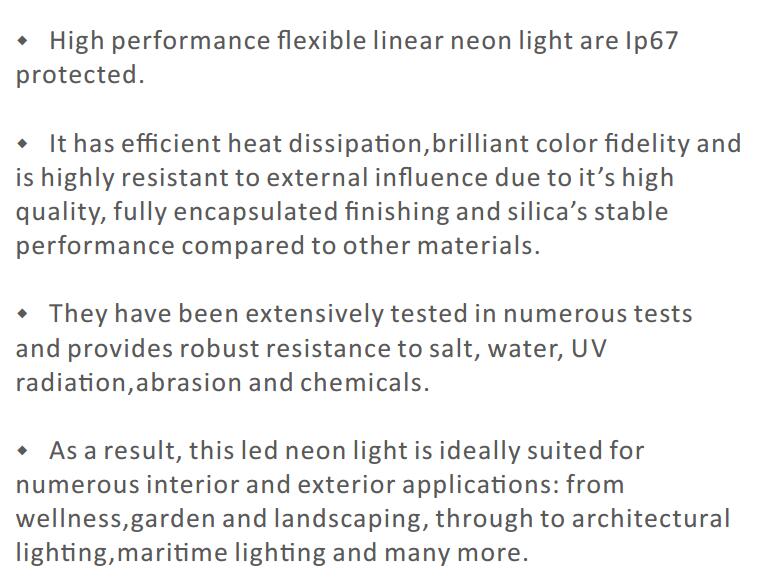

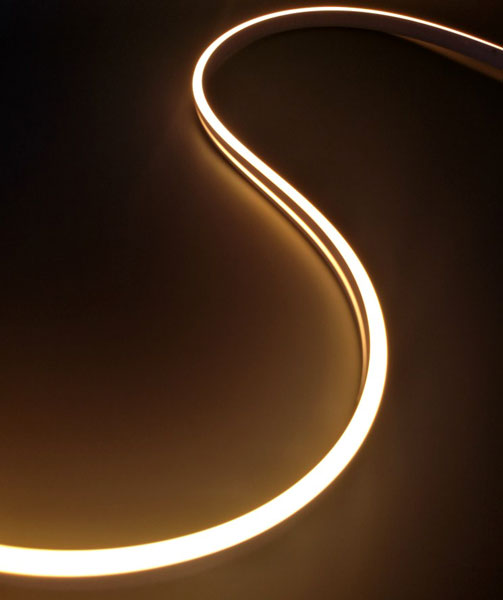

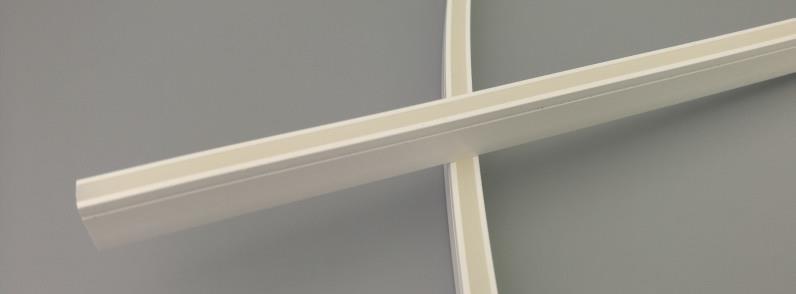

/ PRODUCT Description

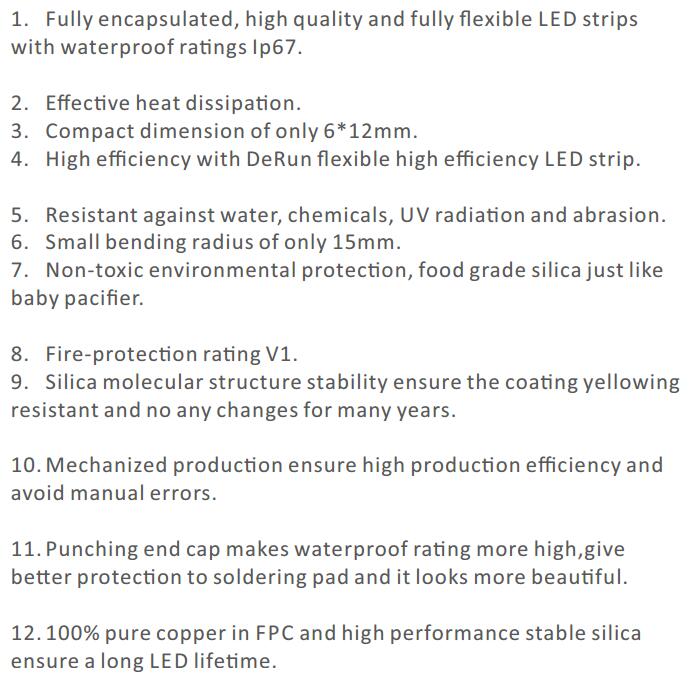

/ PRODUCT Features

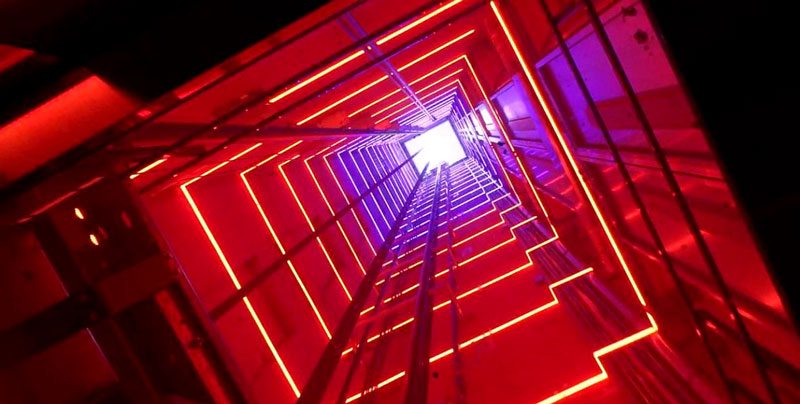

/ Application

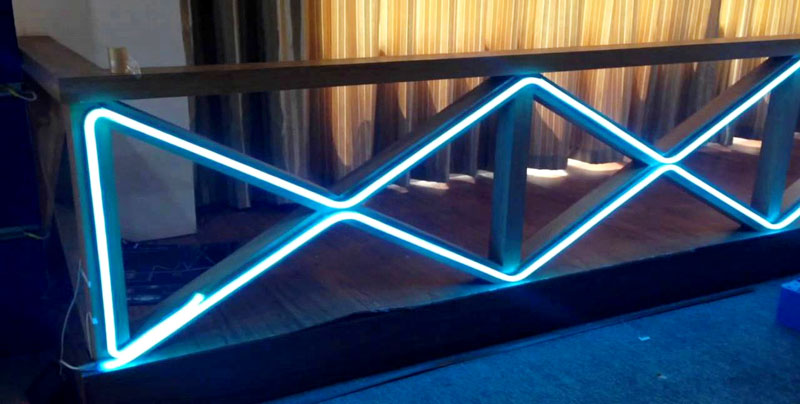

Business premises lighting/Linear led lighting/Exhibition led lighting/Display led lighting/Bar led lighting/Home led lighting/Office led lighting/Led retail lighting/Accent led lighting/Pool led lighting/Architectural lighting/Led strip fixtures/Decorative lamp for outdoor lighting/ad. signs

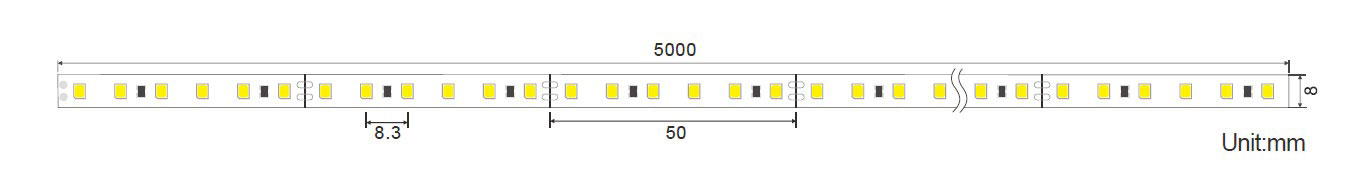

Dimension (mm)
PCB Size
Cuttable length: 5cm/unit,6leds/group
/ Parameter
| Item No. | CCT | Length (mm) | LED QTY | Power (W/M) | Input voltage (V) | Lm/m | Beam angle | IP | CRI | Work Temperature | Warranty | Dimension |
| LG08S0612-WW | 3000K | 1000 | 120 | 14 | DC24V | 300 | 120° | IP67 | 83 | -20~45℃ | 3 Years | 6*12mm |
| LG08S0612-NW | 4000K | 1000 | 120 | 14 | DC24V | 350 | 120° | IP67 | 83 | -20~45℃ | 3 Years | 6*12mm |
| LG08S0612-W | 6000K | 1000 | 120 | 14 | DC24V | 400 | 120° | IP67 | 83 | -20~45℃ | 3 Years | 6*12mm |
| LG08S0612-R | RED | 1000 | 120 | 14 | DC24V | / | 120° | IP67 | / | -20~45℃ | 3 Years | 6*12mm |
| LG08S0612-G | GREEN | 1000 | 120 | 14 | DC24V | / | 120° | IP67 | / | -20~45℃ | 3 Years | 6*12mm |
| LG08S0612-B | BLUE | 1000 | 120 | 14 | DC24V | / | 120° | IP67 | / | -20~45℃ | 3 Years | 6*12mm |

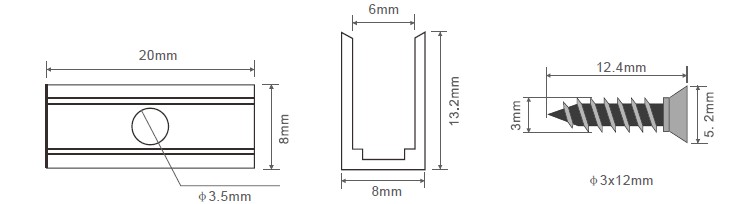

/ Accessories

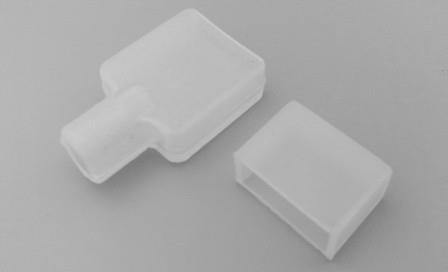

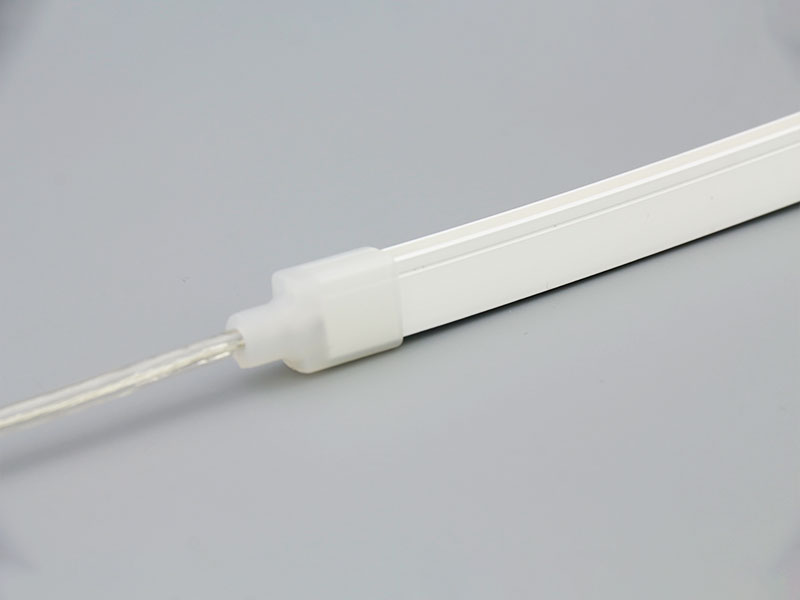

End caps

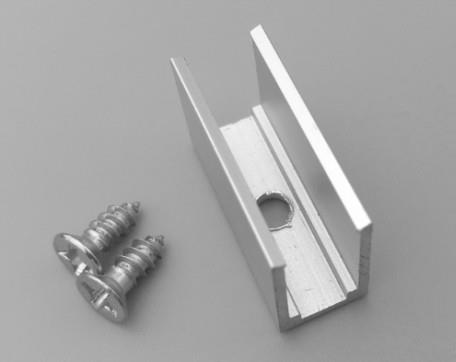

Install Clips

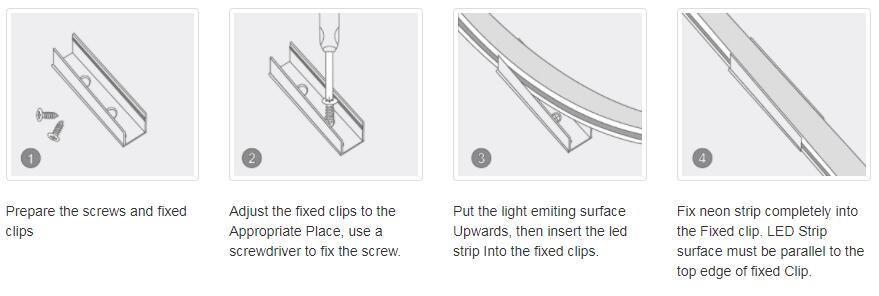

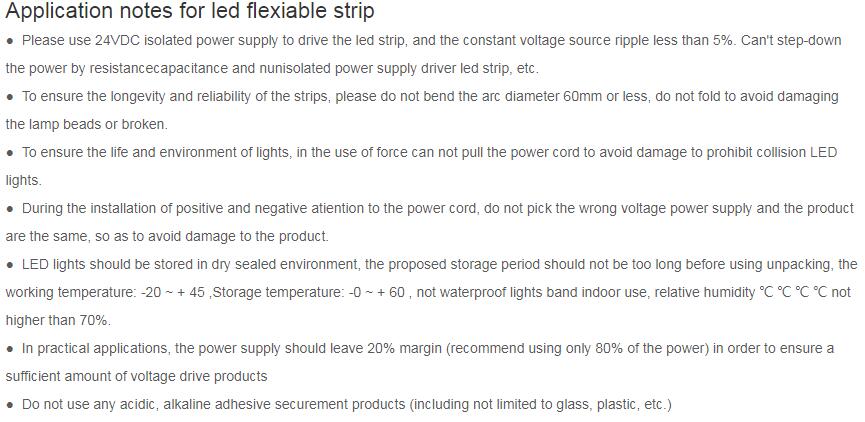

/ Installation instructions
Wiring diagram

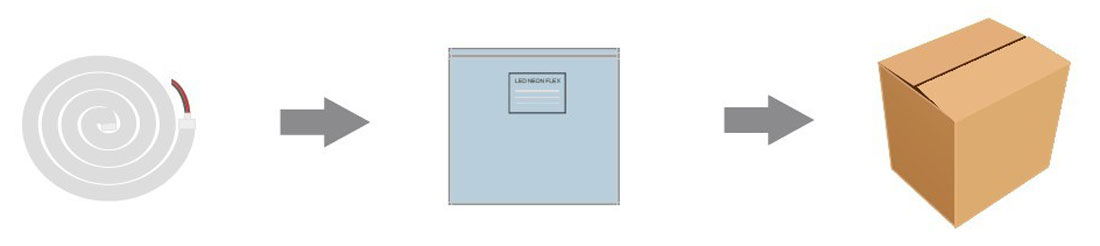

/ Packing
Different lengths are available!
Standard packing:
5m(16.4’) per roll. Gross weight: 0.55kg per roll.
10m(32.8’) per roll. Gross weight: 1.1kg per roll.
| Type | ItemNO. | Neno Flex size | Carton size | Esdbag | Weight/Carton | Quanity/Carton |
| Neon Strip | LG08S0612 | 26x26cm | 30x60x60cm | 28x28cm | 0.55kg | 12kg |

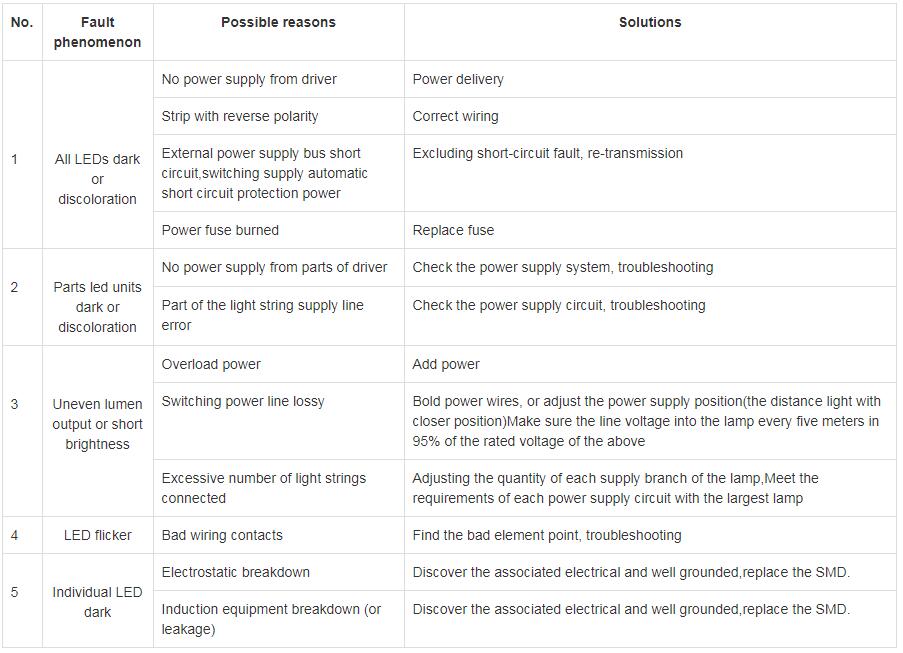

/ Fault inspection
/ Disclaimer
