Share
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Branch： |
Array |
Size： |
121X22X10 cm |
Product Details
- Warranty(Years):
- 5
- Input Voltage(V):
- 220-240V
- Lamp Luminous Efficiency(lm/w):
- 110
- CRI (Ra>):
- 85
- Working Temperature(℃):
- -25 - 45
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Stainless Steel
- IP Rating:
- IP44
- Certification:
- CE, Energy Star, EMC, ETL, LVD, RoHS, REACH, SAA, VDE
- Place of Origin:
- China
- Brand Name:
- Halcon
- Model Number:
- HG-L201
- Application:
- classroom, school, office
- Light Source:
- LED
- Name:
- industrial fluorescent lighting fitting
- Other name:
- high quality industrial fluorescent lighting fitting
- Housing:
- 0.5mm Iron sheet with high quality powder coated
- Diffuser:
- 2.2mm transparent, milky PC material
- Lampholder:
- VED or UL lampholder
- Ballast:
- Magnetic or electronic ballast
- Lamps:
- T8 or T5 luminaire
- End Caps:
- White ABS material
- Installation:
- Ceiling mounted&wall mounted for public
- MOQ:
- 200PCS
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 121X22X10 cm
- Single gross weight:
- 5.0 kg
- Package Type:
- led linear batten fitting light
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 100 101 - 500 >500 Est. Time(days) 5 15 14 To be negotiated
High quality new products industrial fluorescent lighting fitting
Specifications of industrial fluorescent lighting fitting:
Housing: 0.5mm steel sheet with white powder coated.
Diffuser: 2.2 transparent, milky PC material.
End Caps: White ABS material
Electrical Parts: Without ballast; With T5/T8 VDE lampholders or prewired;
Installation: Ceiling or wall mounted.

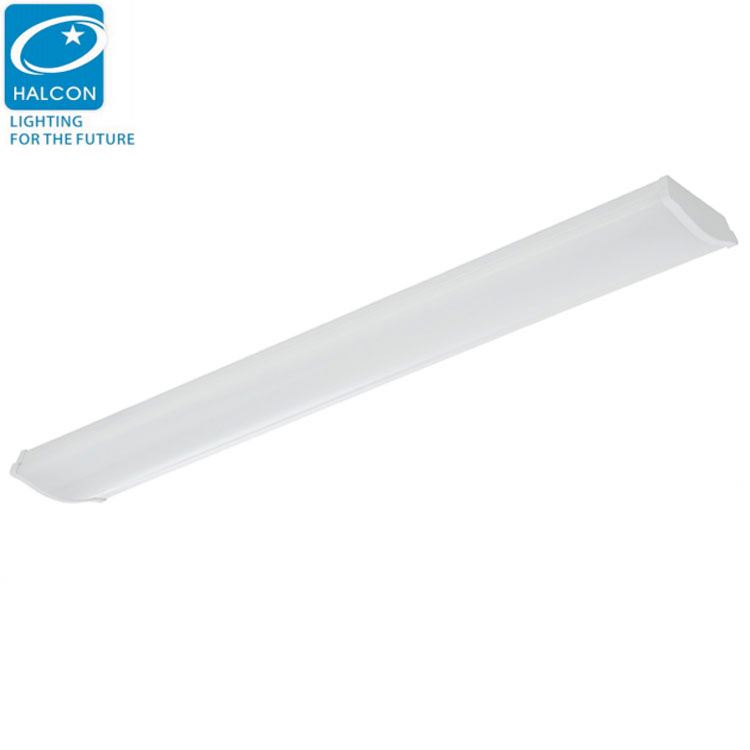

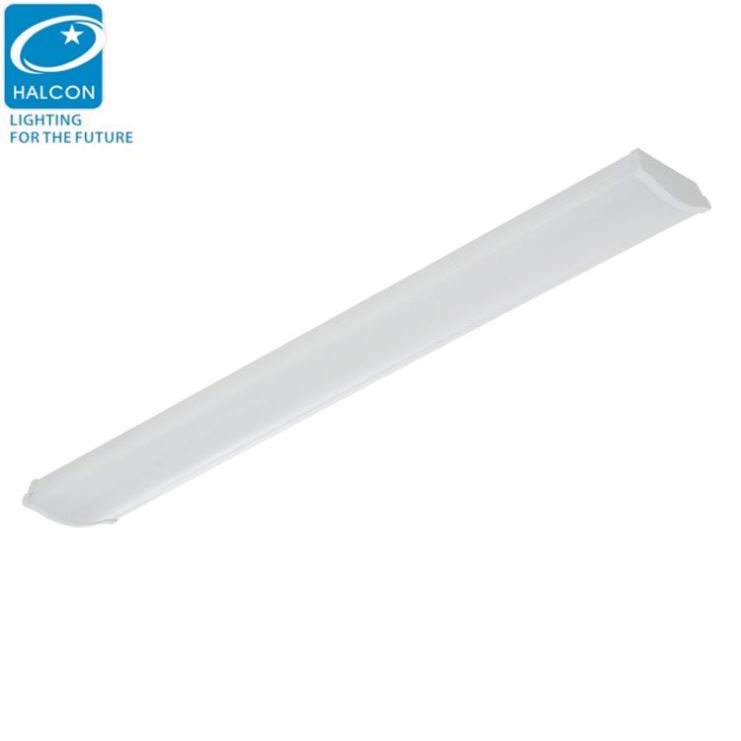

Picture of industrial fluorescent lighting fitting:
Product dimension of industrial fluorescent lighting fitting:
| Model | Lamp | Lamp Size | Package size | pcs/ctn |
| HG201-Y14x2 | T5,2x14W | 645x208x70mm | 675x385x220mm | 5 |
| HG201-Y28x2 | T5,2x28W | 1200x208x70mm | 1235x385x220mm | 5 |
| HG201-Y18x2 | T8,2x18W | 600x208x70mm | 635x385x220mm | 5 |
| HG201-Y36x2 | T8,2x36W | 1255x208x70mm | 1285x385x220mm | 5 |
Electrical:
Standard T5 and T5HO: Program start 120/277 volt integral electronic ballast or 247V VDE electronic ballast with less than 10% THD.
Each ballast provided with disconnects to meet luminaire disconnect code requirement.
Mounting:
The product is designed to install into acoustical grid and inaccessible ceilings.
Finish:
Prepainted white polyester polymer finish on expose trim;
Optional paint after fabrication available if specified.
Labels:
UL and cUL Listed, approved for dry/damp location unless otherwise noted.
Options:
-Available for installing with the Frosted Lens
-Available for installing with LED module.
-Available for installing with sensor
Photometric data:
