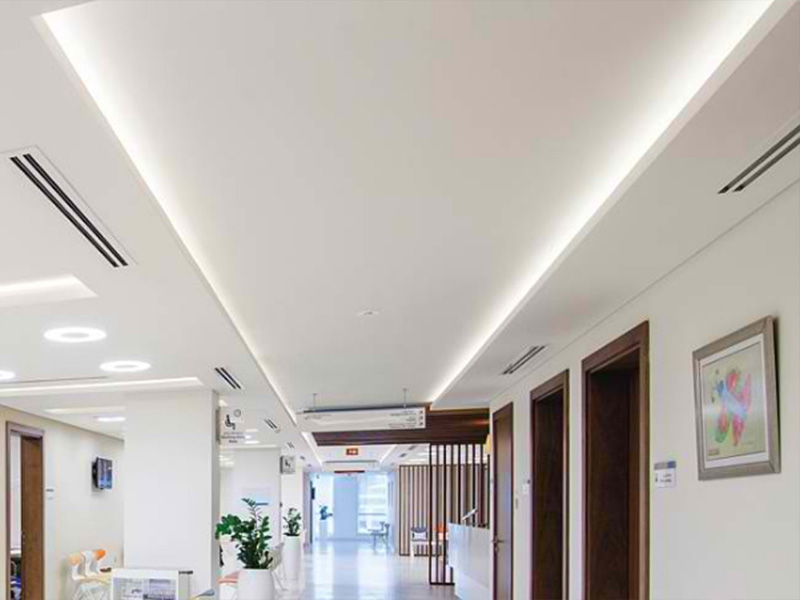

Application-1
Not only can the LED strip be powered, but also other lamps.
Brand： |
none |
Address： |
Guangdong Shenzhen |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
❈ Product description
Product Features
• No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W; <0.5W for 150W; <0.75W for 200W/350W
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Ultra compact and 1U low profile
• Withstand 5G vibration test
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection(35, 50, 75, 100, 150, 200); forced air cooling by built-in DC fan (350W)
• Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances(35, 50, 75, 100, 150)
• Operating altitude up to 5000 meters
• High efficiency, long life and high reliability
• LED indicator for power on
• Low cost
• 3 years warranty
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Ultra compact and 1U low profile
• Withstand 5G vibration test
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection(35, 50, 75, 100, 150, 200); forced air cooling by built-in DC fan (350W)
• Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances(35, 50, 75, 100, 150)
• Operating altitude up to 5000 meters
• High efficiency, long life and high reliability
• LED indicator for power on
• Low cost
• 3 years warranty
❈ Product parameters
| Model No. | LRS-35 | LRS-50 | LRS-75 | LRS-100 | LRS-150 | LRS-200 | LRS-350 | ||||||||
| Part No. | LRS-35-12 | LRS-35-24 | LRS-50-12 | LRS-50-24 | LRS-75-12 | LRS-75-24 | LRS-100-12 | LRS-100-24 | LRS-150-12 | LRS-150-24 | LRS-200-12 | LRS-200-24 | LRS-350-12 | LRS-350-24 | |
| AC input voltage range | 85~264VAC; 120~370VDC | 115 / 230VAC by switch | |||||||||||||
| AC inrush current (max.) | Cold start,45A at 230VAC | 65A at 230VAC | 50A at 230VAC | Cold start, 60A at 230VAC | |||||||||||
| Output | 12V, 0~3A | 24V, 0~1.5A | 12V, 0~4.2A | 24V, 0~2.2A | 12V, 0~6A | 24V, 0~3.2A | 12V, 0~8.5A | 24V, 0~4.5A | 12V, 0~12.5A | 24V, 0~6.5A | 12V, 0~19A | 24V, 0~8.8A | 12V, 0~29.5A | 24V, 0~14.6A | |
| Efficiency | 86.0% | 88.0% | 86.0% | 88.0% | 89.0% | 90.0% | 88.0% | 90.0% | 87.5% | 89.0% | 87.5% | 89.5% | 85.0% | 88.0% | |
| Connection | 5P/9.5mm pitch terminal block | 7P/9.5mm pitch terminal block | 9P/9.5mm pitch terminal block | ||||||||||||
| Working temperature | -30~+70°C (refer to output derating curve) | -25~+70°C (refer to output derating curve) | |||||||||||||
| Dimension (LxWxH) (mm) | 99x 82x 30 | 99x 97x 30 | 129x 97x 30 | 159x 97x 30 | 215x 115x 30 | ||||||||||
High Reliability, Indoor Used
❈ product details
01

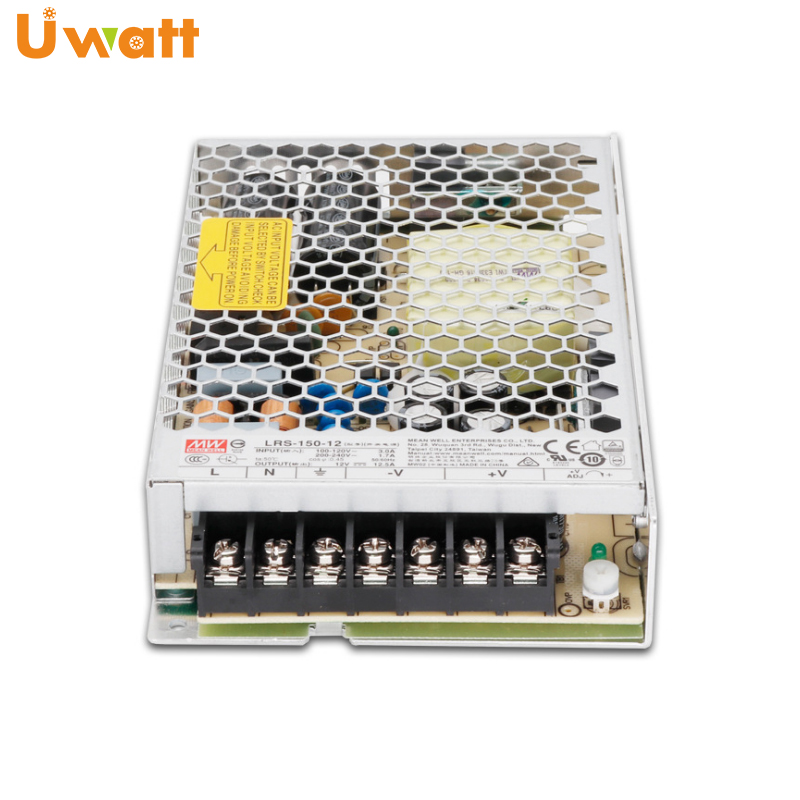

There's a switch in LRS-150, LRS-200 and LRS-350, you can adjust input voltage of them.
02
Due to high power, LRS-350 forced air cooling by built-in DC fan.
❈ product Applications

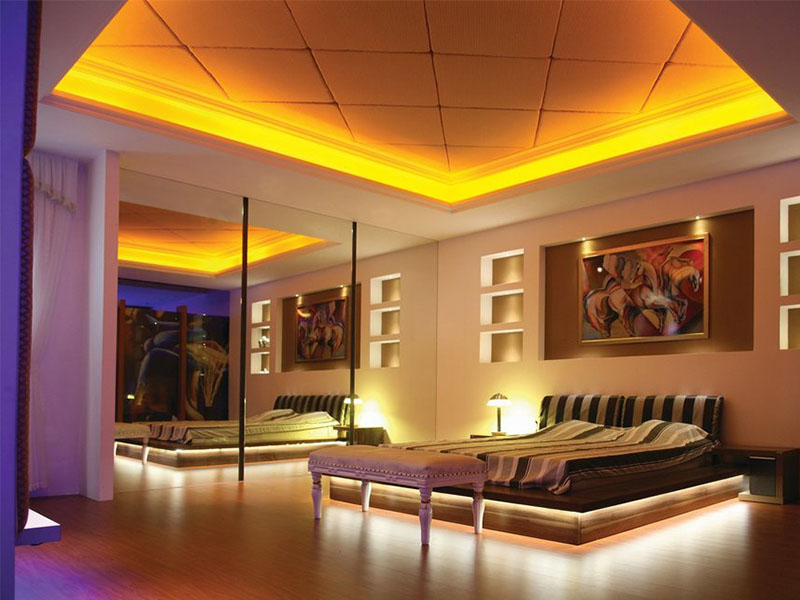

Application-2
Can only be used indoors, it is recommended to use in a well ventilated environment.
