Product Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Halcon
- Model Number:
- HG240B
- Material:
- Aluminum
- Type:
- modern
- Light Source:
- LED, LED
- Number of Lights:
- 2
- Lamp Luminous Flux(lm):
- 4400
- Working Lifetime(Hour):
- 50000
- Beam Angle(°):
- 115
- Input Voltage(V):
- 120-277
- CRI (Ra>):
- 85
- Support Dimmer:
- Yes
- Application:
- office, retail shop
- Warranty(Year):
- 5-Year
- Item Type:
- Pendant Lights
- Warranty(Years):
- 5
- Base Type:
- G5
- Working Temperature(℃):
- -20 - 40
- Lamp Power(W):
- 28
- Lamp Body Material:
- Aluminum
- Lamp Luminous Efficiency(lm/w):
- 90
- color:
- silver
- SIZE:
- 1200mm or 1500mm or longer
- Supply Ability:
- 100000 Piece/Pieces per Month
- Packaging Details
- led pendant light
- Port
- Shenzhen, Zhongshan,Guangzhou

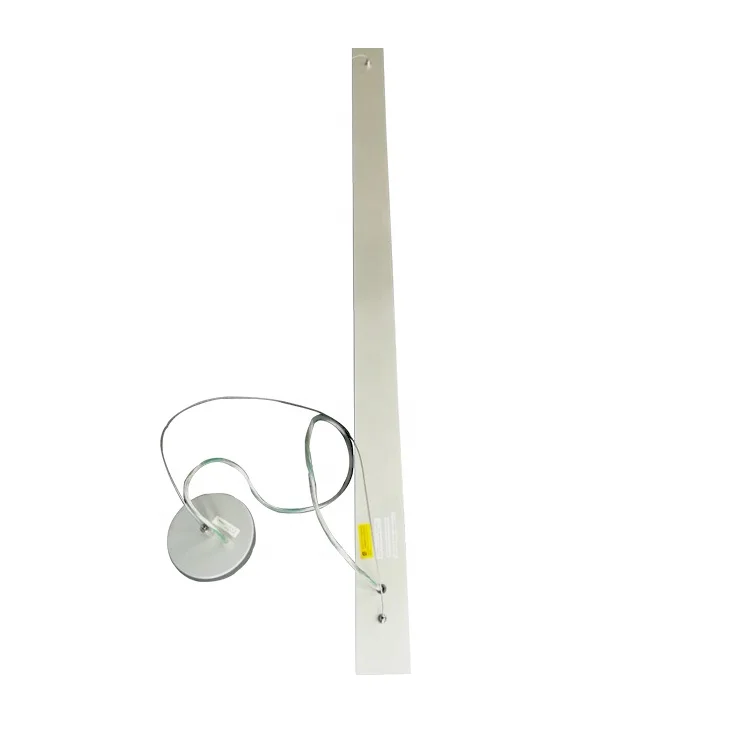

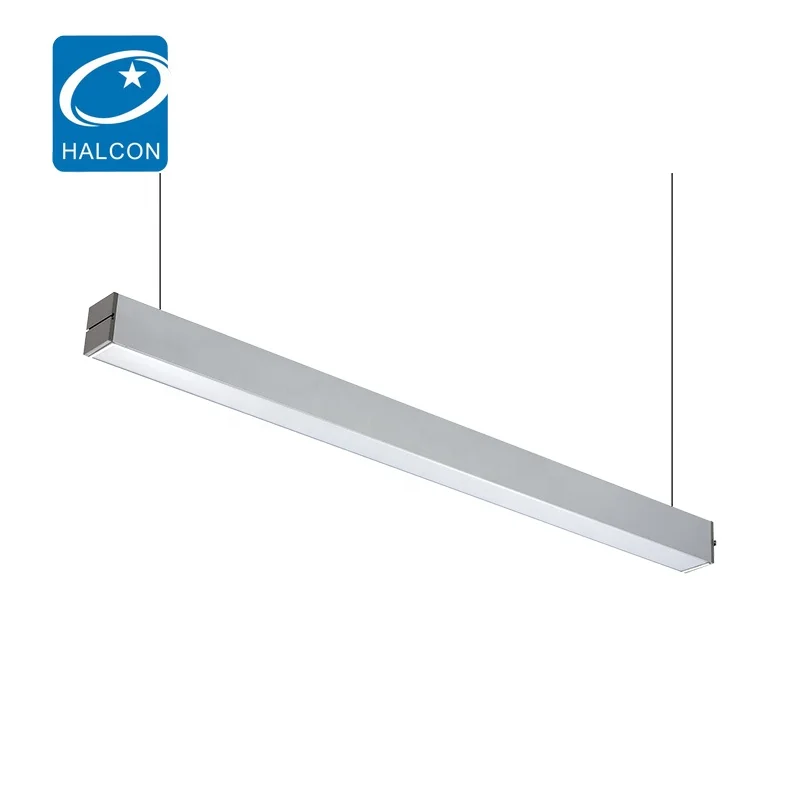

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 35 30 30 To be negotiated
High quality professional diamond light fixture
Specification of diamond light fixture:
Housing: rust-proof 1.0mm aluminum housing with anodized on surface.
Diffuser: high transfer Milk Acrylic Material.
Reflector: 320G alanod specular aluminum material with 86% reflection.
Lampholder:VDE or UL lampholder
Ballast: electronic ballast for VS, Tridonic & Advance
Lamp: T5 illuminaire
Installation: surface mounted or hanging
Picture of diamond light fixture:
Product dimension of diamond light fixture:
| Model | Lamp | Lamp size | Package size | pcs/ctn |
| HG240A-Y14x1 | T5,1X14W | 595x82x90mm | 615x285x235mm | 6 |
| HG240A-Y21x1 | T5,1X21W | 895x82x90mm | 915x285x235mm | 6 |
| HG240A-Y28x1 | T5,1X28W | 1195x82x90mm | 1215x286x235mm | 6 |
Electrical:
Standard T5 and T5HO: Program start 120/277 volt or 240V/50Hz integral electronic ballast with less than 10% THD.
Standard 55W Biax: Program start 120/277 volt or 240V/50Hz integral electronic ballast with less than 15% THD.
Standard 25W and 40W Biax: Instant start 120/277 volt or 240V/50Hz electronic ballast with less than 10% THD.
Each ballast provided with disconnects to meet luminaire disconnect code requirement.
Mounting:
The product is designed to be suspended with 1 meter stainless wire cable.
Finish:
Prepainted white polyester polymer finish on expose trim.
Optional paint after fabrication available if specified.
Labels:
UL and cUL Listed, approved for dry/damp location unless otherwise noted
Options:
-Available for installing with the Frosted Lens.
-Available for installing with LED module.
-Available for installing with sensor
Photometric data:
Applications:
Company image:
Certificate:
diamond light fixture
