Product Details
Product information

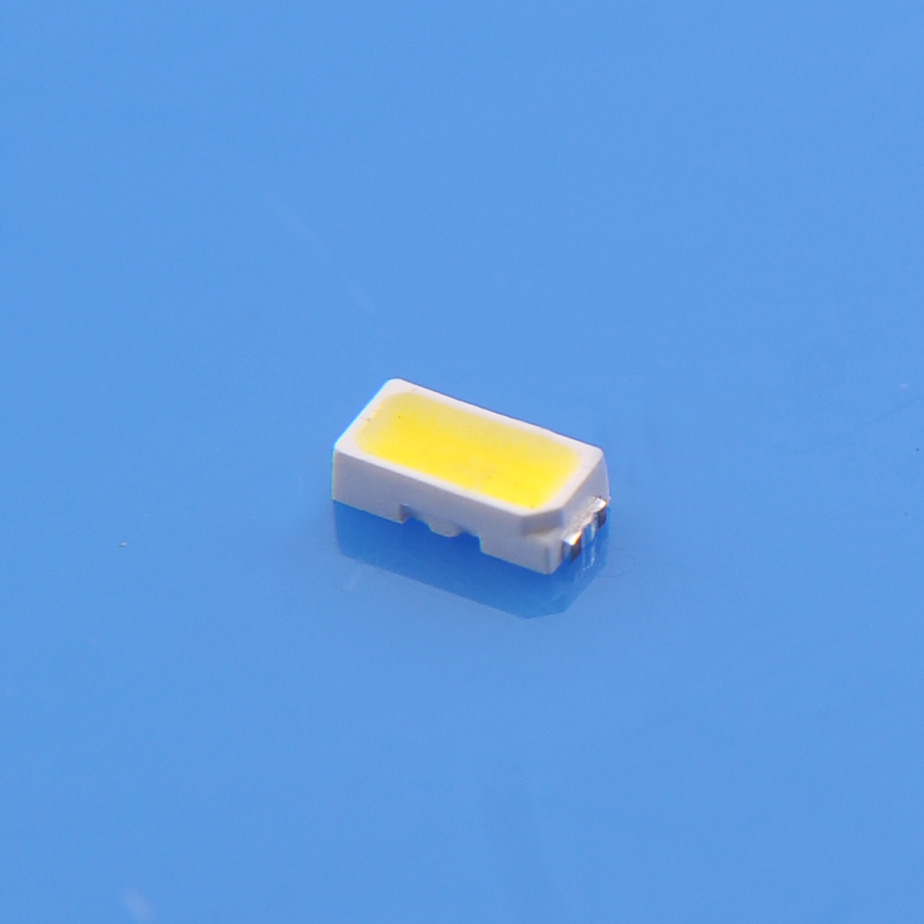

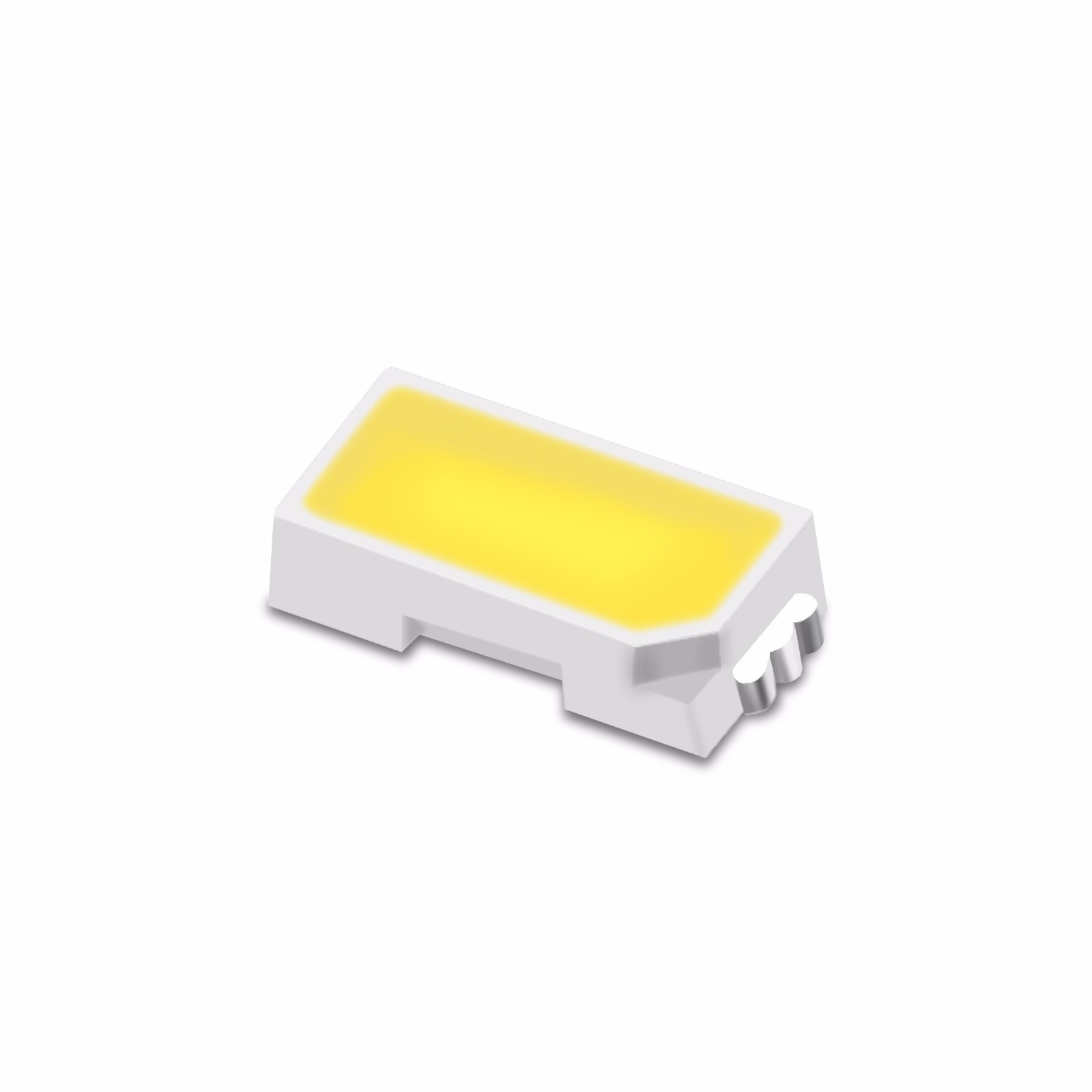

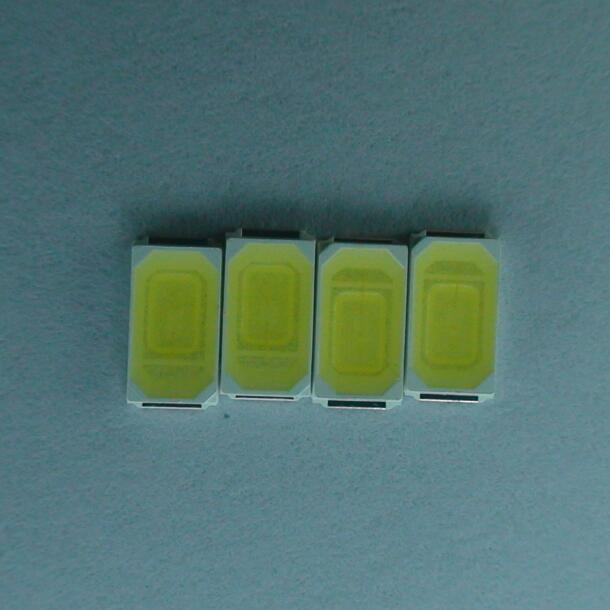

High Quality SMD3014
Product Feature
◆ Extremely wide viewing angle
◆ Long lifespan：life can up to 50,000H
◆ High luminous efficiency
◆ Suitable for all SMT assembly and solder process.
◆ Wide usage：available on tape and reel, also can used for bulb, downlight, spot light, flood light, tube, strip and advertising signboard.
◆ Moisture sensitivity level: Level 4
—— Wide usage ——

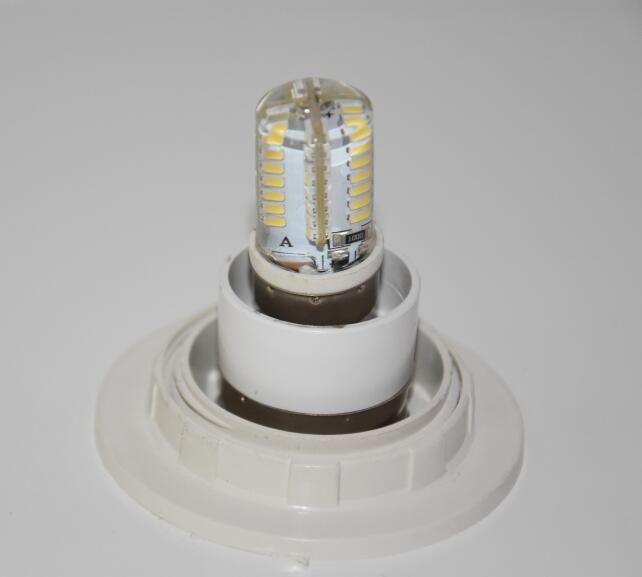

LED Corn Light

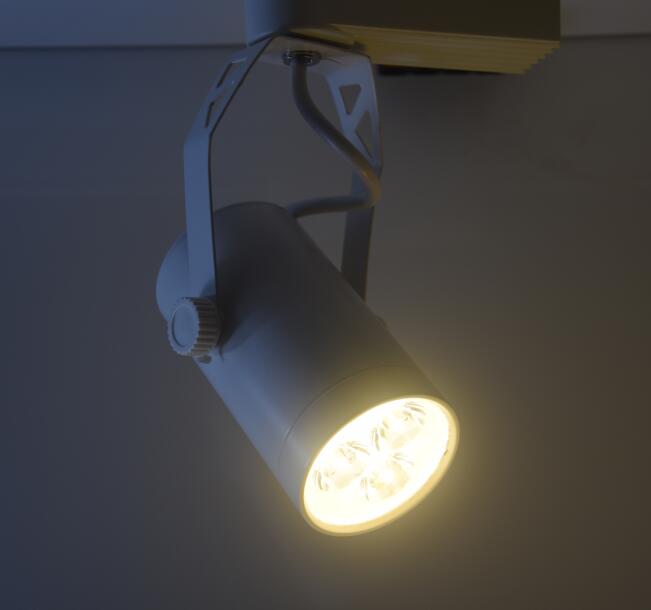

LED Track Light

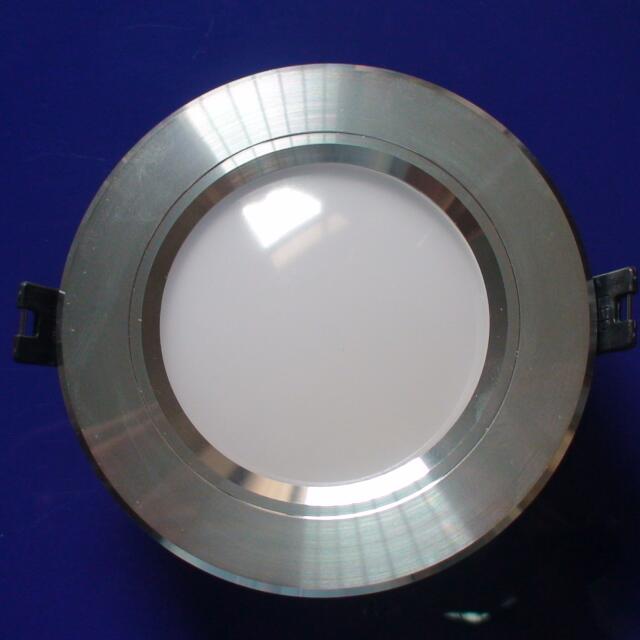

LED Down Light

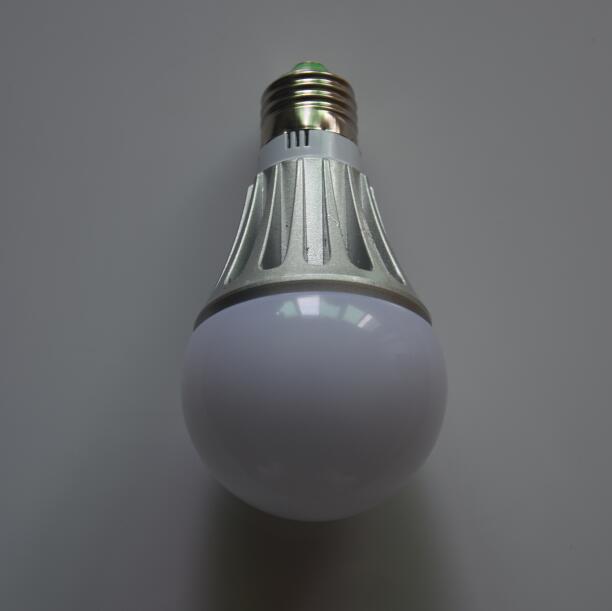

LED Bulb
LED Panel Light

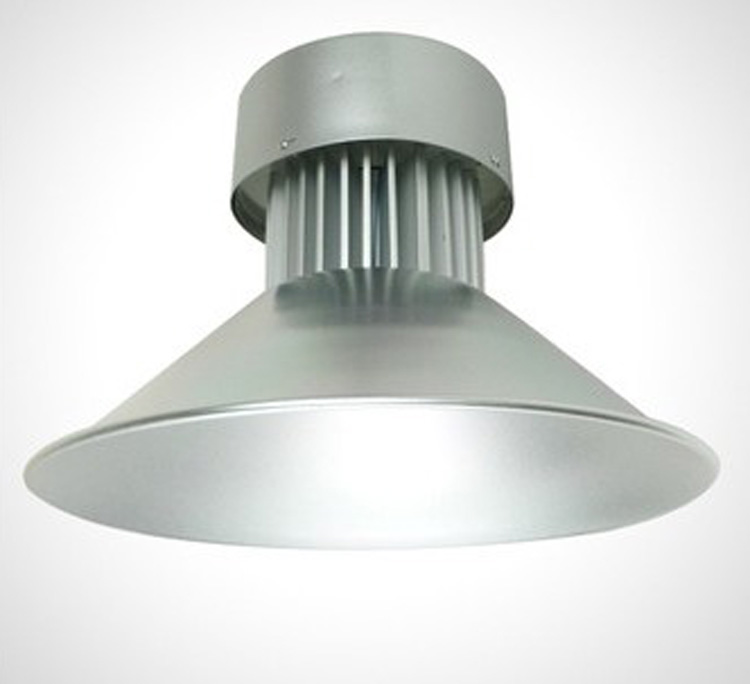

LED High Bay Light
Product Application
Advertisment Signboard
Office

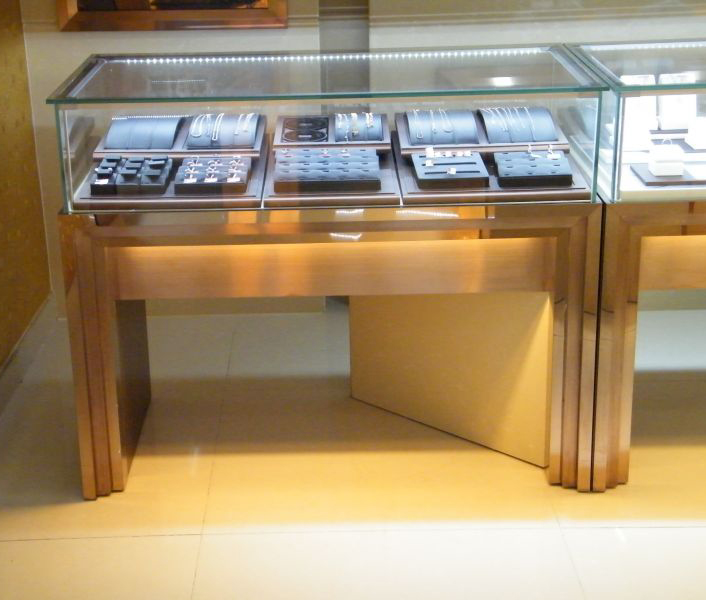

Jewelry Display
Clothes Store
Product Parameter
| Emitting Color | CCT | Luminous Flux(LM) | Forward Voltage(V) | Forward Current(mA) | Mounting Way | ||
| min | max | min | max | max | Reflow | ||
| White | 5500-6500K | 8 | 12 | 3 | 3.5 | 30 | |
| 18 | 22 | 3 | 3.5 | 60 | |||
| Warm White | 2800-3200K | 6 | 10 | 3 | 3.5 | 30 | |
| 16 | 20 | 3 | 3.5 | 60 | |||
| Natural White | 4500-4500K | 8 | 12 | 3 | 3.5 | 30 | |
| 18 | 22 | 3 | 3.5 | 60 | |||

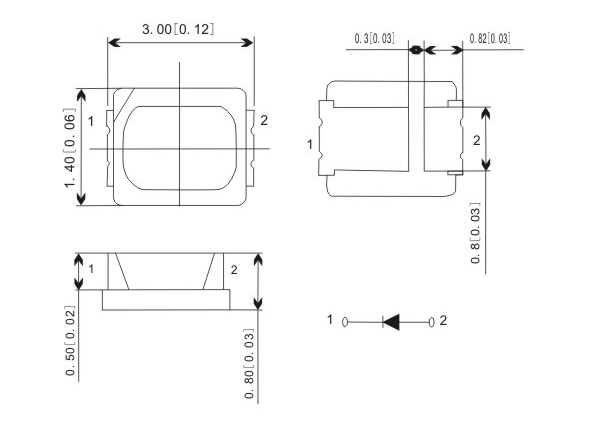

Product Dimension
Unit：mm
Tolerance：±0.1
