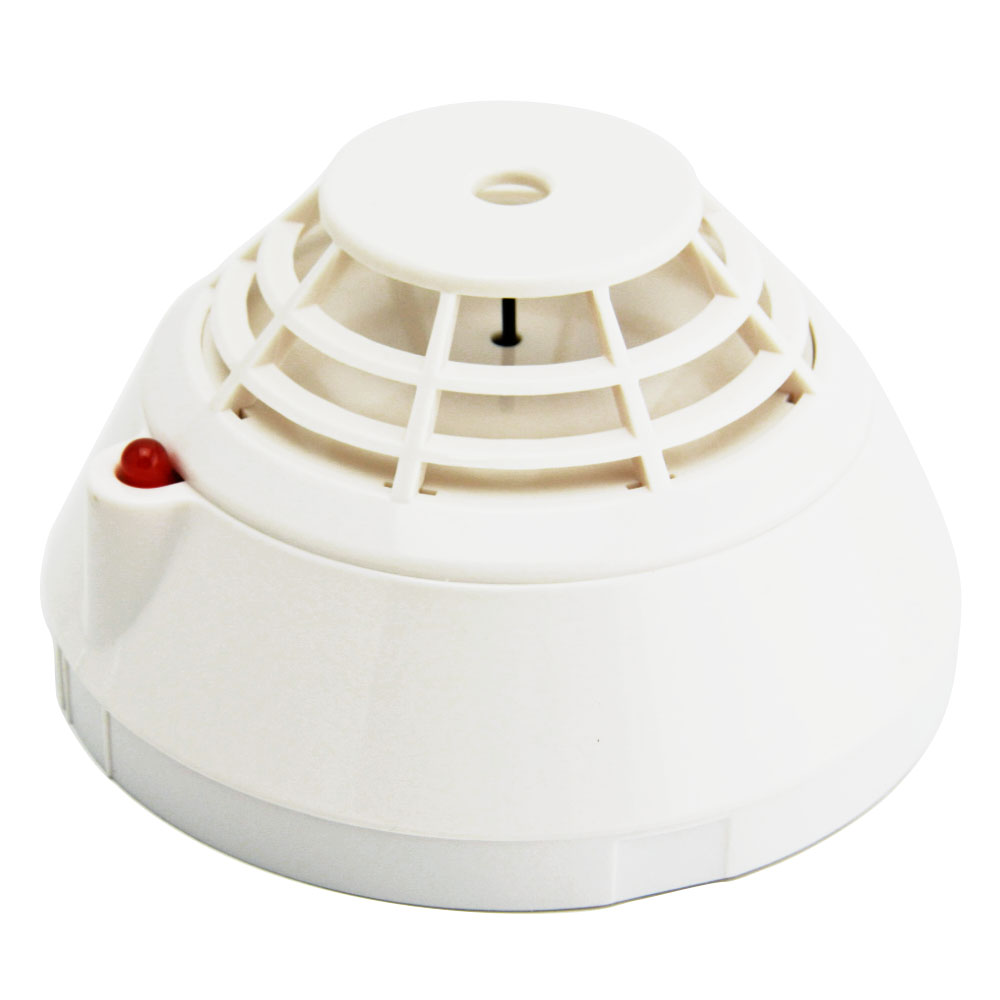

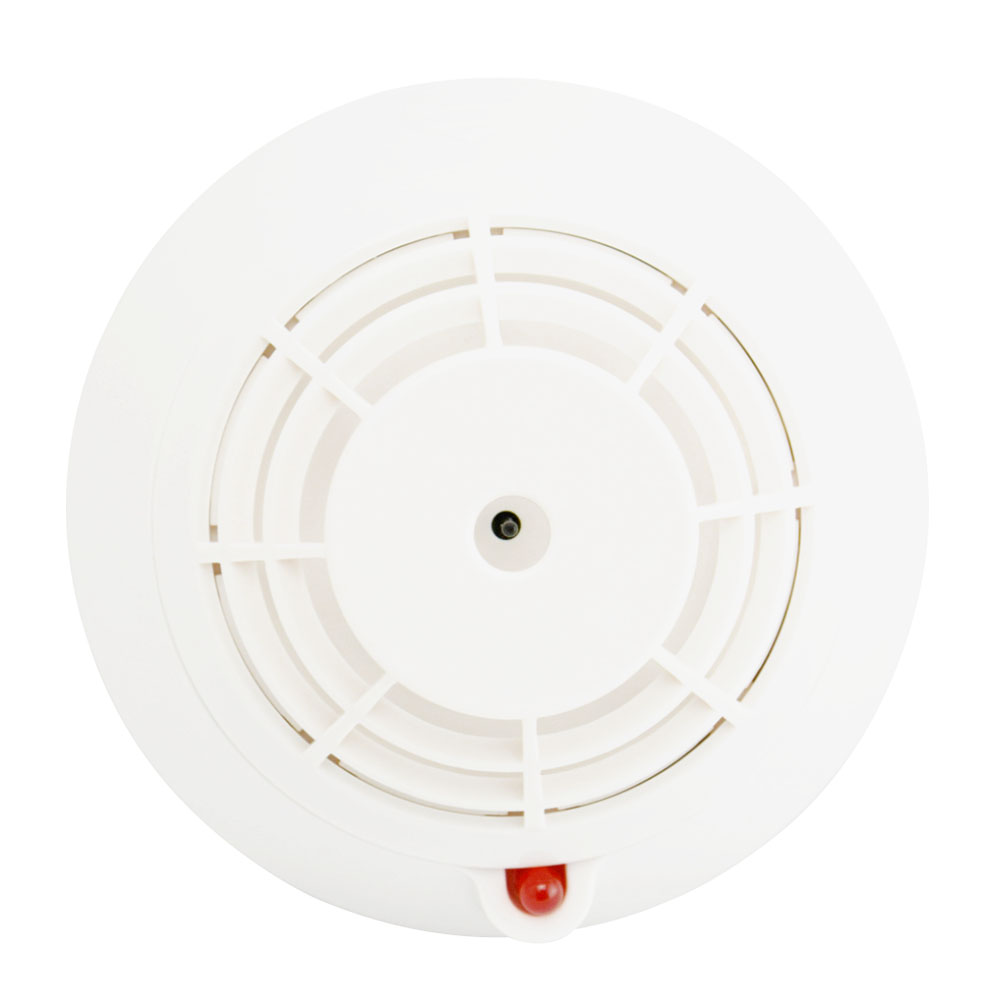

High sensitive addressable model price for heat sensor
I. Product features,
1,Within a single-chip microcomputer, it can realize real-time data acquisition and processing,
realize a curve tracing for the field situation.
2,It has a temperature compensation function and a sensor fault detection function
(fault reporting to fire alarm control panel).
3,Non-polarity, two-bus connection that ensures convenient installation and maintenance.
4,Designed with an upper cover and a lower cover and installed on an independent base,
it can be installed, debugged and maintained conveniently.
II:Technical parameters
| 1. Operating voltage: 24V (pulse modulation) |
| 2. Operating current: <300uA (monitoring status) or <1.5mA (alarm status) |
3. Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| 4. Weight: about 47g |
| 5. Product class: A2 |
| 6. External dimensions: diameter: 100mm, height: 56mm (with the base) |
| 7. Wiring method: non-polarity two-bus system (L1, L2) |
8. Operating environment: Indoor, temperature: -10℃~+50℃; relative humidity: ≤95% (40℃ ±2℃, without condensation) |
9. Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection. |
| 10. Installation height: ≤8m |
11. Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System. |
| 12. Matched host machine: fire alarm control panel (such as AW-AFP2188) |
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building Management System)
over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system, fire extinguisher,
CCTV camera and DVR, and DDC for HVAC system.
Based on our ISO9001 quality control system and our experiences in BMS and NDT, we integrated a series of
products in our E-Shop; they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design and
install for overseas projects.
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable quality before shipment.
Q2: Can I have a sample order?
B: Yes, Of course you can . we welcome sample order for your testing and checking products quality.Mixed samples are avaliable.
Q3: What is the shipping time?
C: Small Qty order needs 3-5 working days, big Qty order usually needs 10-5 working days after payments arriving.
That"s depends on order Qty.
Q4: How to proceed the order if I have logo to print?
D: We will prepare artwork for visual confirmation at first, if the color and position are alright,we will make print Logo
sample from silk print factory and take picture for you to comfire before mass production.
