These instructions should be read in full and retained after installation for future reference.
Safety
•It is recommended that thi s luminaire is installed by a qualified electrician and installed to the current edition of the IEE wiring regulations.
•Before installation or maintenance is carried out, ensure that the main supply is isolated.
Fixing Instructions
•Unlock and remove the diffuser from the base and lift away.
•Screw up the plastic fixed park to remove the LED gear tray and gain access to the terminal block. A safety chain is provided to prevent the gear tray from falling during installation.
•Then measure the position of the luminaire and ensure the fitting surface can bear the weight of the luminaire. Drill the marked holes and fit a suitable wall/ surface plug (supplied).
•Then mark the position of the luminaire to the fitting surface.
•Feed the power supply cable through the cable entry and gland, then fix the luminaire to the wall through the 4 screws.
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Type： |
Array |
Product Details

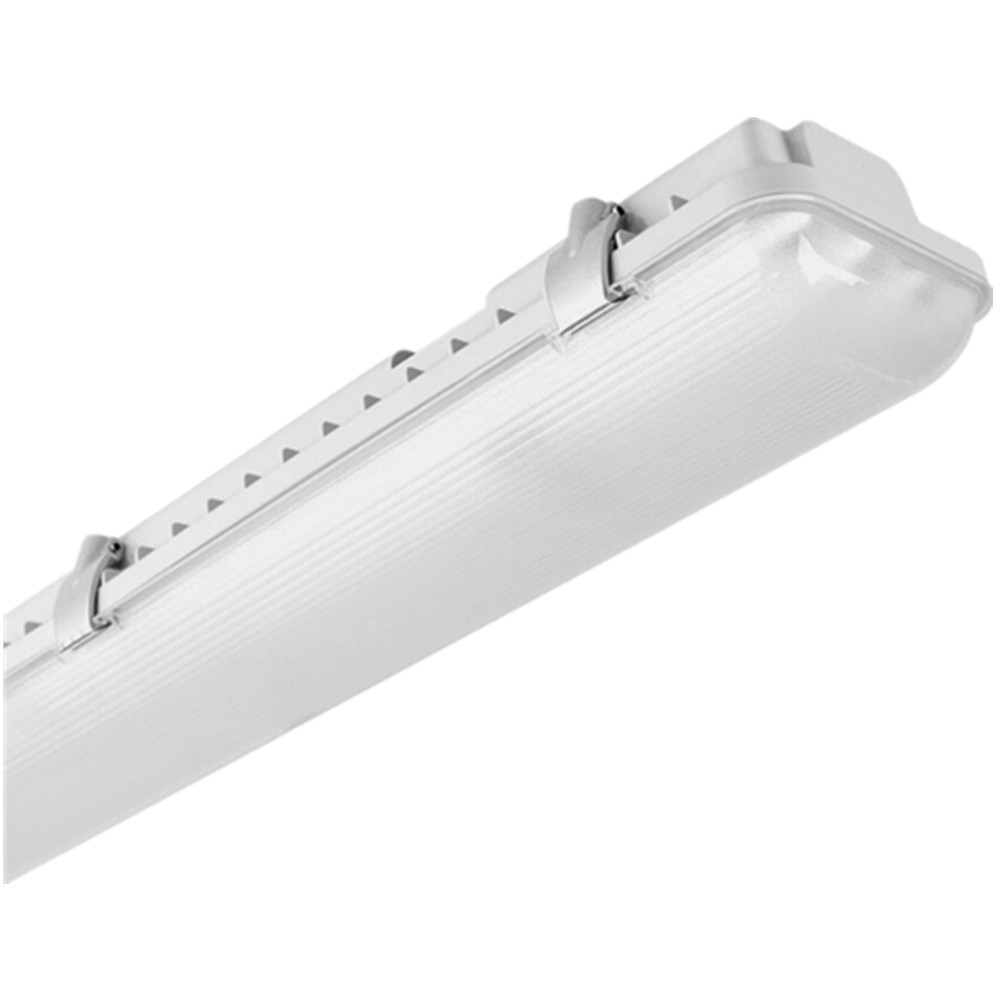

High Value Ip65 20w 40w 4ft Emergency Led Light Fixtures PCB Tri Proof Led Light
LED BATTENS Feautres and Benefits
- IP65 rating 2ft 4ft 5ft 20w 40w 50w
- IK08 impact resistance
- Corrosion proof
- Low THD + high PF + No flash
- Superb structure, excellent thermal management
- Environmental friendly, 3~5 years Warranty
- Full opaque diffuser
- Quick installation
- Tough Polycarbonate housing
- Emergency pack up >3hours with self-testing
- Microwave sensor dimming 0%, 25% and 100%-25%-0%; Sensing range 0.5-10M, Sensing time 10s-5min
- Remote control sensor available
- SAA AS2293 Ctick CE-EMC&LVD LCP ISTMT certificate
- Fit led carparks, stairs, tunnels,raiway station,warehouse...
Emergency Function Test Button.
After installation with the mains supply powered on, push the test button to test emergency function, if the LED brightness is reduced to emergency brightness (10% of full brightness), the function is working
LED Indication:
Green indicates the battery is working well.
Red indicates the battery is charging
Barracuda Install.
Our service.
OEM&ODM welcome, any your customized requires, we can help you to design and manufacture.
Quality Warranty
All products passed through the stringent professional testing, the life span up to 50000h. We have 3-5 years warranty.
Shipping Warranty
We choose the fastest and most reliable forward agent to deliver our lights. Delivery terms: Ex-works/FOB and CIF.
After-sale service Warranty
We have professional team who works on after-sale service to help you solve your technical problems. We will try our best to answer all your questions and improve the defect in the meantime.
Replacement Warranty
Any quality problems will be free 1:1 replacement or 100% refund for the defective products.
