Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: YN27C

Usage:: rock drill

Voltage:: Gasoline Engine

Power(W):: no

Dimension(L*W*H):: 746*315*229mm

Weight:: 27KG

Certification:: ISO9001

Name:: Hydraulic Rock Drill For Sale,Used Rock Drill Machine

Product name:: Hydraulic Rock Drill For Sale,Used Rock Drill Machine

Application:: Hydraulic Rock Drill For Sale,Used Rock Drill Machine

Drilling depth:: 6m

Feature:: High Drilling Efficiency

Color:: Customised

Model:: YN27C

Drilling diameter:: 26-46mm

Engine:: Air Cooled Two Strokes

Spindle Speed:: 200r/min

After-sales Service Provided:: Overseas service center available

Warranty:: 1 Year

Supply Ability

Supply Ability:: 10000 Set/Sets per Month Hydraulic Rock Drill For Sale,Used Rock Drill Machine

Packaging & Delivery

Packaging Details: wooden case

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:: within 3 working daysafterreceiveyourfull payment

Product Description

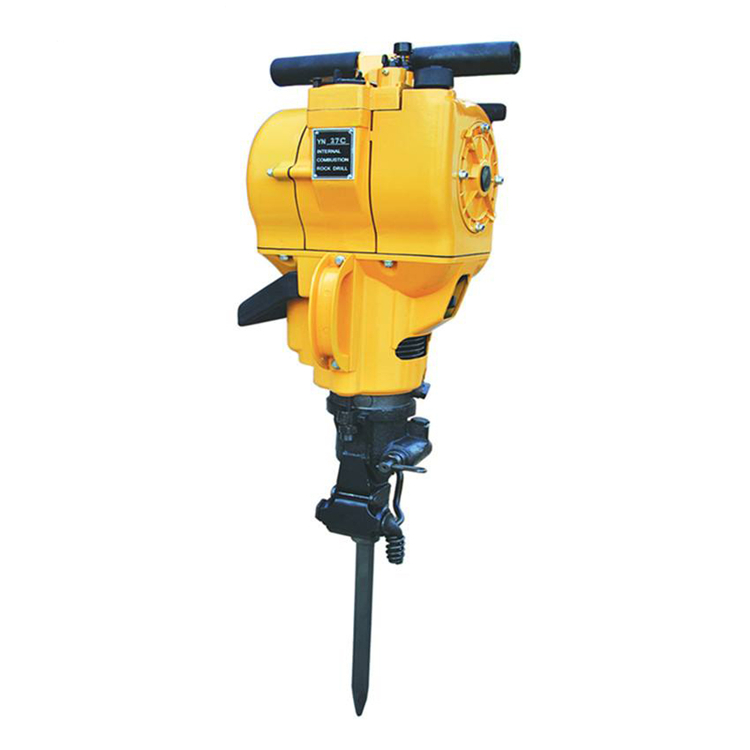

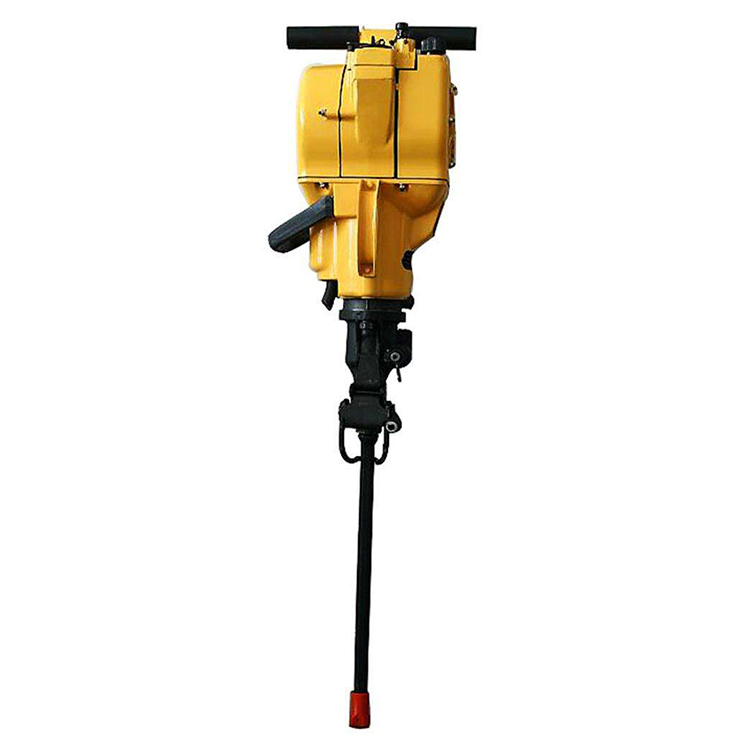

Introduction of YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling

Contact for more models and prices

YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.

Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.

The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.

Application of YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling

Available for drilling, splitting breaking, ramming, shovelling. And widely used in mining, road-construction, quarrying and national defense construction, etc.

Model	YN27C
Weight	27kg
Dimension	746315229mm
Function	Drilling
Type of carburetor	Hand needle valve, no floating type
Type of engine	Single cylinder,air cooled two strokes
Diameter of engine piston	Φ58mm
Stroke of engine piston	70mm
Rotating speed of engine	≥2450R/min
Rotating speed of drilling rod	≥250R/min
Oil consumption	≤0.12L/min
Max. drilling depth	6m
Tank capacity	≥1.14 L
Shank size	Hex22x108mm
Mixture ratio of gasoline and lubrication oil	0.500694444
