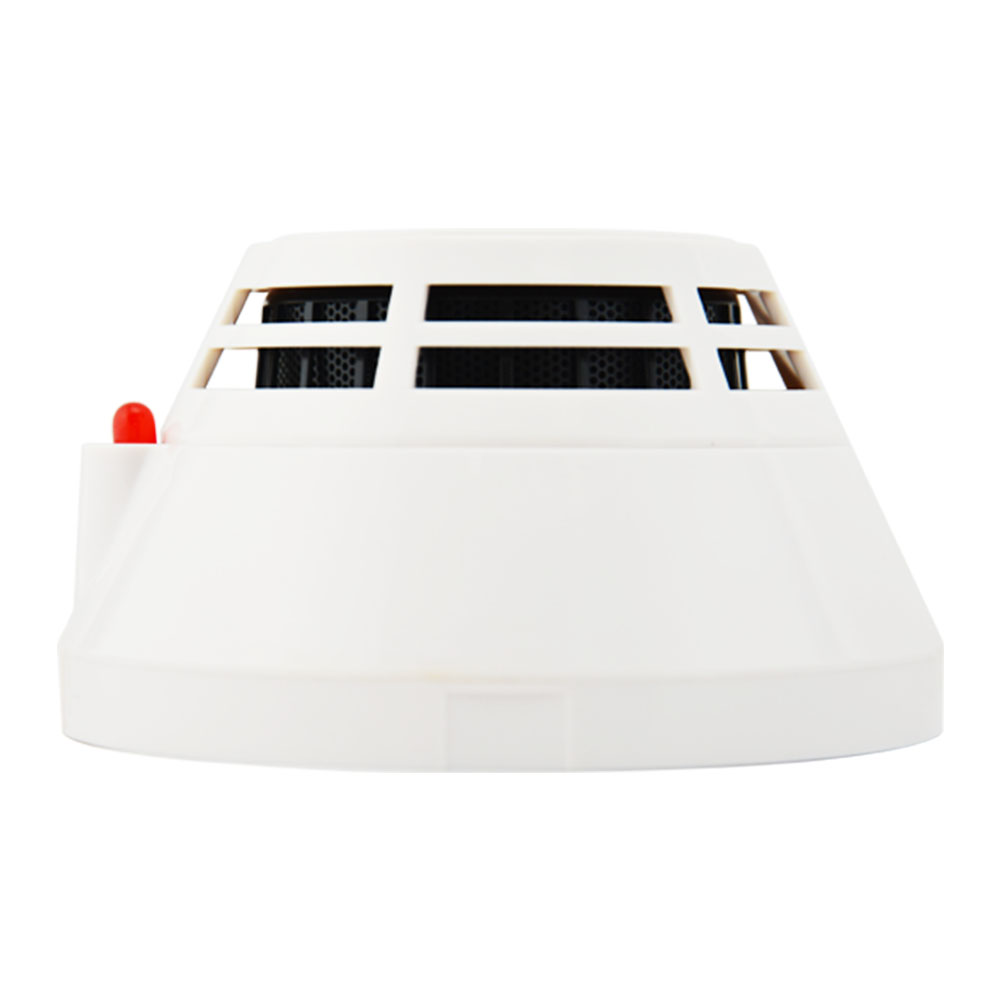

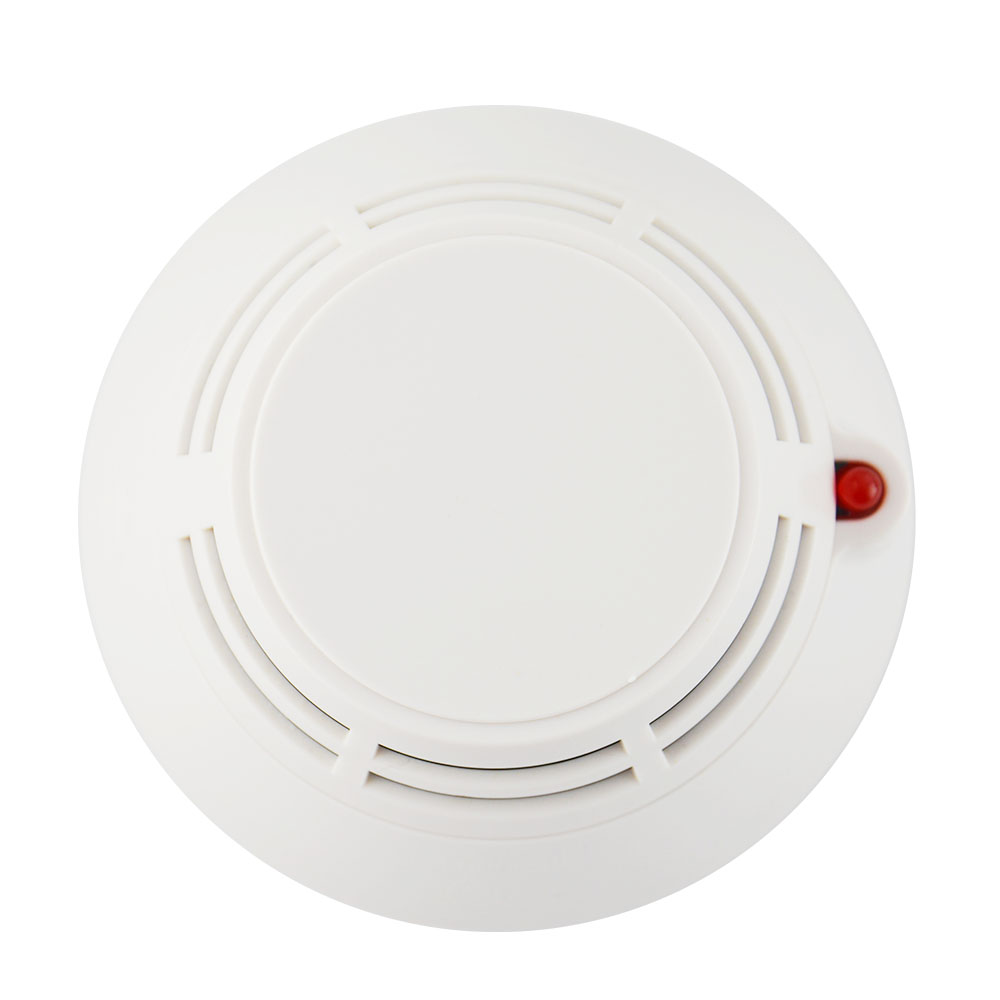

Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
Shenzhen Asenware Test And Control Technology Co., Ltd
a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company)
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.
Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
1. General Description :
a) It can realize electronic coding and rewrite the address via coder in situ.
b) Within a single-chip microcomputer, it can process the sampling data in real-time, save the latest 144 historical data and realize a curve tracing for the field situation.
c) It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
d) Non-polarity, two-bus connection that ensures convenient installation and maintenance.
e) Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
2. Function : Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
Can effectively detect fires produced smoke early and timely and reliable information on the specific location of the fire is transferred to the automatic intelligent fire alarm host.
3. Feature of addressable smoke detector :
The Merits:
a) Device is stable and reliable;
b) Device is easy to install, maintain;
c) The device can be encoded with the chip inside the device, the address code can be stored by the encoder;
d) Devices with status indicators, usually in a state when the patrol intermittently flashing red LED when smoke is detected in the alarm state, the red LED indicator light.
The Defects:
a) When the device is large, it will increase the workload of coding operations;
b) Equipment is not suitable for installation in a dusty, large vapor, moisture and other evil little extreme environments.
4. Wiring : Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
| No.1 | L1 |
| No.3 | L2 |
Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
6. Main Technical Parameters :
| Executive standard | GB4715-2005 |
| Operating voltage | 24V (pulse modulation) |
| Operating current | < 300uA (monitoring status) |
| Alarm Current: | < 1.5mA (alarm status) |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Weight | about 70g |
| External dimensions diameter | 100mm |
| Height | 55mm (with the base) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating environment | Indoor, temperature: -10°C~+55°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| Coding mode | It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection. |
| Installation | height: ≤12m |
| Protection area | 60 Square meters |
| Sensitivity | Adjustable (3 Level) |
| Wiring mode | non-polarity two-bus system (L1, L2) |
| Alarm Indicate | Red LED on |
Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
Addressable Optional Accessories:
Exhibition hall: Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
Certificates: Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
Wide Application:
1. Pre-sales: we have independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Inductor Sensor Series For Home Security Addressable Electric Smoke Detectors
1. Payment terms: T/T , L/C , Western union , Money Gram
2. Delivery time: Usually about 2 to 5 days.
3. Warranty: One year.
4. Certificate: CE ISO9001.
5. Technical support: Yes
