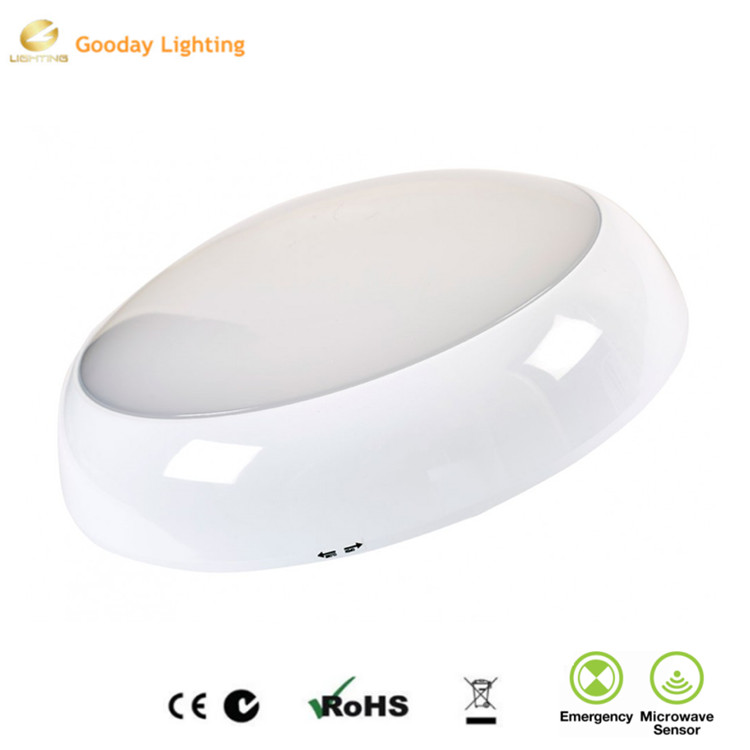

IP65 2D smart customized modern ceiling flush led light fixtures remote control motion sensor and emergency lights
Detailed Images
Product Description
| Series No | Description | Finish |
| GL1501CA | 15W Standard LED Bulkhead | white |
| GL1501SA | 15W LED Bulkhead c/w Microwave Sensor | white |
| GL1501EA | 15W LED Bulkhead c/w 3 hours emergency | white |
| GL1501ESA | 12W LED Bulkhead c/w Microwave Sensor & 3 hours emergency | white |
Product Features:
LED lighting source, green and energy saving;
IP65 bulkhead, available to replace 2D fitting;
PC housing and PC diffuser;
3 Hours emergency(option available);
Microwave/ Motion sensor:
--Automatic dims when detected area is unattended
--Adjustable range (1-8m)
c/w M20 x 1.5 IP65 Gland;
Anti-glare design: against dizzy light;
No UV, no infrared, no other hazardous substances;
No noise, no flicker, resistance from vibration;
CE&ROHS compliant;.
Three years warranty;.
Electrical parameters:
| Input voltage ( 50/60Hz) | AC 100-240V |
| Power consumption | 12W (14W for emergency versions) |
| PF | >0.9 |
| LED Driver output voltage | DC 36V |
| LED Driver output current | 300mA ±15mA |
| Light source | SMD LED |
| Color Temperature (CCT) | 3000K /4000K/ 6000K (optional) |
| CRI | Ra>80 |
| Luminous Flux | 1000-1200Lm |
| Luminous efficacy | 110Lm /W for GL1201CA 110Lm /W for GL1201SA 100Lm /W for GL1201EA 100Lm /W for GL1201ESA |
| View angle | 110° |
| Housing material | PC housing , PC diffuser |
| IP Rating | IP 65 |
| Life Span | Up to 50,000 hours |
| Operation temperature | -20degC to 45degC |
| Dimension | Φ325*100mm |
| Package | 330*330*110mm |
| Net Weight | 1.8KG(approx) |
| Emergency: | |
| Type | Maintained |
| Battery(High-Temperature) | 9.6V 1600MAH Ni-MH rechargeable |
| Emergency output | 30% nominal power |
| Emergency duration | >3 Hours |
| Charge time | < 12Hours |
| LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
| Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
| Microwave Sensor: | |
| Sensor range | 180 degree; 0.5 - 8M(adjustable) |
| Sensing interval | 10s to 5min max (adjustable) |
| Sensing interval output | 25% of nominal power |
