Share
Brand： |
none |
Address： |
Guangdong Foshan |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details

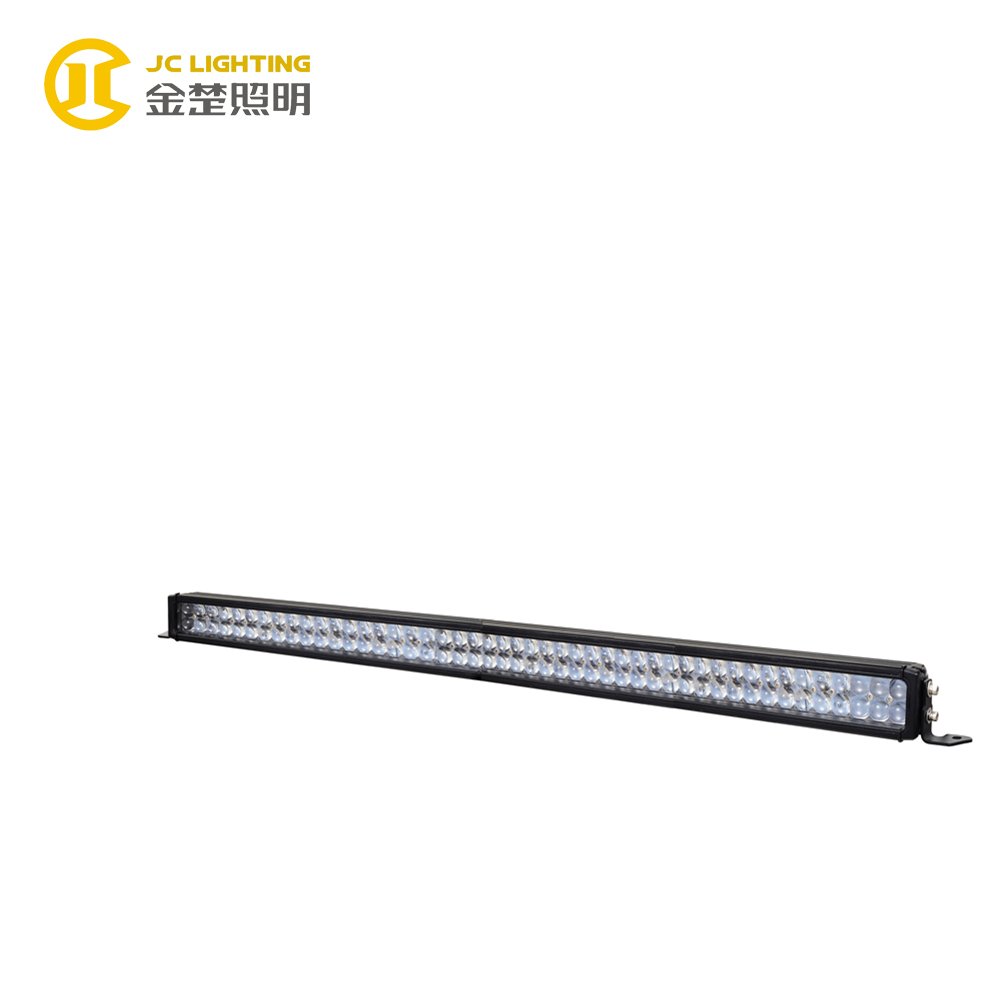

| Model | JC03218A - 288W |
| Watt | 288 W |
| Voltage | 9~32V DC |
| LED | 96*3W Cree LED |
| Material | Die-cast aluminum housing, PC lens |
| Size | 1134*70*82 mm (45 inch) |
| Raw Lumens | 24768 LM |
| Optional Beam | Spot/Flood/Combo/Big projector |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
Other single row LED light bars, please refer to JC10118A series page.
For the whole series of 3W LED light bar, please check here: JC03218A series.
JC03218A LED Light Bar Series
| MODEL | INCH | LED (PCS) | WATT | SIZE (MM) | IMPUT VOLTS |
| JC03218A-36W | 7" | 12 | 36W | 162*70*60 | 9-32V |
| JC03218A-72W | 12" | 24 | 72W | 300*70*60 | 9-32V |
| JC03218A-108W | 18" | 36 | 108W | 438*70*60 | 9-32V |
| JC03218A-144W | 23" | 48 | 144W | 576*70*60 | 9-32V |
| JC03218A-180W | 28" | 60 | 180W | 714*70*60 | 9-32V |
| JC03218A-216W | 33.5" | 72 | 216W | 852*70*60 | 9-32V |
| JC03218A-252W | 39" | 84 | 252W | 990*70*60 | 9-32V |
| JC03218A-288W | 45" | 96 | 288W | 1128*70*60 | 9-32V |
| JC03218A-324W | 50" | 108 | 324W | 1266*70*60 | 9-32V |
> Double Row LED light bar 288W use Cree LED chip.
> 3mm GE PC lens from USA, same material as high speed rail windshield.

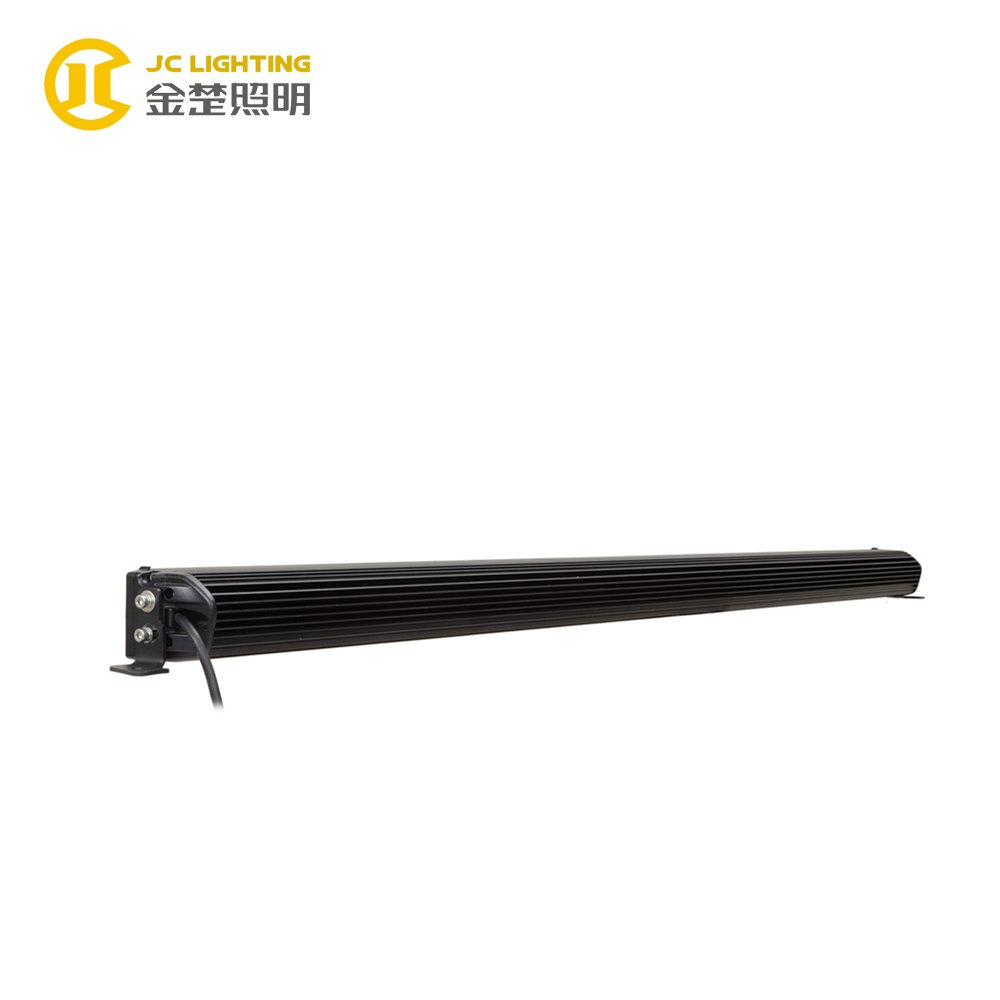

> Vertical fins maximize heat dissipation, advanced heat sink designed to prolong the life of the LEDs.
> The 18W LED light bar output is simply phenomenal, they produce a mass of clean white daylight (6000K).
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket. The bracket is easy to install.
> 1 year warranty, CE, RoHS, IP67, EMC approved.
