Product Details

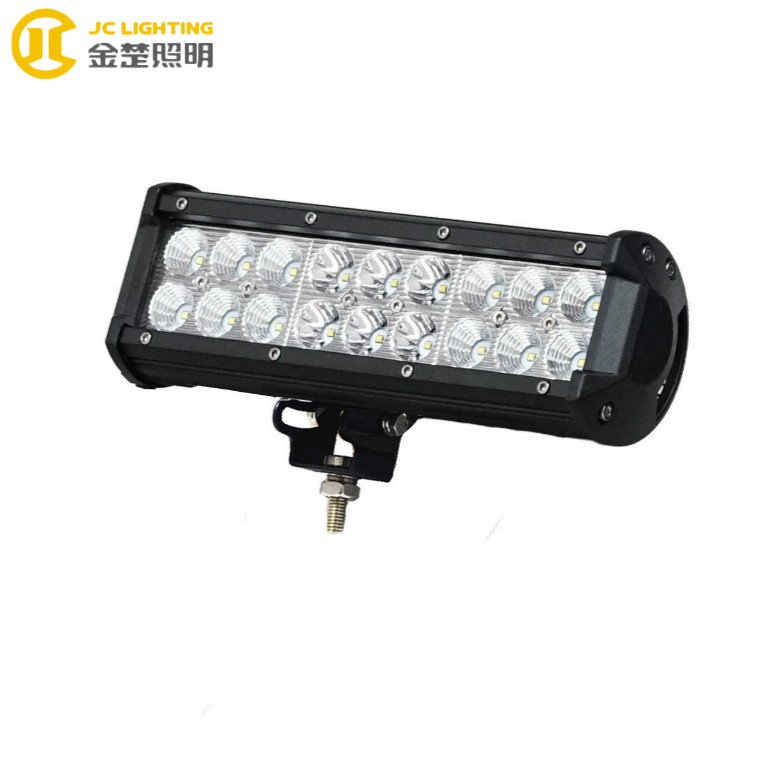

| Model | JC03218B-54W |
| Power | 54W |
| Input Voltage | 9~32VDC, as well 12V &24V. |
| LEDs Chip | Crees chip (Made in USA) |
| Lumen | 100LM/W |
| Material | Die-cast aluminum housing |
| LEDs | 18 PCS*3W Crees chip |
| Optional Beam | Spot/Flood |
| Size(mm) | 235*73*107 mm (7 inch) |
| IP | IP67 |
| Life Time | More than 30,000 hours |
| Lens Material | PC |
| Color Temperature | 6000K |
| Working Environment | -40℃~+80℃ |
| Warranty | 1year |
| Certificate | CE,RoHS,IP67, EMC. |
For similar product, please go to JC03218A series
JC03218B LED Light Bar Series
MODEL | INCH | LED(PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | INPUT VOLTS | QTY/CTN |
| JC03218B-18W | 4" | 6 | 18W | 1800LM | 1548LM | 99*73*107 | 9-32V | 20 |
| JC03218B-36W | 7" | 12 | 36W | 3600LM | 3096LM | 167*73*107 | 9-32V | 12 |
| JC03218B-54W | 9" | 18 | 54W | 5400LM | 4644LM | 235*73*107 | 9-32V | 12 |
| JC03218B-72W | 12" | 24 | 72W | 7200LM | 6192LM | 305*73*107 | 9-32V | 12 |
| JC03218B-126W | 20" | 42 | 126W | 12600LM | 10836LM | 505*73*107 | 9-32V | 6 |
| JC03218B-234W | 36" | 78 | 234W | 23400LM | 20124LM | 914*73*107 | 9-32V | 4 |
| JC03218B-252W | 39" | 84 | 252W | 25200LM | 21672LM | 980*73*107 | 9-32V | 4 |
| JC03218B-288W | 44" | 96 | 288W | 28800LM | 24768LM | 1116*73*107 | 9-32V | 4 |
| JC03218B-324W | 49" | 108 | 324W | 32400LM | 27864LM | 1252*73*107 | 9-32V | 4 |
> High quality Cree led chips and divers to ensure the reliable performance of lamps.
> Lifespan: Over 30, 000 hours, the advanced LED light life span surpass the average bulb.
> Die-cast aluminum housing case provide a better performance in waterproof and shockproof.
> Waterproof and Anti-corrosion: marine LED light bars still works in the rain or in the harsh environments.
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket.
> Wide operating voltage range: marine LED light bar price can apply to different types of trucks,cars,and other vehicles.
> We keep developing new lights, We also can provide lighting solutions to your specially applications.
PS: 54W LED light bar support OEM/ODM.
