Brand: |
none |
Address: |
Guangdong Foshan |
Min.Order: |
none |
Supply: |
none |
Valid until: |
Long Term |
Product Details

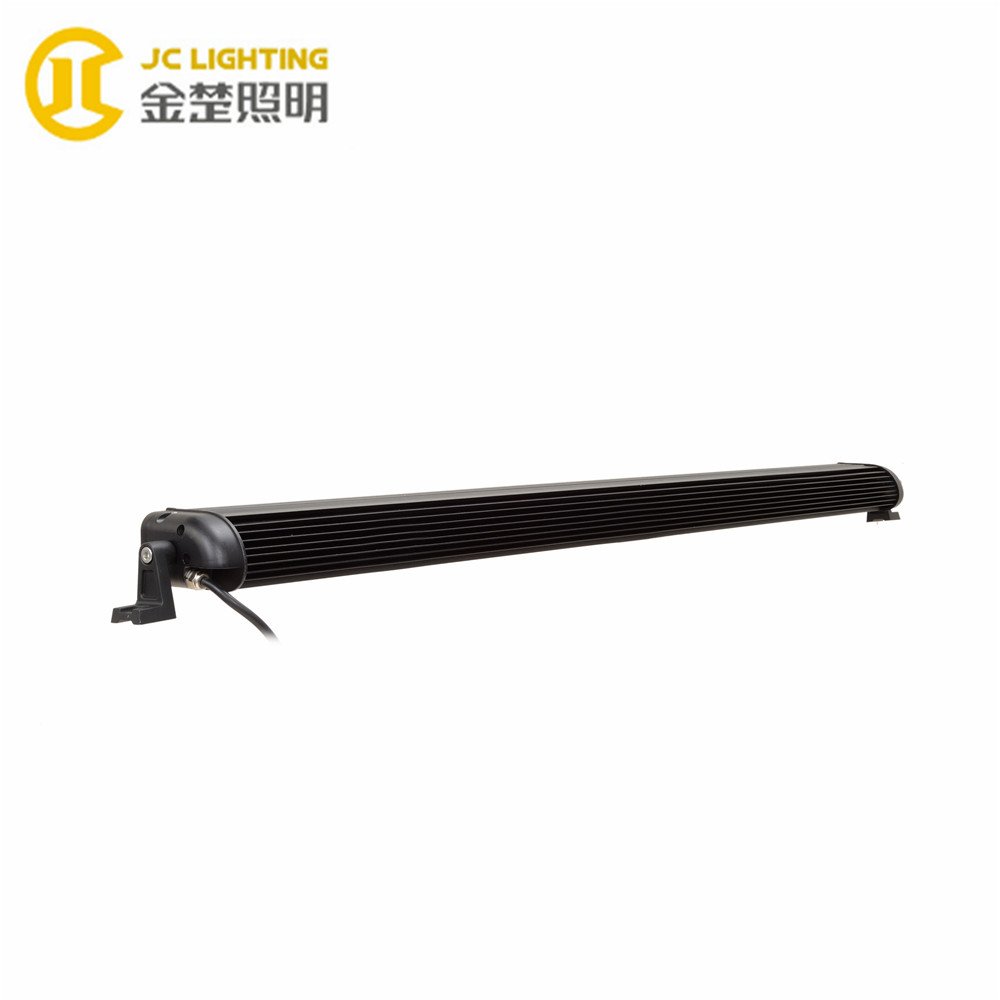

Model | JC10118A-300W |
Watt | 300W |
Voltage | 9~60V DC |
LED | 30 PCS*10W (Cree XM-L2 LED) |
Material | Die-cast aluminum housing, PC lens |
Size | 1238*60*90 mm (49 inch) |
Lumens | 25800 LM |
Optional Beam | Spot/Flood |
Dustproof & Waterproof Rating | IP67 |
Color Temperature | 6000K |
Working Environment | -40°C~+80°C |
Certificates | CE, RoHS, IP67, EMC |
Warranty | 1 year |
Life Time | More than 30,000 hours |
We also have other 300W LED light bar, here is the link: JC10118S-300W.
For the whole series of 10W LED light bar, please check here: JC10118A series.
JC10118A LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS /12V | INPUT VOLTS | QTY /CTN |
JC10118A-20W | 5" | 2 | 20W | 1720LM | 1319LM | 118*60*90 | 1.28 | 9-60V | 20 |
JC10118A-40W | 8" | 4 | 40W | 3440LM | 2640LM | 198*60*90 | 2.56 | 9-60V | 10 |
JC10118A-60W | 11" | 6 | 60W | 5160LM | 3956LM | 278*60*90 | 3.83 | 9-60V | 10 |
JC10118A-100W | 17" | 10 | 100W | 8600LM | 6594LM | 438*60*90 | 6.39 | 9-60V | 6 |
JC10118A-120W | 20" | 12 | 120W | 10320LM | 7912LM | 518*60*90 | 7.67 | 9-60V | 6 |
JC10118A-180W | 30" | 18 | 180W | 15480LM | 11868LM | 758*60*90 | 11.5 | 9-60V | 6 |
JC10118A-240W | 39" | 24 | 240W | 20640LM | 15824LM | 998*60*90 | 15.33 | 9-60V | 4 |
JC10118A-260W | 42" | 26 | 260W | 22360LM | 17140LM | 1078*60*90 | 16.61 | 9-60V | 4 |
JC10118A-300W | 49" | 30 | 300W | 25800LM | 19780LM | 1238*60*90 | 19.17 | 9-60V | 2 |
> High power super bright 10W Cree LED chips from USA, energy saving and longer life.
> Lamp cover adopted imported PC lens, high transmittance, anti high/low temperature burst.
> High quality die-cast aluminum housing, durable to withstand any harsh conditions.
> Advanced Vertical fin design for maximum heat dissipation.
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket.
> The high performance of tight waterproof, dust-proof, rust-proof, shockproof.
> 8 hours aging test.
> Extremely long lifetime of LED light bars for sale: Up to 30,000 hours.
> CE, RoHS, IP67, EMC approved.
> 1 year warranty of high power LED light bar, free replacement for defective products.
PS: Cree most powerful LED light bar support OEM, ODM!
