Product Details

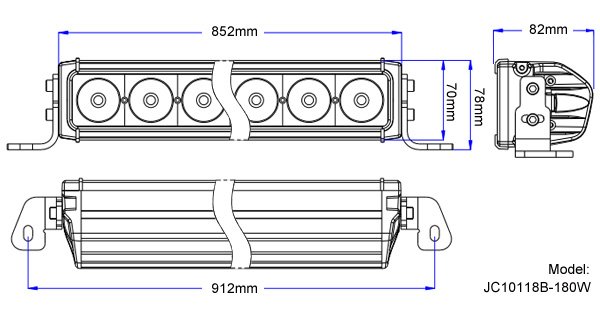

◆ Dimensional Drawing
◆ Specification
| Model | JC10118B-180W |
| Watt | 180W |
| Voltage | 9~60V DC |
| LED | 18 PCS*10W (Cree XM-L2 LED) |
| Material | Die-cast aluminum housing, PC lens |
| Size | 852*70*82 mm (34 inch) |
| Raw Lumens | 15480 LM |
| Optional Beam | Spot/Flood/Combo |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
For similar products, please go to JC05118S-180W and JC03218A-180W.
For the whole series of 10W LED light bar, please check here: JC10118B series.
JC10118B LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS/12V | INPUT VOLTS | QTY/CTN |
| JC10118B-30W | 6.4" | 3 | 30W | 2580LM | 1892LM | 162*70*82 | 1.85 | 9-60V | 12 |
| JC10118B-60W | 12" | 6 | 60W | 5160LM | 3784LM | 300*70*82 | 3.7 | 9-60V | 12 |
| JC10118B-90W | 17" | 9 | 90W | 7740LM | 5762LM | 438*70*82 | 5.55 | 9-60V | 6 |
| JC10118B-120W | 23" | 12 | 120W | 10320LM | 7654LM | 576*70*82 | 7.4 | 9-60V | 6 |
| JC10118B-150W | 28" | 15 | 150W | 12900LM | 9546LM | 714*70*82 | 9.25 | 9-60V | 6 |
| JC10118B-180W | 33.5" | 18 | 180W | 15480LM | 11438LM | 852*70*82 | 11.1 | 9-60V | 6 |
| JC10118B-210W | 39" | 21 | 210W | 18060LM | 13330LM | 990*70*82 | 12.95 | 9-60V | 4 |
| JC10118B-240W | 44" | 24 | 240W | 20640LM | 15308LM | 1128*70*82 | 14.8 | 9-60V | 4 |
| JC10118B-270W | 50" | 27 | 270W | 23220LM | 17200LM | 1266*70*82 | 16.65 | 9-60V | 2 |
◆ Advantages

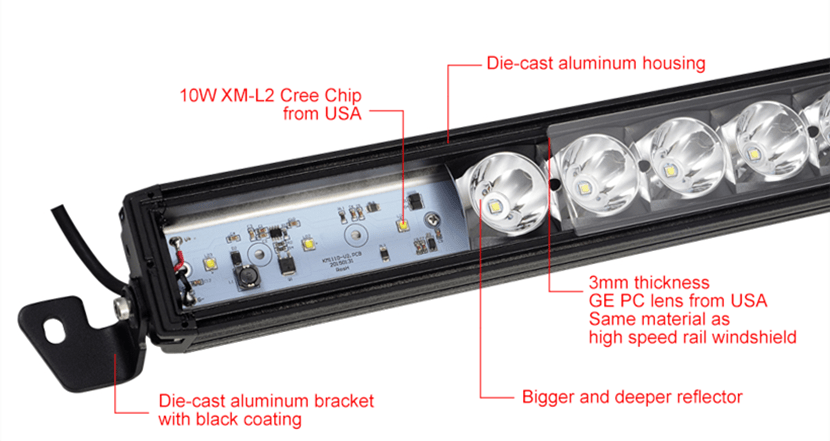

> The 180W LED light bar adopts 10W Cree chip from USA. Specially the
latest version of the LED -- XM-L2, which is the upgrade of the XM-L.
> 3mm thickness GE brand PC lens from USA, super tough. It’s the same material as high-speed windshield which is 6mm thickness.
> Deeper and wider reflector than normal light bars, which help better light output.
> With 3 mounting options of end-cap mounting, bottom mounting feet and telescopic mounting, this affordable 180W LED light bar is the ultimate lighting solution for your truck, Jeep, UTV and any other application requiring long distance projection
> 8 hours aging testing
> Brighter enough to provide you with 11438 effective lumens
> Die-cast aluminum housing, great cooling function
> 3mm thickness GE brand PC lens from USA, super tough. It’s the same material as high-speed windshield which is 6mm thickness.
> Deeper and wider reflector than normal light bars, which help better light output.
> With 3 mounting options of end-cap mounting, bottom mounting feet and telescopic mounting, this affordable 180W LED light bar is the ultimate lighting solution for your truck, Jeep, UTV and any other application requiring long distance projection
> 8 hours aging testing
> Brighter enough to provide you with 11438 effective lumens
> Die-cast aluminum housing, great cooling function
◆ Product Details
