Product Details

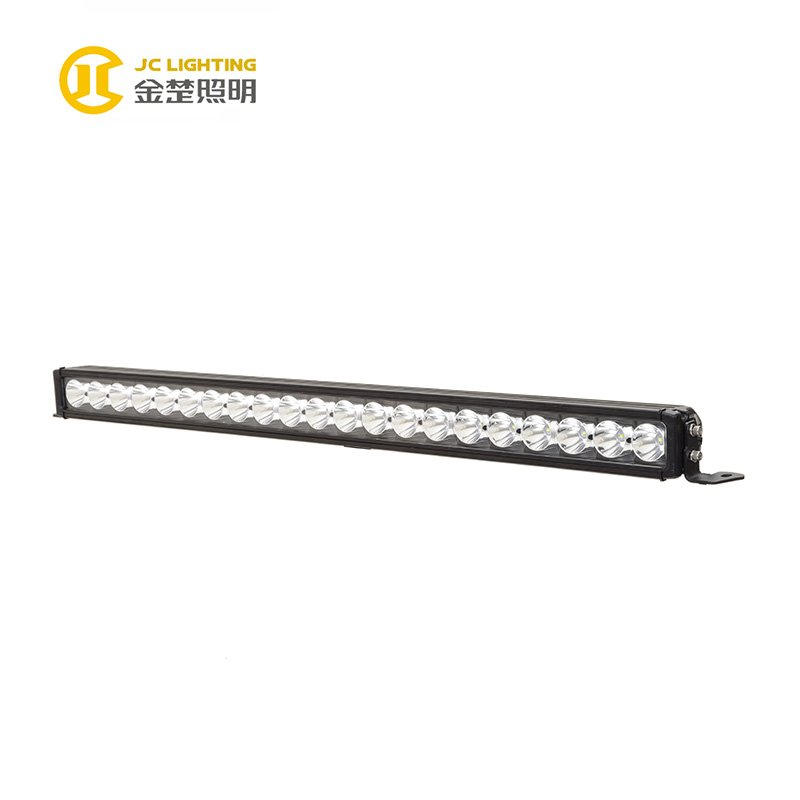

Model | JC10118B-210W |
Watt | 210W |
Voltage | 9~60V DC |
LED | 21 PCS*10W (Cree XM-L2 LED) |
Material | Die-cast aluminum housing, PC lens |

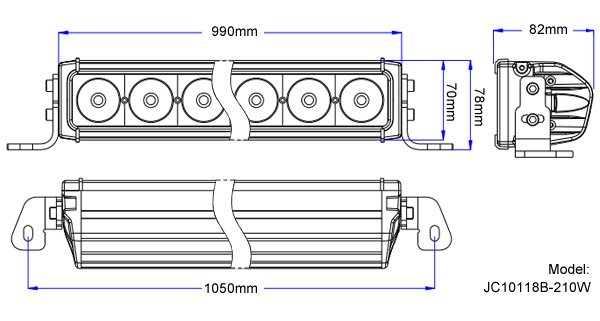

Size | 990*70*82 mm (39 inch) |
Raw Lumens | 18060 LM |
Optional Beam | Spot/Flood/Combo |
Dustproof & Waterproof Rating | IP67 |
Color Temperature | 6000K |
Working Environment | -40°C~+80°C |
Certificates | CE, RoHS, IP67, EMC |
Warranty | 1 year |
Life Time | More than 30,000 hours |
For similar products, please go to JC10418B series.
For the whole series of 10W LED light bar, please check here: JC10118B series.
JC10118B LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS/12V | INPUT VOLTS | QTY/CTN |
JC10118B-30W | 6.4" | 3 | 30W | 2580LM | 1892LM | 162*70*82 | 1.85 | 9-60V | 12 |
JC10118B-60W | 12" | 6 | 60W | 5160LM | 3784LM | 300*70*82 | 3.7 | 9-60V | 12 |
JC10118B-90W | 17" | 9 | 90W | 7740LM | 5762LM | 438*70*82 | 5.55 | 9-60V | 6 |
JC10118B-120W | 23" | 12 | 120W | 10320LM | 7654LM | 576*70*82 | 7.4 | 9-60V | 6 |
JC10118B-150W | 28" | 15 | 150W | 12900LM | 9546LM | 714*70*82 | 9.25 | 9-60V | 6 |
JC10118B-180W | 33.5" | 18 | 180W | 15480LM | 11438LM | 852*70*82 | 11.1 | 9-60V | 6 |
JC10118B-210W | 39" | 21 | 210W | 18060LM | 13330LM | 990*70*82 | 12.95 | 9-60V | 4 |
JC10118B-240W | 44" | 24 | 240W | 20640LM | 15308LM | 1128*70*82 | 14.8 | 9-60V | 4 |
JC10118B-270W | 50" | 27 | 270W | 23220LM | 17200LM | 1266*70*82 | 16.65 | 9-60V | 2 |
> Three mounting options: side mount, bottom mount and telescopic mount bracket
> This 210W illuminator can produce approximately 13330 lumens of brightness enough to clear pitch black environment.
> 9~60V multi-voltage offers you more choices

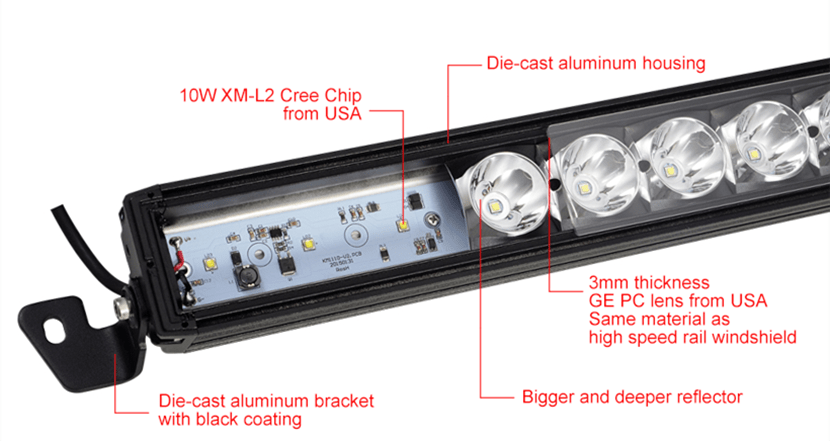

> Die-cast aluminum, extruded housing, high powered 10W XM-L2 Cree LEDs are used in this super-bright LED truck light bar to create a significant performance.
> This kind of LED lamp for truck made of durable materials, featuring with polycarbonate lens (GE brand from USA), tough die-cast aluminum housing, long lasting LEDs (Cree chip from USA) and waterproof materials.
> CE, RoHS, IP67 approved, 1 year warranty
